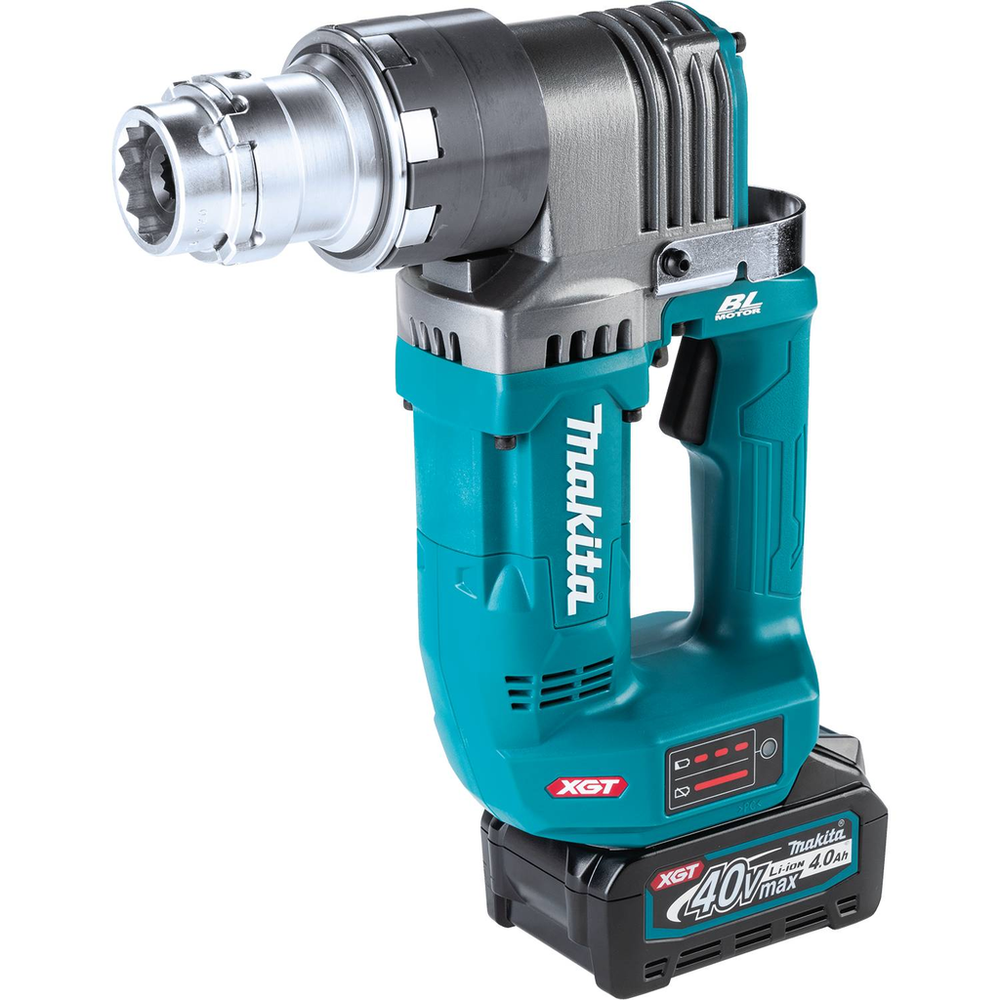

The 40V max XGT® Shear Wrench (GTW01) is a cordless fastening solution engineered for up to 14% faster fastening than corded, with 593 ft.lbs. of maximum fastening torque. It’s powered by one 40V Max XGT® battery and an efficient brushless motor for maximum power, speed, and run-time without the cord. The Shear Wrench delivers up to 250 M22 tightened torque control bolts per charge using one fully charged XGT® 4.0Ah Battery (battery and charger included in the kit). The improved design of the new GTW01 weighs up to 3.5 lbs. less than the previous LXT® model. The GTW01 features an electric brake which allows the tool to be repositioned faster for increased productivity. It features a bolt tip ejecting lever located by the power switch for easy tip disposal. The Shear Wrench also features a metal gear housing for increased durability. Convenience features include an L.E.D. battery charge indicator that alerts users of drained battery power, a shoulder strap hook for maximum portability, and a power switch with a trigger-lock button that helps prevent accidental start-ups. The GTW01 features an ergonomic "D-shaped" handle with a trigger power switch for increased comfort. The weight of the Shear Wrench is only 12.1 lbs. with a battery for reduced operator fatigue. XGT® is a system of equipment, tools, batteries, and chargers utilizing 40V max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT® is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart, and outlast the rest.
Features
- Up to 14% faster fastening than Makita corded, at 593 ft.lbs. of maximum fastening torque
- Screwdriver (783001-0)
- OUTLAST: Improved design at 3.5 lbs. lighter than the previous LXT® Model
- INCLUDES - (1) 40V max XGT® Lithium-Ion 4.0Ah battery, charger, Inner/Outer Sleeve 3/4"-M20, Inner/Outer Sleeve 7/8"-M22, Shoulder Strap, Screwdriver, and Tool Case
- 40V max XGT® Rapid Optimum Charger (DC40RA)
- Outer Sleeve, 7/8" (M22) x M39 (153909-6)
- OUTPOWER: Up to 14% faster fastening than Makita corded, at 593 ft.lbs. of maximum fastening torque
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- 40V max XGT® Lithium-Ion 4.0Ah Battery reaches a full charge in 45 minutes or less
- Tightens up to 250 M22 torque control bolts per charge using one XGT® 4.0Ah Battery
- Shoulder Strap (161347-8)

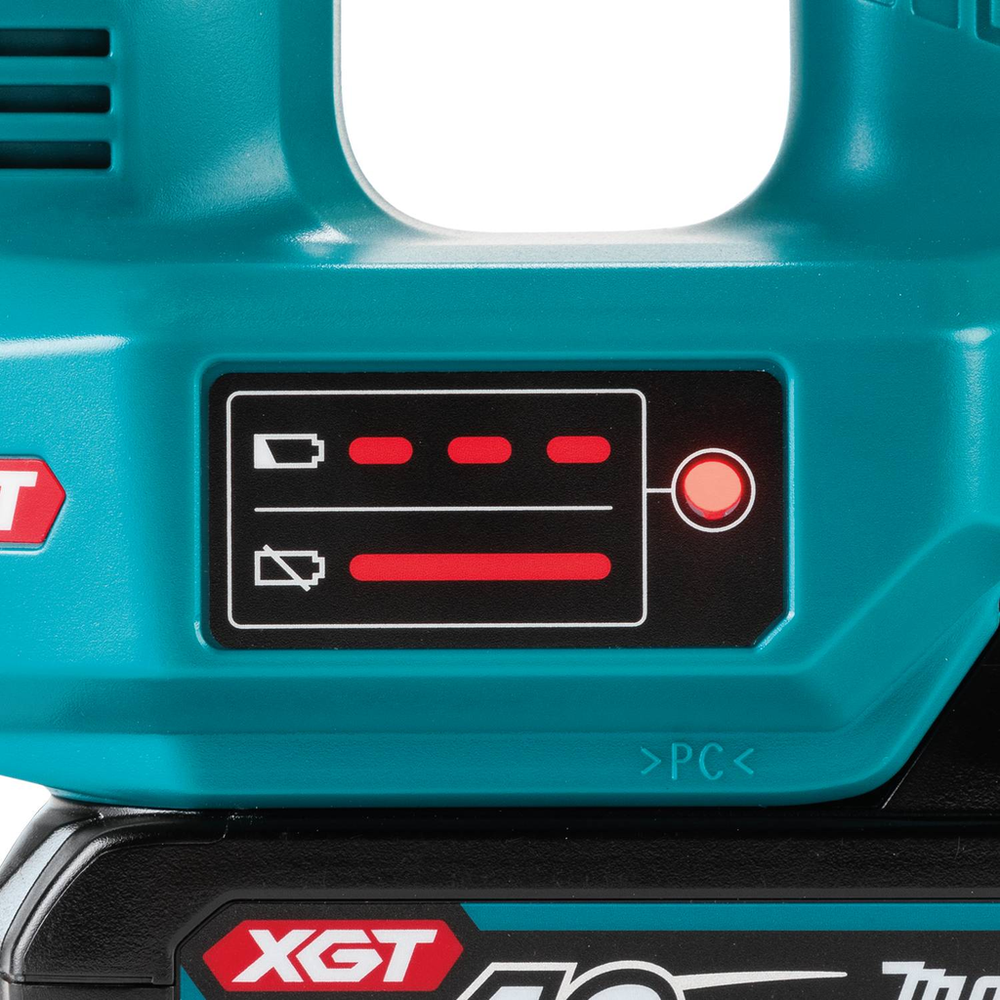

- L.E.D. battery charge indicator alerts user of drained battery power
- DESIGN - Improved design at 3.5 lbs. lighter than the previous LXT® Model
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating

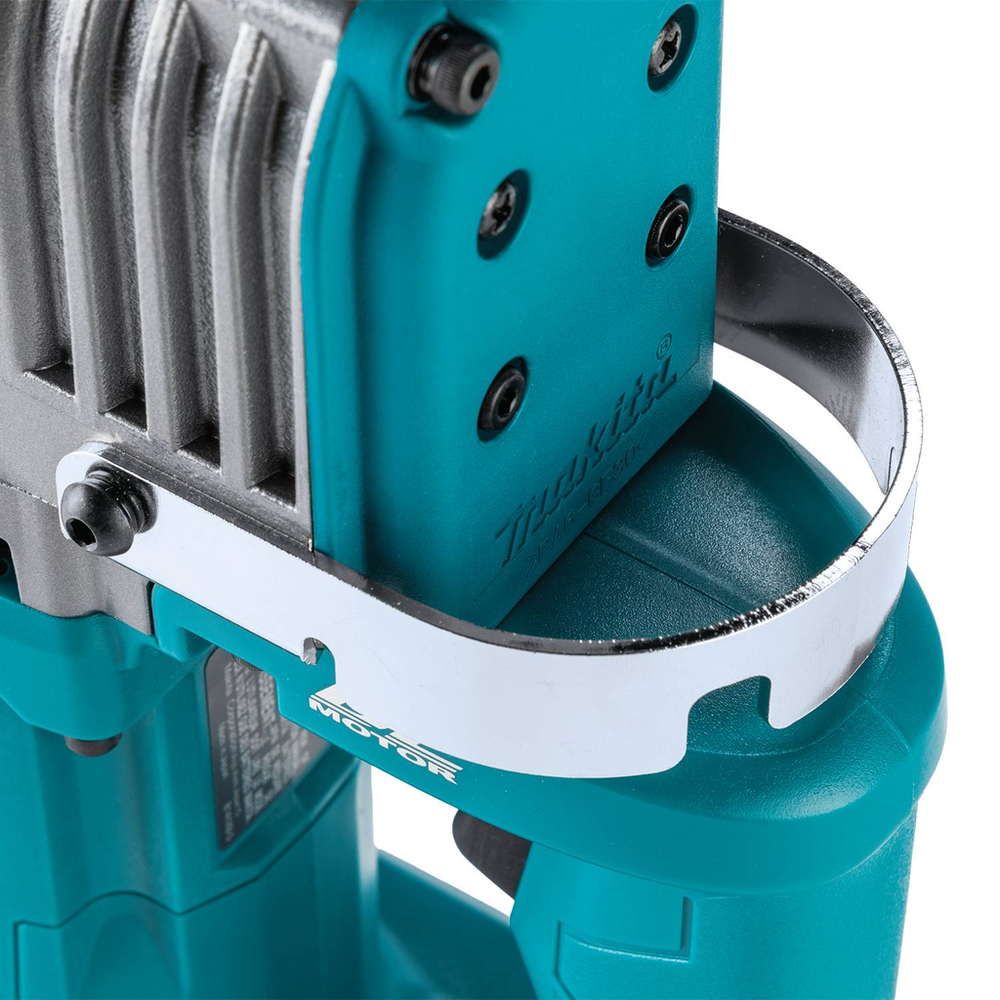

- Equipped with shoulder strap hook for maximum portability
- Weighs only 12.1 lbs. with battery for reduced operator fatigue
- RUN TIME - Tightens up to 250 M22 torque control bolts per charge using one XGT® 4.0Ah Battery
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- 3-year limited warranty on tool, battery and charger
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- POWER - Up to 14% faster fastening than Makita corded, at 593 ft.lbs. of maximum fastening torque
- Metal gear housing for increased durability
- Tool Case (821921-1)
- Outer Sleeve, 3/4" (M20) x M37 (764361-9)
- Improved design at 3.5 lbs. lighter than the previous LXT® Model
- Ergonomic "D-shaped" handle with trigger power switch for increased comfort
- EFFICIENCY - Electric brake allows the tool to be repositioned faster for maximum productivity
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- 40V max XGT® Brushless Shear Wrench (GWT01Z)
- Bolt tip ejecting lever located by power switch for easy tip disposal
- 40V max XGT® 4.0Ah Battery (BL4040)
- Inner Sleeve, 7/8" (M22) x M39 (764418-6)
- OUTSMART: Tightens up to 250 M22 torque control bolts per charge using one XGT® 4.0Ah Battery
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Power switch with trigger-lock button helps prevent accidental start-ups
- Electric brake allows the tool to be repositioned faster for maximum productivity
- Inner Sleeve, 3/4" (M20) x M38 (764419-4)
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
GTW01 Instruction Manual
