Makita

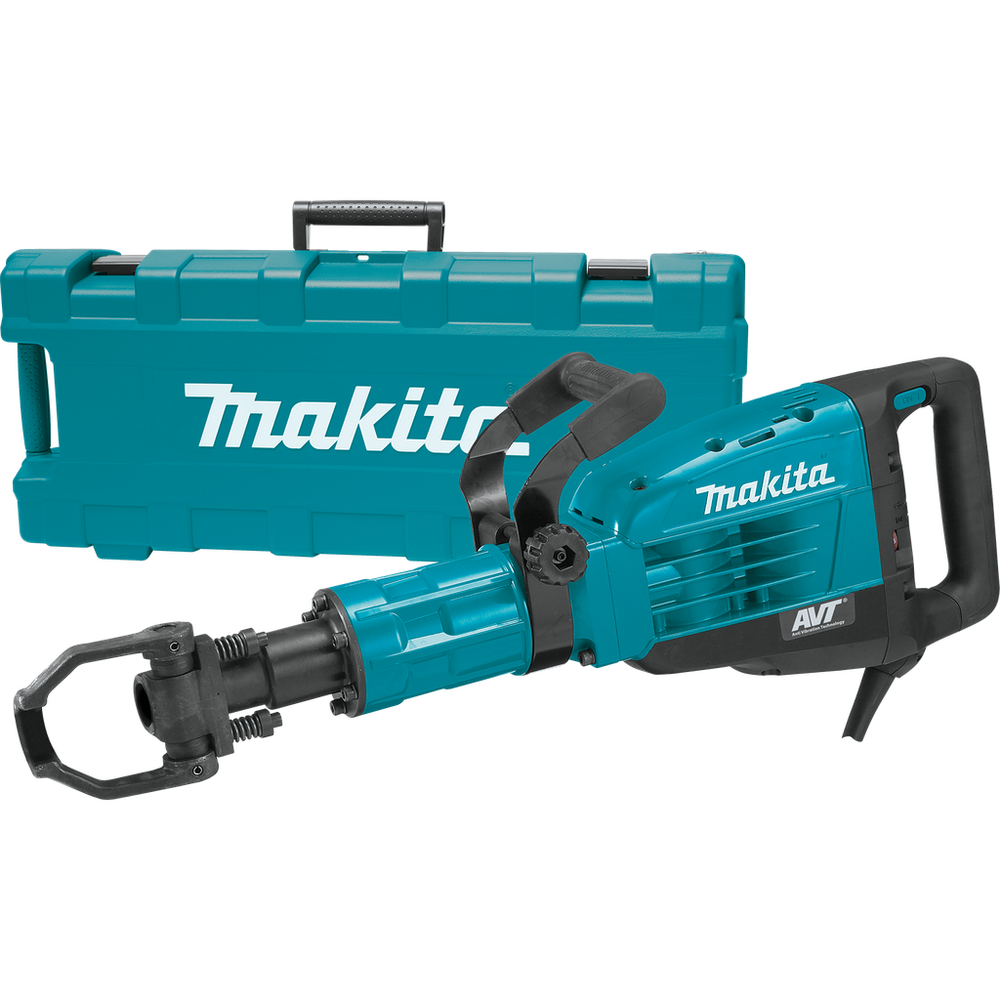

42 lb. AVT® Demolition Hammer, accepts 1-1/8" Hex bits - HM1317CB

Name: 42 lb. AVT® Demolition Hammer, accepts 1-1/8" Hex bits - HM1317CB
Brand: Makita
SKU: HM1317CB
Price: 1649 USD
Availability: InStock

SKU: HM1317CB

MPN: HM1317CB

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381604659

$1,649.00 each

Hurry up! Current stock:

Quantity:

Product Description

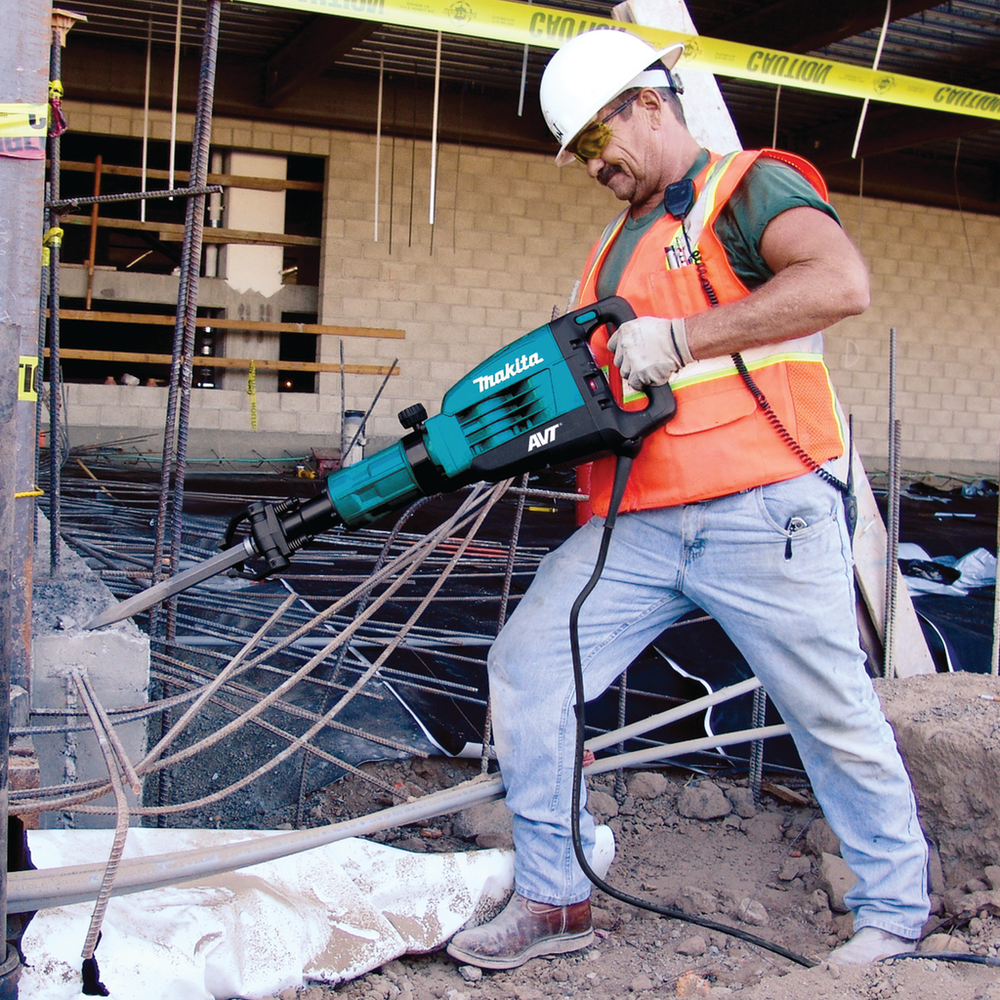

Makita's hard-hitting HM1317CB 42 lb. Breaker Hammer is engineered for heavy chipping, demolition and breaking applications, but with less vibration for increased user comfort. The HM1317CB is equipped with Anti-Vibration Technology (AVT®), an internal counterbalance system that is engineered into the tool for more effective vibration reduction. It is an ideal solution for heavy structural demolition like breaking up driveways and sidewalks, as well as for landscape and trenchwork, asphalt removal, driving ground rods, and more. The HM1317CB has a 14 AMP motor that delivers 730-1,450 BPM and 34.9 joules of impact energy. It features Makita's electronic controller so users will benefit from the soft start, as well as a variable speed control dial, an L.E.D. service light that notifies users before brushes need to be replaced, and constant speed control that automatically applies additional power to the motor to maintain speed under load for the most challenging jobs. For added convenience, the HM1317CB has a 16.4 ft. cord and accepts the popular 1-1/8" Hex bit type.

Features

Soft start suppresses start-up reaction for more precision and better accuracy
Rubberized ergonomic soft grip provides more comfort
"No hammering when idling" function helps increase tool life

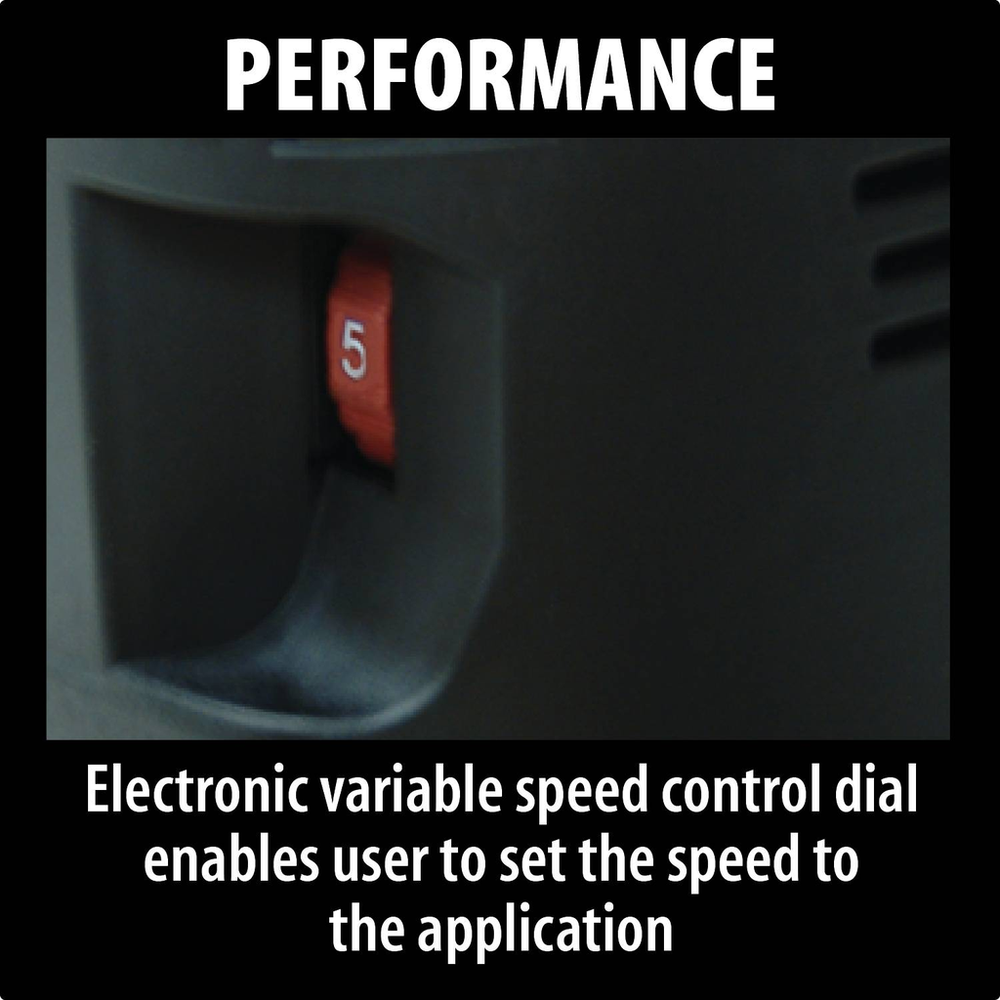

Variable speed control dial enables user to match the speed to the application for greater versatility
Easy-to-operate slide switch increases productivity and allows for continuous use
Side handle swivels 360° for greater control
L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
Powerful 14 AMP motor delivers 25.7 ft.lbs. of impact energy to handle the most demanding applications

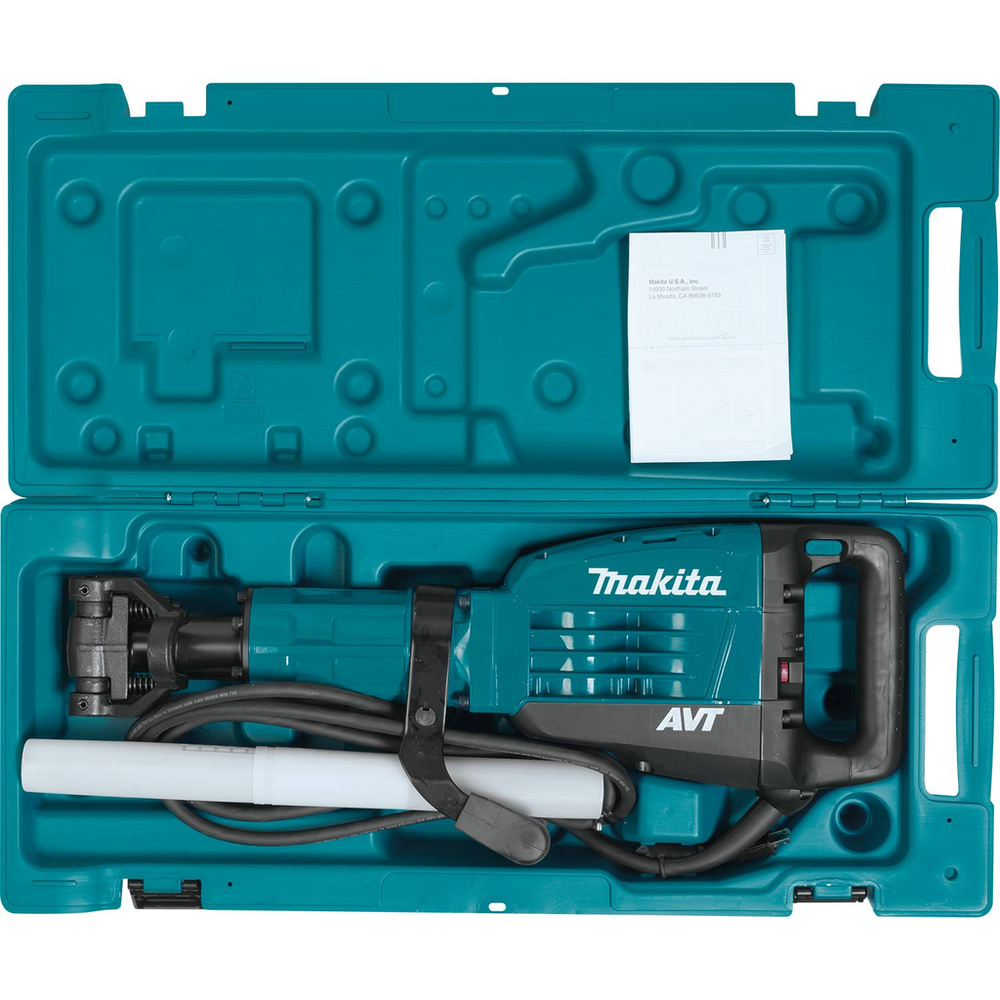

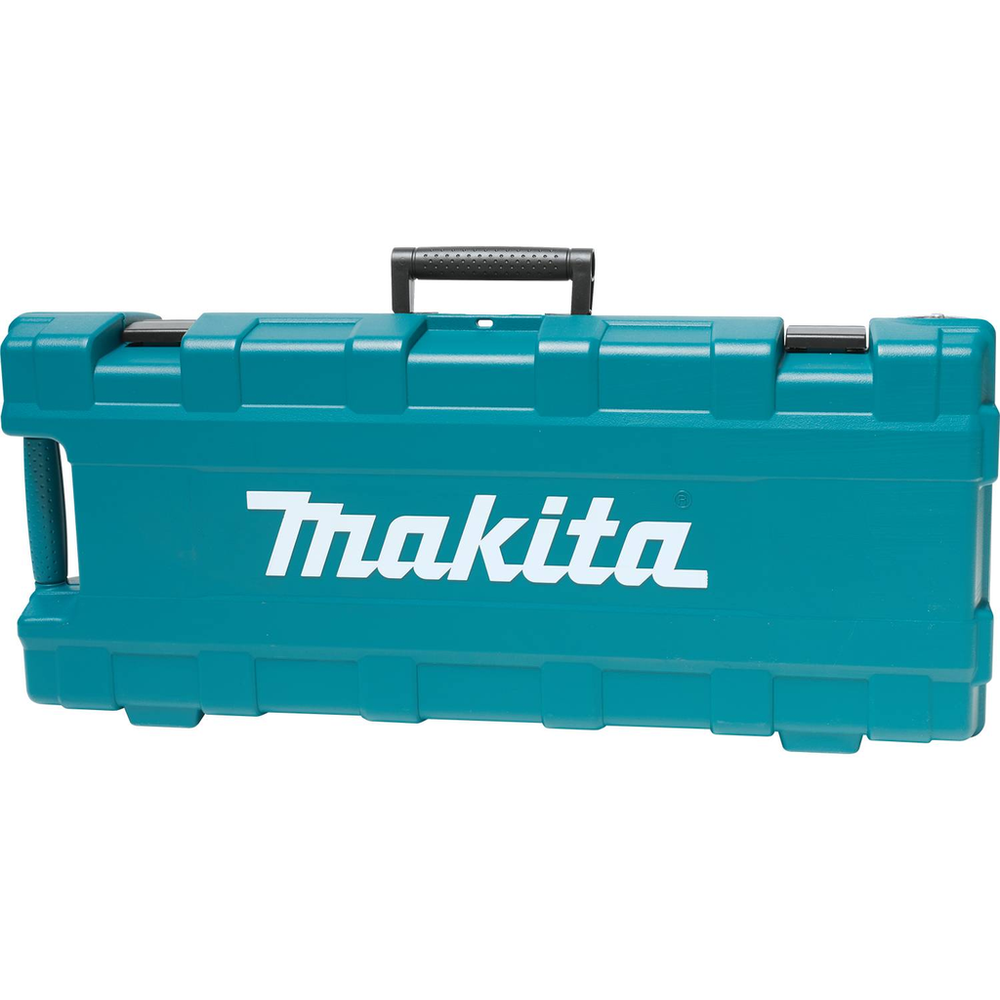

Durable blow-molded rolling tool case for safe storage and easy transportation
L.E.D. power light indicates switch failure or cord damage
Automatic brush cut-off protects commutator from damage for longer tool life
Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs

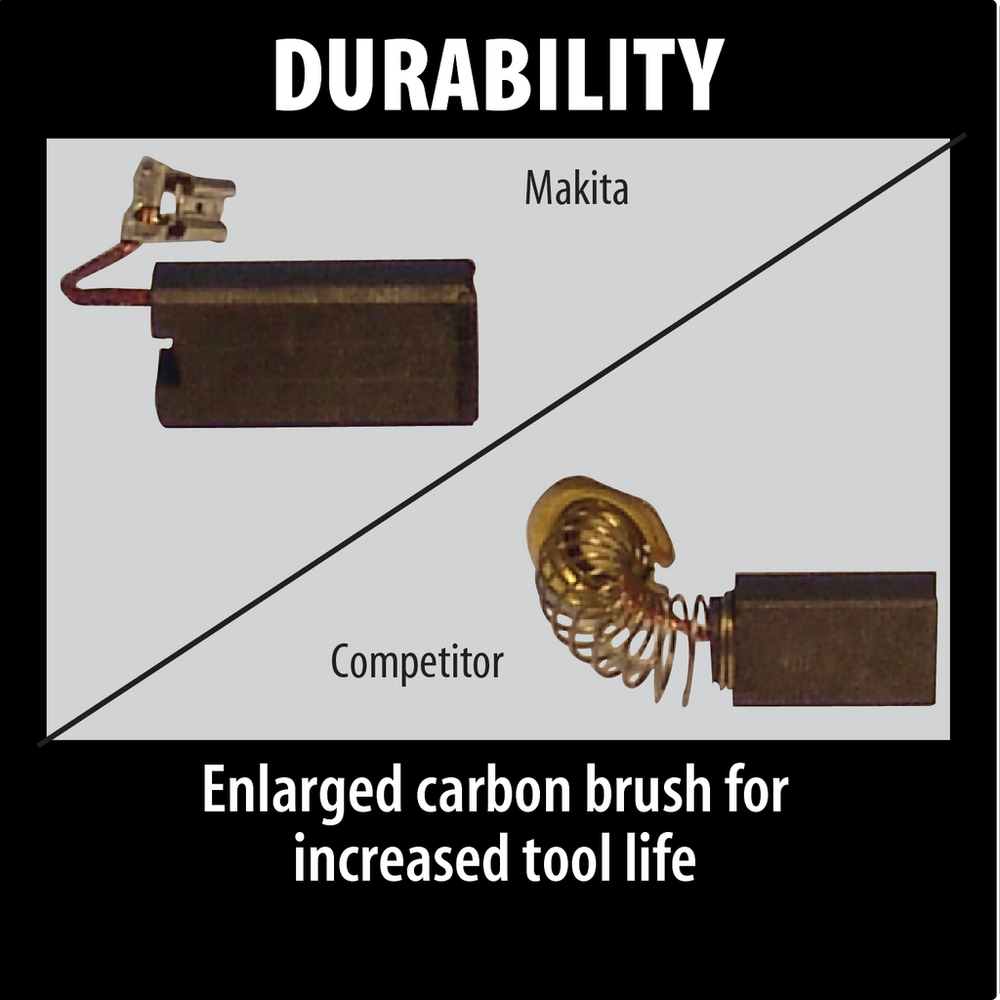

Extended life brushes are longer for more work between service intervals and less downtime

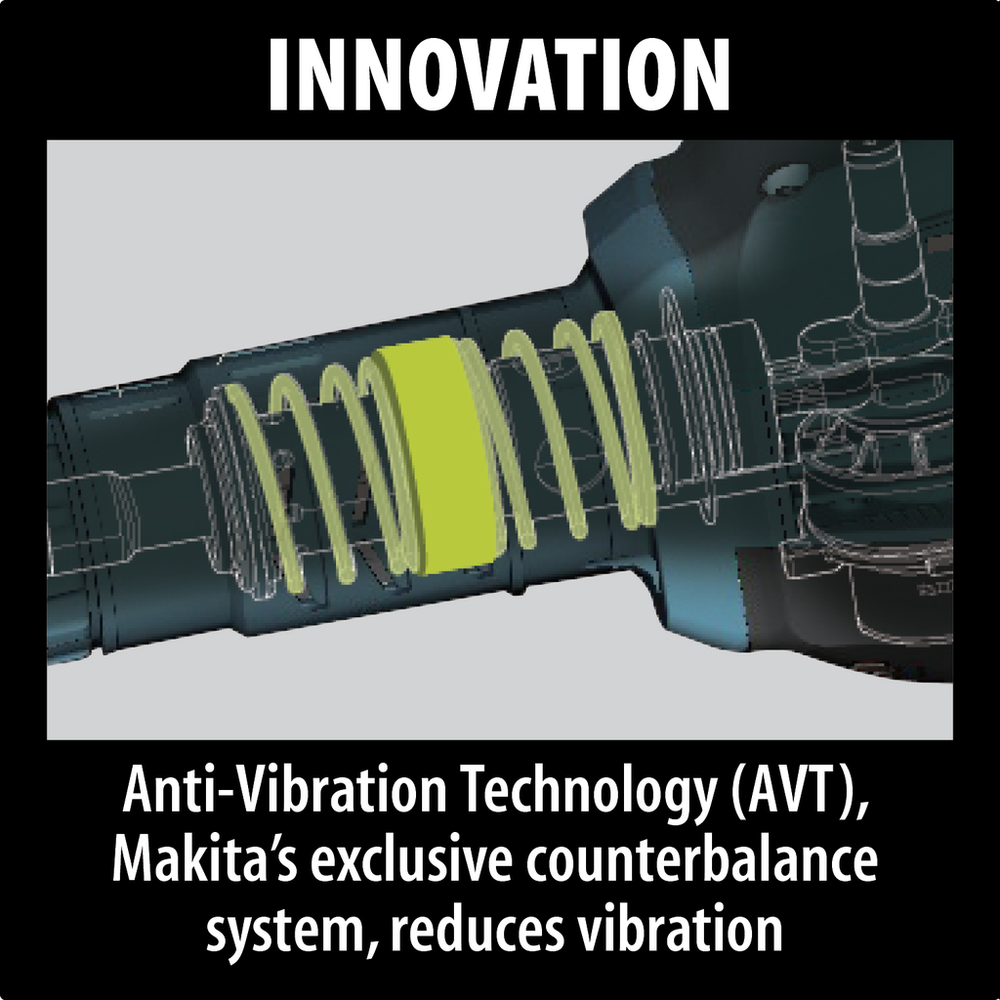

Anti-Vibration Technology (AVT®) is an internal counterbalance system that greatly reduces vibration by moving a counterweight in the opposite direction of the drive piston

Documents

Parts Breakdown

HM1317CB FE

Manuals

Instruction Manual

Specifications

AMPS	14
Noise Level	101 dB
Type (Breakers & Demolition Hammers)	Demolition Hammer
Power Type	Corded
Vibration Control	Yes
Blows Per Minute (variable speed)	730 - 1,450 BPM
Breaker/Demo class	40
Bit Type	1-1/8" Hex
Length	32-1/2 in
Impact Energy	25.7 ft.lbs. (34.9 J)
Vibration	7 m/s²
Cord Length	16.4'
Weight	41.9 lbs
