Makita’s 5” SJS™ Angle Grinder combines 13 AMP power and variable speed with comfort and motor-protection features for longer-lasting industrial performance. The 9565PCV is engineered with Makita’s innovative SJS™ mechanical clutch system to protect the gears for longer tool life. 13 AMP Power with SJS™ to Protect Gears The 9565PCV is powered by a 13 AMP motor that delivers 2,800 - 10,500 RPM, with soft start for smooth start-ups. Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life. In addition, the protective zig-zag varnish seals the motor and bearings from dust and debris by creating a barrier under rotation. The 9565PCV is engineered with SJS™, an innovation from Makita that protects the gears by automatically disengaging the motor should the grinding wheel accidentally catch or bind. Comfort and Ergonomics The 9565PCV weighs only 5.3 lbs. and is built with comfort and ergonomic features for extended use. In addition, the side handle can be easily installed on either side of the tool as well as the top, and the “tool-less” wheel guard adjustment provides easy clamping. The large paddle switch with lock-off is designed for more comfortable operation. Versatile Design for a Range of Applications The 9565PCV is a versatile and powerful grinder engineered for demanding applications including cutting, ferrous metal, paint and rust removal, shipyard maintenance, heavy machinery, metal polishing, general steel grinding, auto repair work, cutting brick and masonry, and restoration work. The grinder is built for welders, fabricators, plumbers, masons, electricians, automotive technicians, stone and tile workers, HVAC, and general contractors seeking a best-in-class industrial quality angle grinder.
Features
- Side Handle (153489-2)
- INCLUDES - Grinding wheel, wheel guard, side handle, inner flange, lock-nut and wrench
- SJS™ technology is a mechanical clutch system that minimizes motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
- Powerful 13.0 AMP motor delivers more output and variable (2,800 - 10,500) RPM for the most demanding applications
- Lock Nut (193465-4)
- Inner Flange (224399-1)

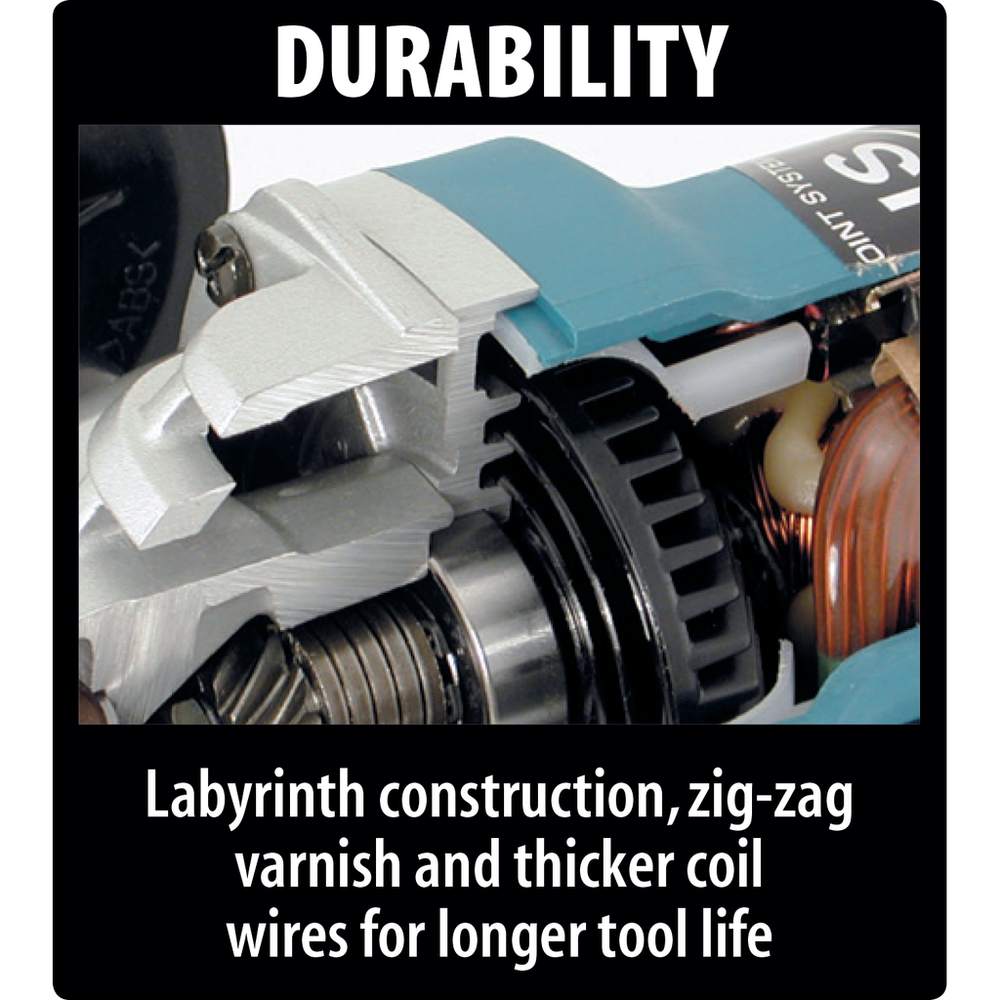

- DURABILITY - Labyrinth construction, zig-zag varnish and thicker coil wires for longer tool life
- Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
- PERFORMANCE - SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage
- Large paddle switch with lock-off for comfortable operation
- VERSATILITY - Variable speed control dial enables user to match the speed to the application
- SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
- Refined design at only 5.3 lbs. for reduced operator fatigue
- Electronic controller provides an electronic current limiter which helps protect the motor from overload in high torque applications
- 5" Clip-On Cut-Off Wheel Guard Cover (199710-5)
- POWER - 13 AMP motor delivers 2,800 - 10,500 RPM
- Electronic controller provides soft-start which is designed to suppress start-up reaction for smooth start-ups and longer gear life
- 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
- Electronic controller provides constant speed control which automatically applies additional power to the motor to maintain speed under load
- 5" Tool-less Wheel Guard (135108-2)
- Lock Nut Wrench (782424-9)
- Compact design at only 12-1/8" long
- "Tool-less" wheel guard adjustment for easy adjustment
- Variable speed control dial enables user to match the speed to the application
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
