Makita

5" SJS™II High-Power Angle Grinder (GA5042C)

Name: 5" SJS™II High-Power Angle Grinder (GA5042C)
Brand: Makita
SKU: GA5042C
Price: 269 USD
Availability: InStock

SKU: GA5042C

MPN: GA5042C

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381697996

$269.00 each

Hurry up! Current stock:

Quantity:

Product Description

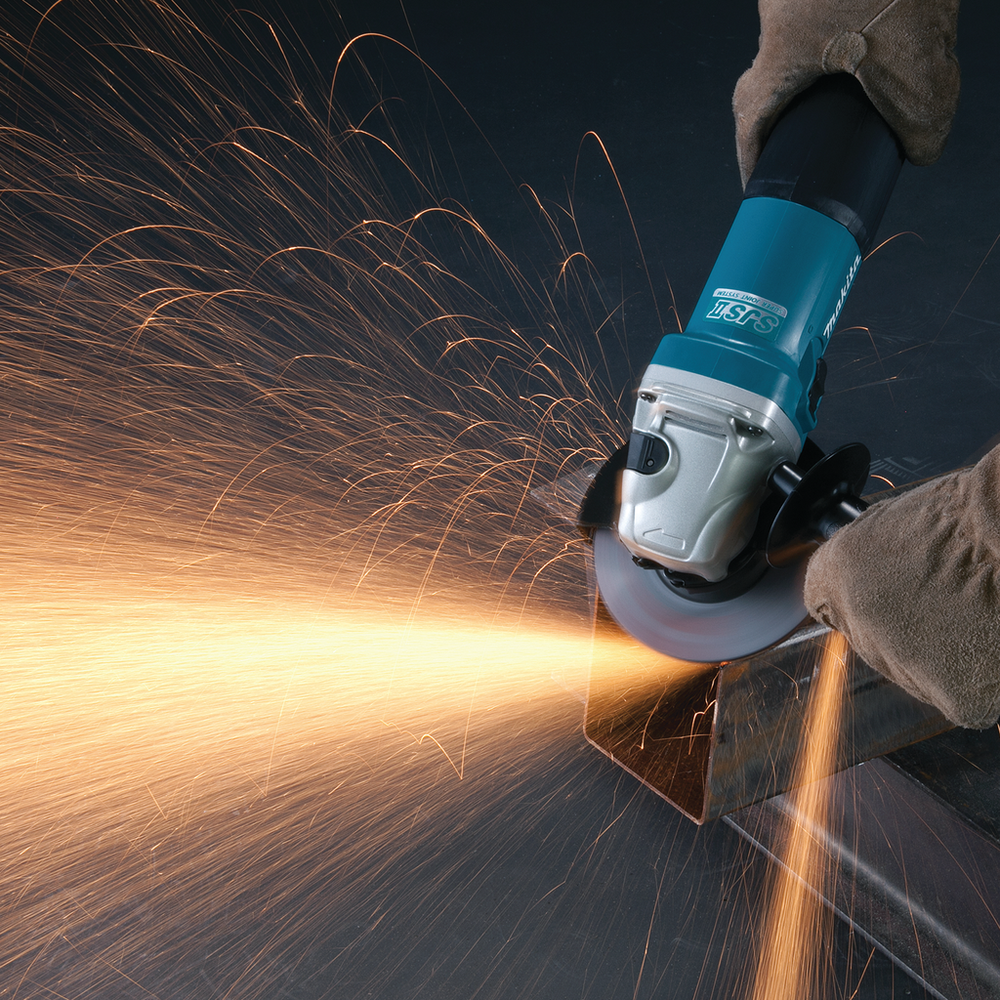

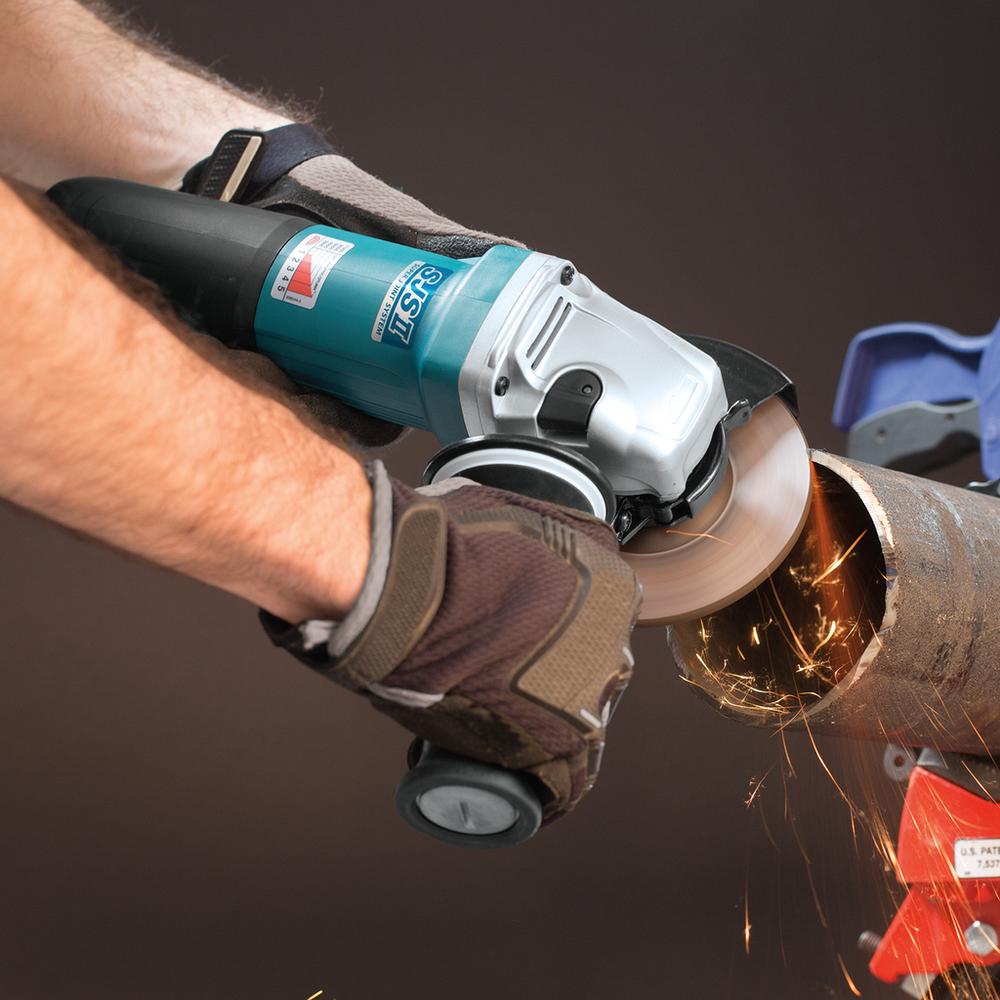

The Makita 5" SJS™II High Power Angle Grinder (GA5042C) combines power, convenience, comfort and motor-protection features for longer-lasting industrial performance. It is ideal for cutting, grinding ferrous metal, paint and rust removal, shipyard maintenance, metal polishing, general steel grinding, auto repair work, cutting brick and masonry, restoration work, and more. The GA5042C is equipped with SJS™II, a mechanical gear drive system to help prevent motor and gear damage by dampening the force on the gear when the wheel is forced to stop. SJS™II is also features a leaf spring and cam gear drive mechanism that is engineered to reduce vibration for increased operator comfort during extended use. The 12 AMP motor delivers 2,800-11,000 RPM for versatility and maximum productivity. Labyrinth construction protects the motor with a complex set of channels, prohibiting dust and contamination from entering the motor. Additional protection features include a zig-zag epoxy applied to both sides of the armature coil, and a powder-coating to the field. This forms a barrier under rotation and is engineered to protect from dust and debris penetration for longer tool life.

Features

Powerful 12.0 AMP motor delivers more output and variable (2,800 - 11,000) RPM
Electronic Controller provides an electronic current limiter which helps protect the motor from overload in high torque applications
Slide switch with lock-on for continuous use
Electronic controller provides constant speed control which automatically applies additional power to the motor to maintain speed under load

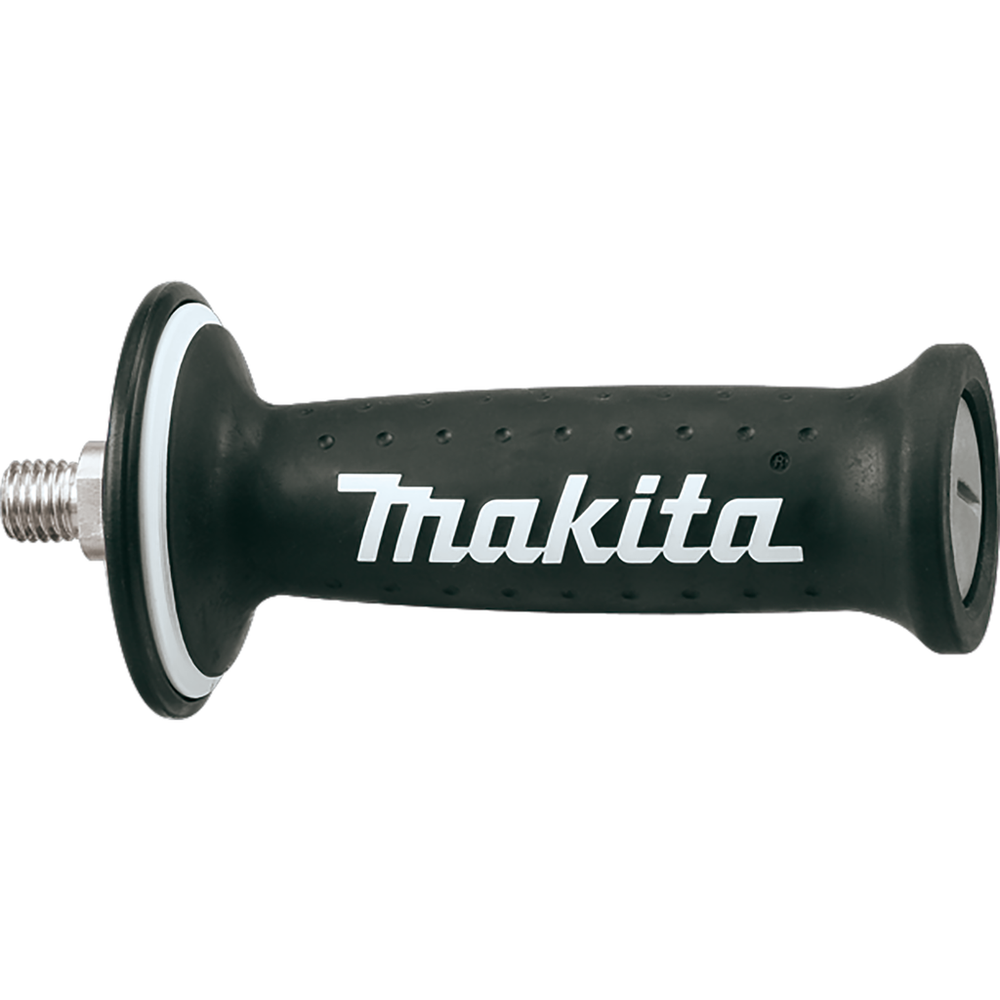

Vibration absorbing side handle provides increased comfort on the job
Fully aluminum constructed gear housing provides superior gear alignment and smooth transmission for increased durability and comfort
Motor fan is designed with enlarged fins for increased air flow and a cooler running motor
Electronic Controller provides soft start which is designed to suppress start-up reaction for smooth start-ups and longer gear life
"Tool-less" wheel guard for easy adjustment
Complete zig-zag epoxy is applied to both sides of the armature coil and a powder coating to the field for protection from debris and longer tool life
Spiral bevel gears for smoother rotations and a more efficient transfer of energy
SJS™II provides a leaf spring and cam gear drive mechanism that is engineered to reduce vibration for increased operator comfort during extended use

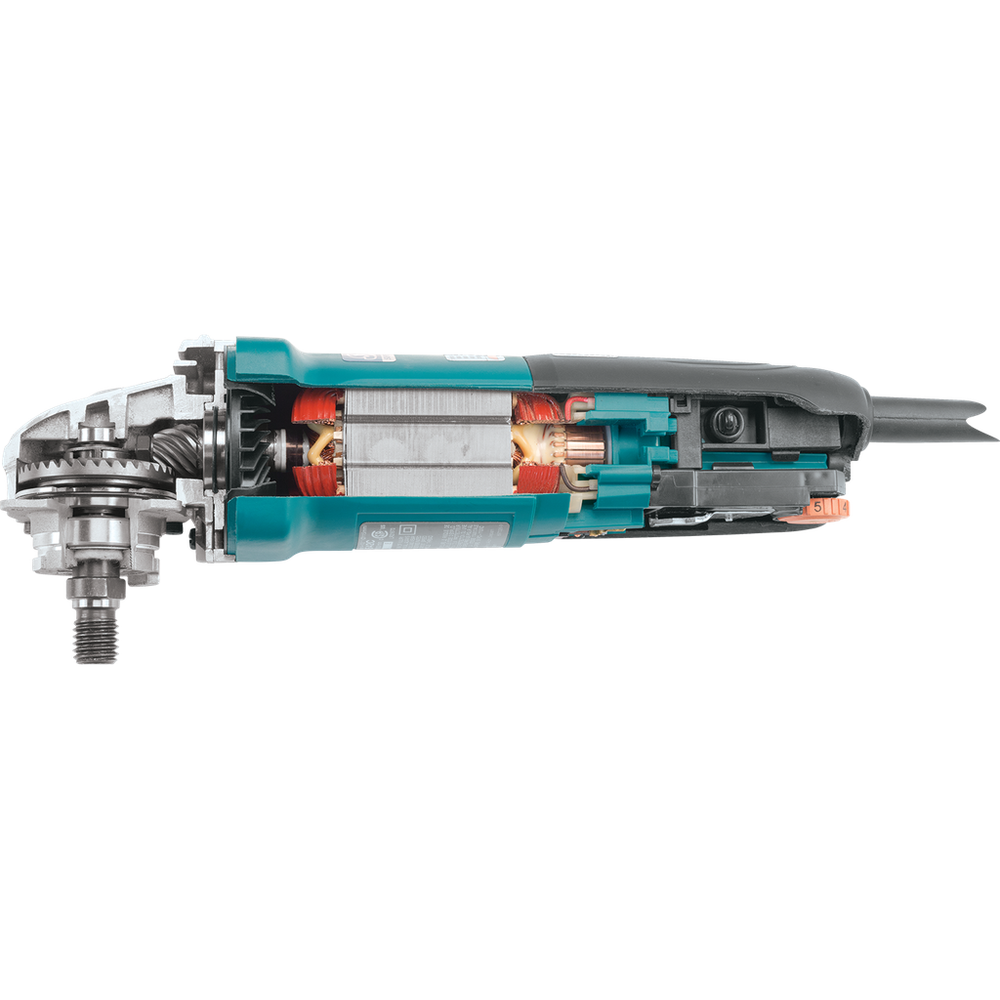

Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
Variable speed control dial enables user to match the speed to the application

Documents

GA4542C NTFE

Breakdown GA4542C,GA5042C 9 14

Manuals

Instruction manual GA4542C,GA5042C

Specifications

Switch Type	Body grip/slide
Variable speed dial	Yes
AMPS	12
No Load Speed (variable speed)	2,800 - 11,000 RPM
Power Type	Corded
Spindle Type	5/8" - 11 UNC
Bind-Up Control	No
Lock-Off Switch	No
Lock-On Switch	Yes
Wheel Diameter	5"
Weight	5.4 lbs
Length	11-7/8 in
