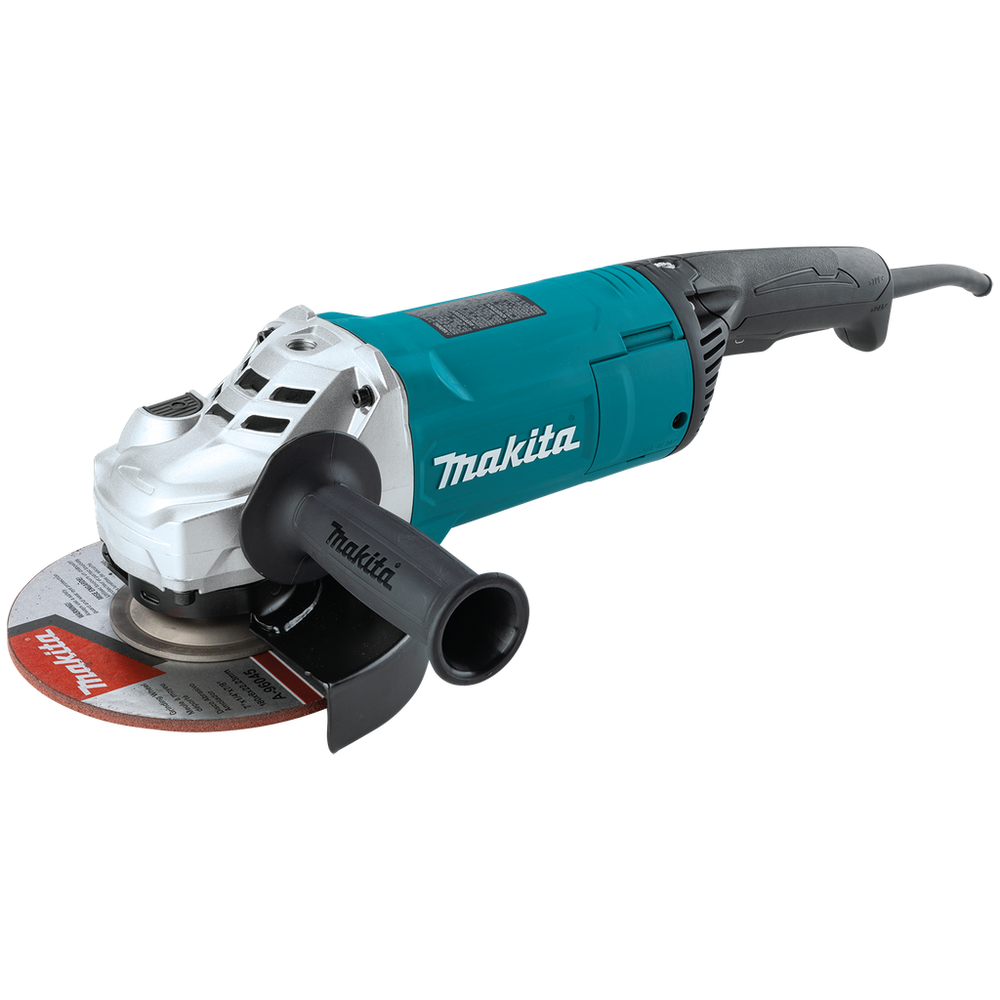

The Makita 7" Angle Grinder with Lock-On Switch (GA7081) features a powerful 15 AMP motor that delivers 8,500 RPM for faster material removal. The GA7081 features a redesigned motor with greater armature stability and larger commutator bars for 3 times longer life compared to the previous model. The Angle Grinder features a power switch with both lock-off and lock-on capabilities as well as anti-restart. The rear handle trigger switch requires two actions to start the grinder. The Angle Grinder features soft start, which suppresses start-up reaction for smooth start-ups and longer gear life. It features spiral bevel gears for smoother rotations and a more efficient transfer of energy. The GA7081 features a brush door that provides easy access to brushes for convenient replacement and protects the serial number identification label. It also has a brush spiral spring that allows for a 30% larger brush and increased airflow compared to the previous model, as well as an aluminum gear housing that provides superior gear alignment and smoother transmission for increased durability. Convenience features include a three-position vibration-absorbing side handle for increased comfort, a large spindle lock button for easier wheel changes while wearing gloves, and a rubberized back handle for increased operator comfort. It also features labyrinth construction, which prevents debris from penetrating the motor, bearings, and gears for longer tool life as well zig-zag epoxy on both sides of the armature coil and a powder-coated field for added protection from dust and debris for longer motor life.
Features
- Large spindle lock button for easier wheel changes while wearing gloves
- Side Handle (143486-6)
- Zig-zag epoxy on both sides of the armature coil and a powder-coated field for added protection from dust and debris for longer motor life
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life

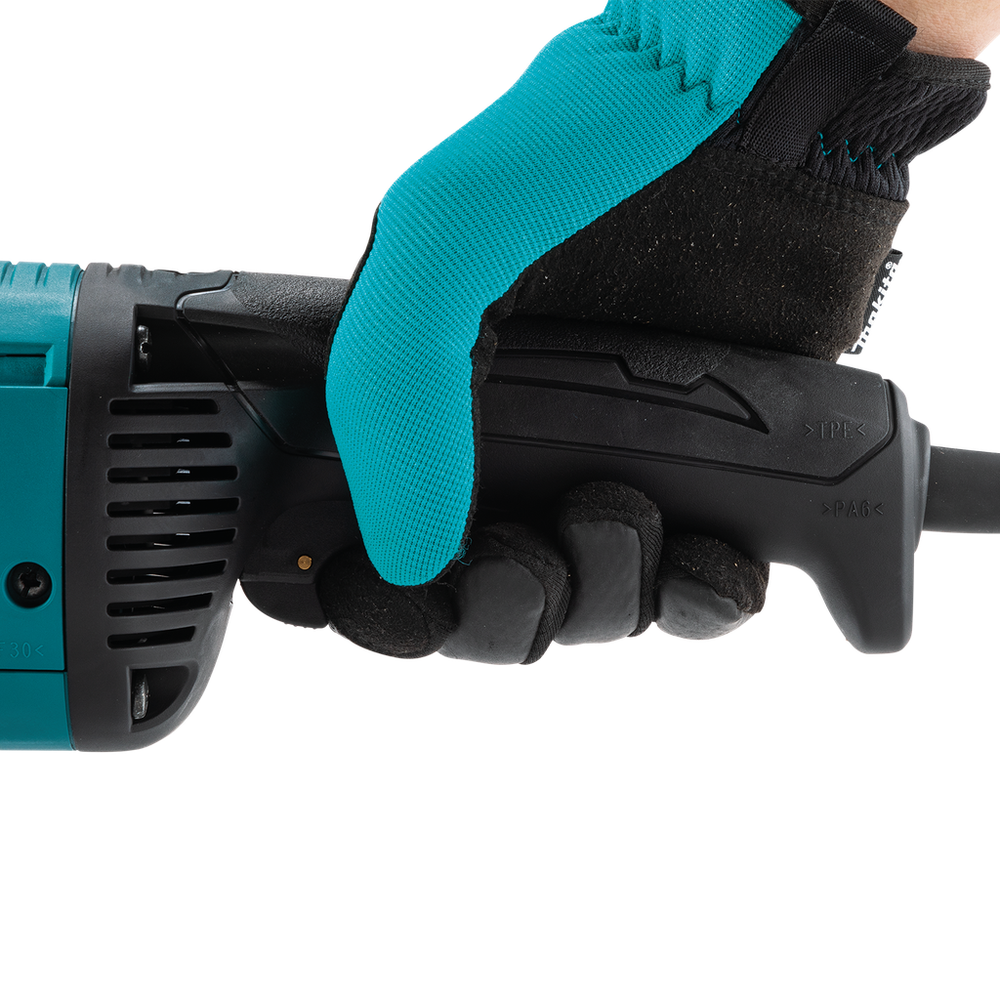

- Rubberized back handle for increased operator comfort
- Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
- Side handle installs in three locations for operator comfort in various applications
- Brush spiral spring allows for a 30% larger brush and increased air-flow compared to previous model
- 7" Wheel Guard (122939-8)
- INCLUDES - Wheel guard, side handle, inner flange, lock-nut and wrench
- Inner Flange (224317-9)
- Lock Nut Wrench (782412-6)
- Brush door provides easy access to brushes for convenient replacement; protects serial number identification label
- Redesigned motor with greater armature stability and larger commutator bars for 3 times longer life compared to previous model
- DESIGN - Labyrinth construction protects the motor and bearings from dust and debris

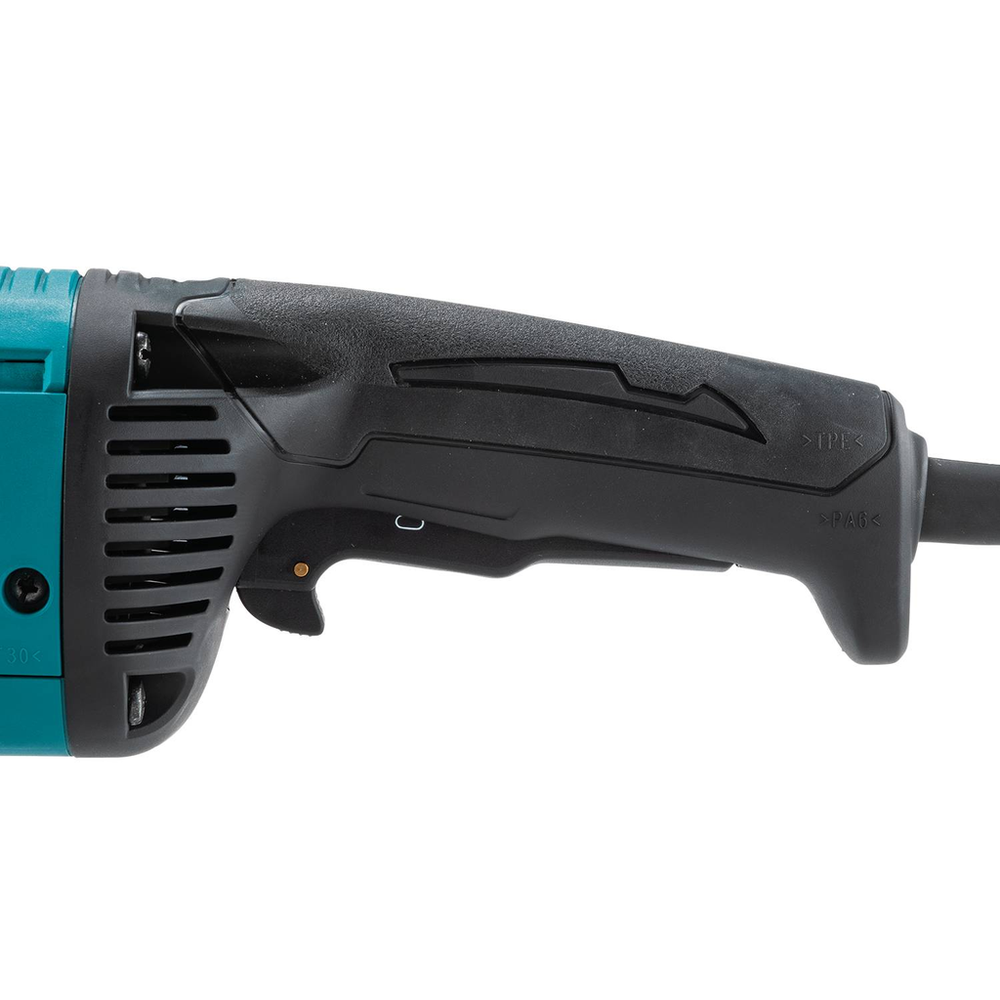

- Rear handle trigger switch with lock-off feature that requires two actions to start the grinder
- DURABILITY - Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Includes 7" grinding guard and lock-nut wrench
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- Compact design at 17-3/4" long and weighs 11.7 lbs. for added comfort
- ERGONOMICS - Large spindle lock button for easier wheel changes
- Automatic brush cut-off protects motor from damage for longer tool life
- PERFORMANCE - 15 AMP motor with greater armature stability and larger commutator bars for longer life; 8,500 RPM
- Aluminum gear housing provides superior gear alignment and smoother transmission for increased durability
- Lock Nut (224486-6)
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Parts BreakdownGA7080__GA7082_GA9080_GA9081 Instruction Manual
