3M Products & Supplies

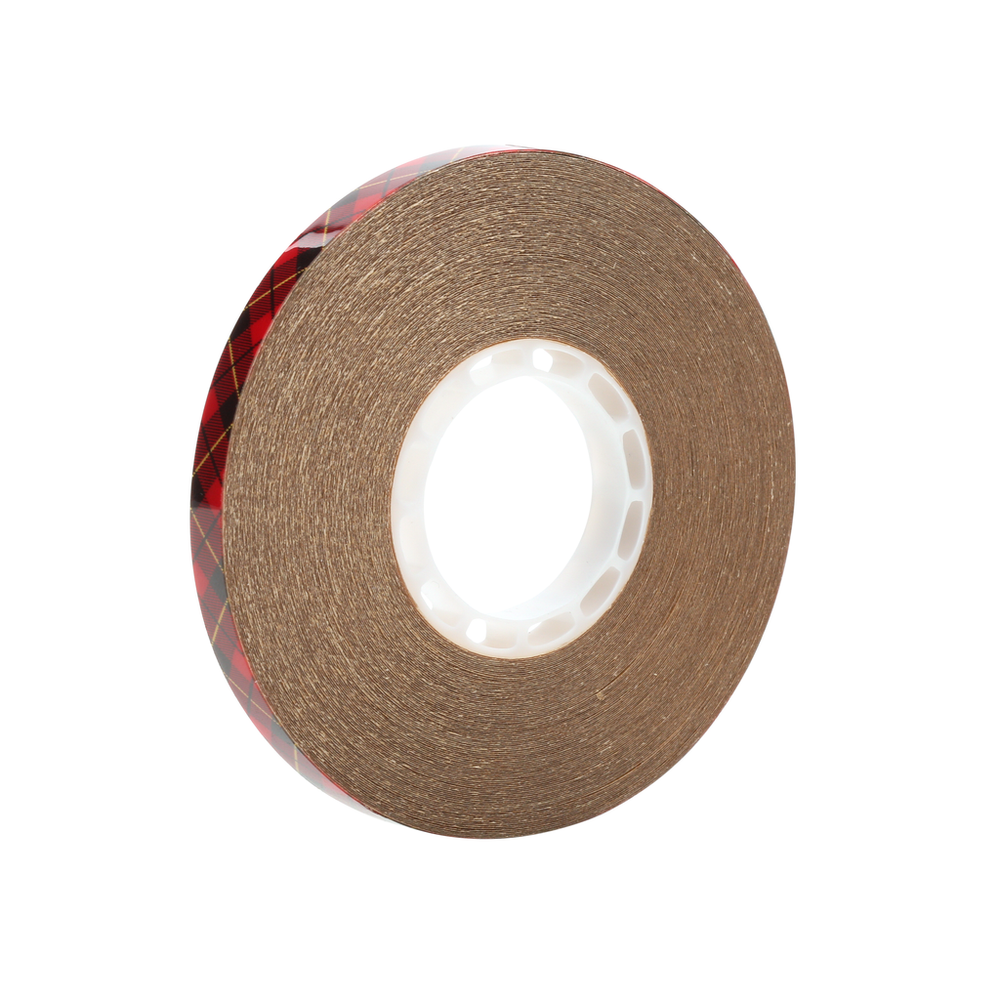

Scotch® ATG Adhesive Transfer Tape 926, Clear, 1/4 in x 36 yd, 5 mil, 144 Roll/Case - 7000048718

Sold As: 144-Pack
SKU: 7000048718
MPN: 7000048718
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200303081
3M ID: 70006210531
5 Digit UPC: 30308
$2,261.91 ($15.71 / Count)
Hurry up! Current stock:

Product Description

Scotch® ATG Adhesive Transfer Tape 926 is ideal for applications requiring high bond strength, high shear strength and high temperature performance. It offers chemical, moisture and UV resistance. Reverse wound on a unique 1 inch core designed for use with a Scotch® ATG Applicator.

Features

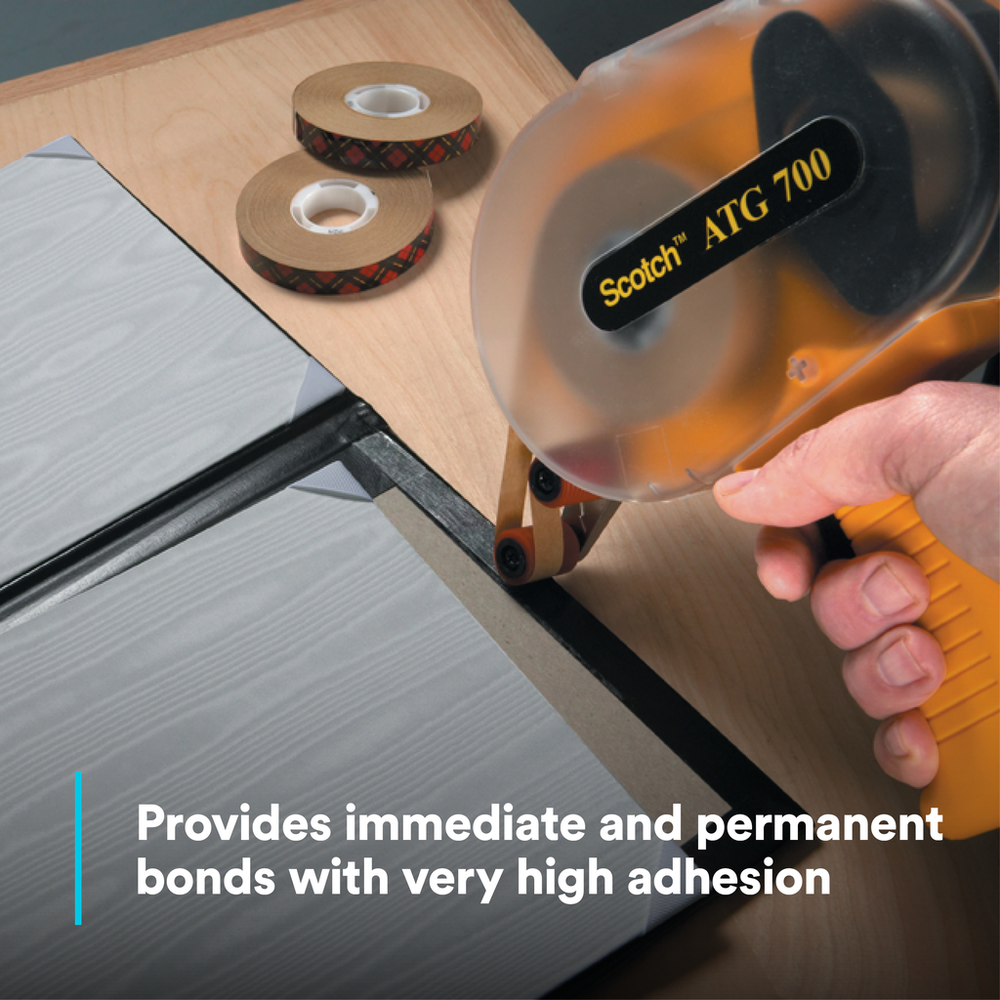

  • POWERFUL ADHESIVE PERFORMANCE: Provides immediate and permanent bonds with high adhesion, high temperature resistance, shear-holding power, and UV resistance — all while remaining low odor
  • STICKS TO DIVERSE SUBSTRATES: Designed to adhere to a variety of substrates, including plastics, ABS, acrylic, PP, PE, polycarbonate, polyester (PET), nylon, styrene plastics, PMMA, paper stocks, and other difficult-to-stick-to substrates

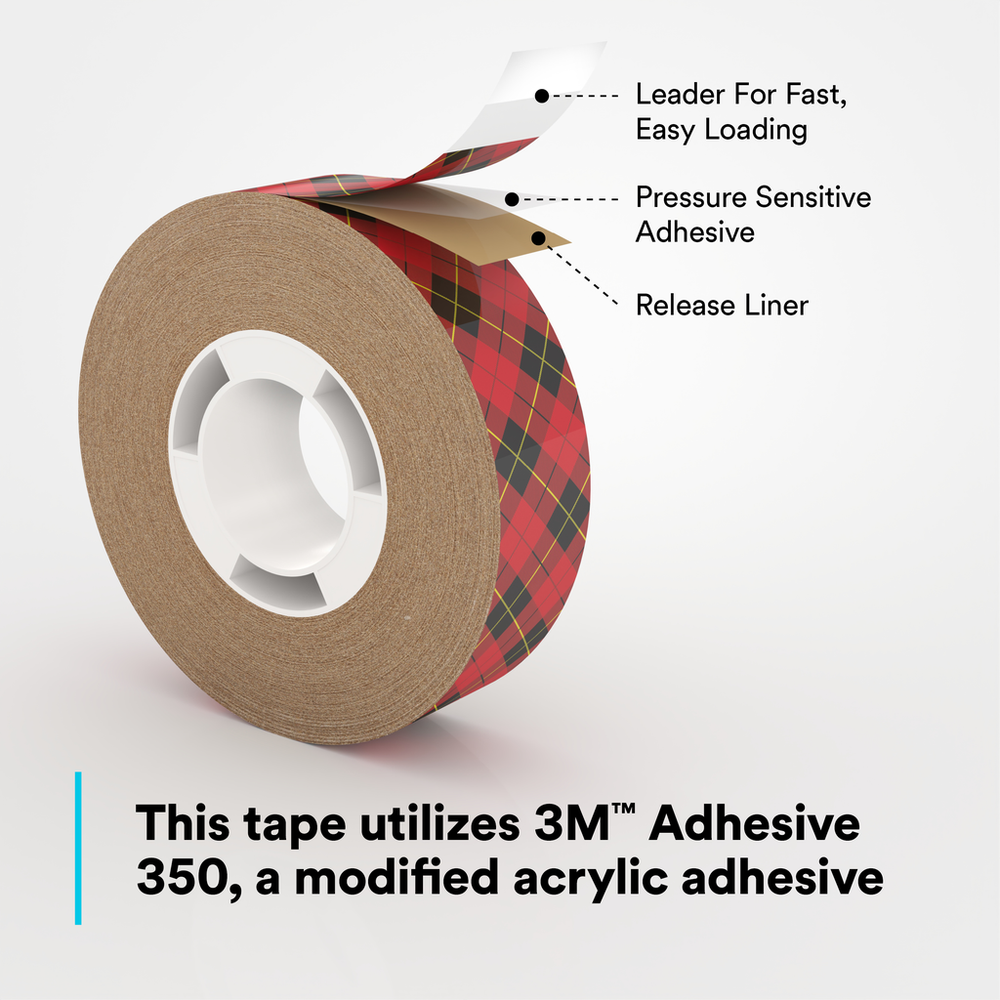

  • TRIED AND TESTED: This tape utilizes 3M™ Adhesive 350, a modified acrylic adhesive ideal for applications on challenging surfaces, such as low surface energy materials and powder coatings
  • ADAPTABLE TO A VARIETY OF SURFACES: Conforms easily to curves and contours while bonding well to smooth and moderately textured surfaces
  • USEABLE IN HIGH TEMPERATURES: This adhesive offers excellent performance up to 450 ºF (232 ºC)
  • MADE FOR MANY APPLICATIONS: Ideal for foam and gasket attachment, holding and fixturing in product assembly, bonding folders and boxes with good resistance to flap lifting, and for use where automated equipment is not suitable

Downloads

Specifications

Shelf Life730
Country of OriginUnited States
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)300.0
Total Tape Thickness without Liner (Imperial)5.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Overall Length (Metric)32.91
Number of Adhesive SidesDouble-sided
Adhesive TypeHigh Performance Acrylic Adhesive 350
Maximum Operating Temperature (Celsius)149.0
Total Tape Thickness without Liner (Metric)0.13
Primary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorTranslucent
Primary Liner Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric)6.35
Overall Width (Imperial)0.25
Overall Length (Imperial) UOMyd
Units per Case144.0
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)3.5
Primary Liner Thickness (Metric)0.09
Overall Width (Metric) UOMmm
Primary Liner ColorTan
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case UOMRoll
Overall Length (Imperial)36.0
