3M Products & Supplies

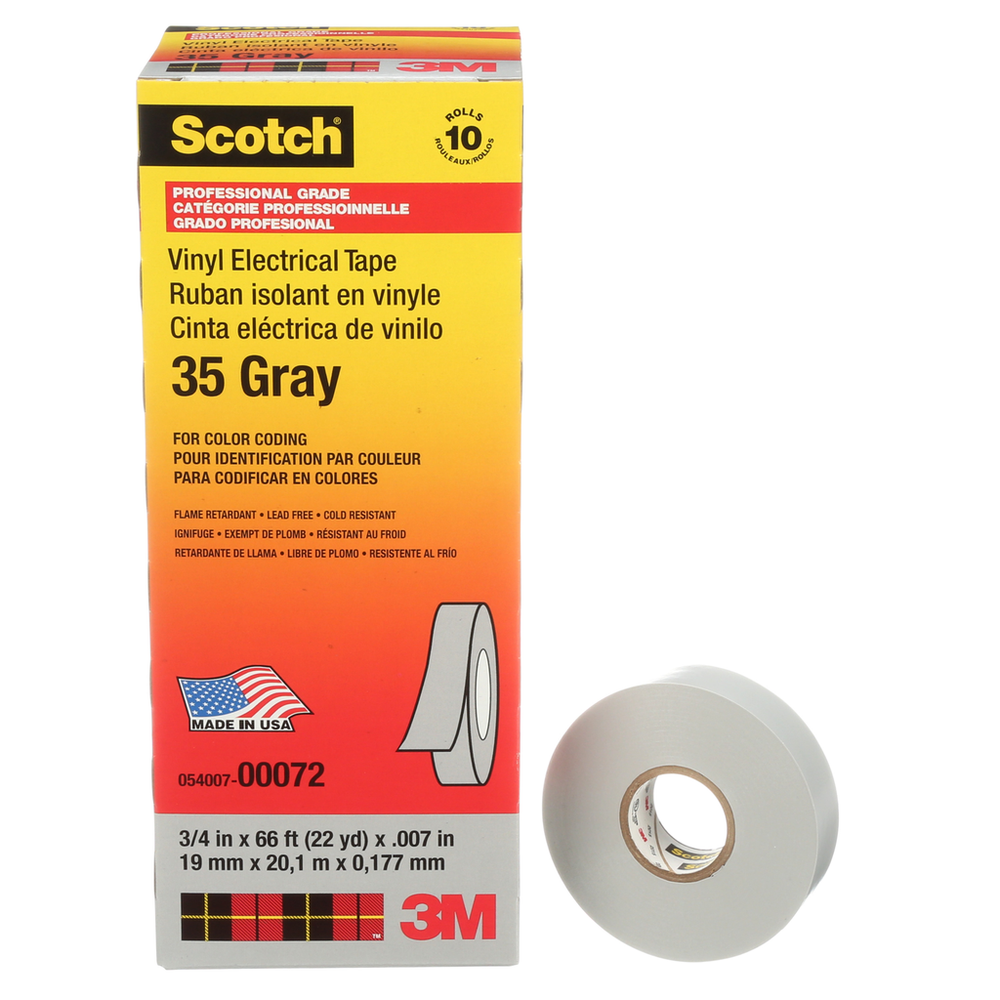

Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, Gray, 10 rolls/carton, 100 rolls/Case - 7000006099

Sold As: 10-Pack
SKU: 7000006099
MPN: 7000006099
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007000723
3M ID: 80610834063
5 Digit UPC: 72
$83.16 ($8.32 / Count)
Hurry up! Current stock:

Product Description

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Features

  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments

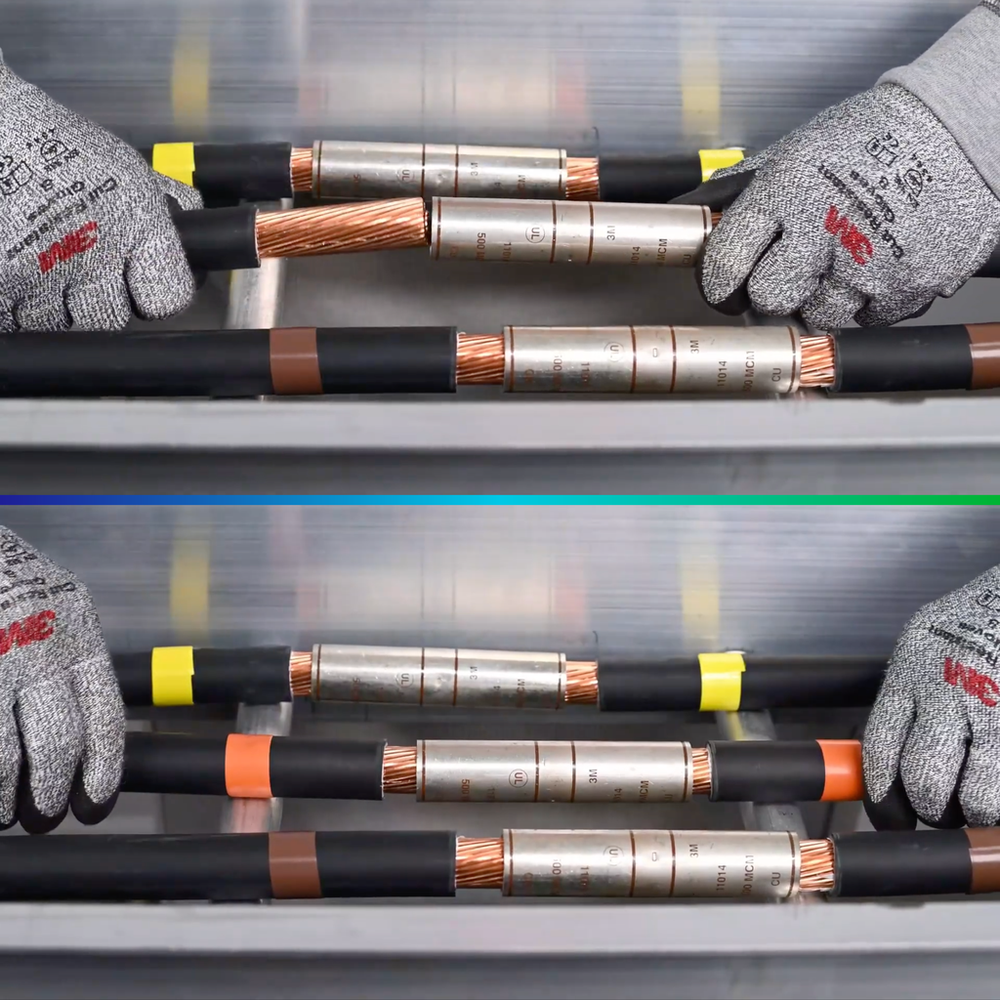

  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection

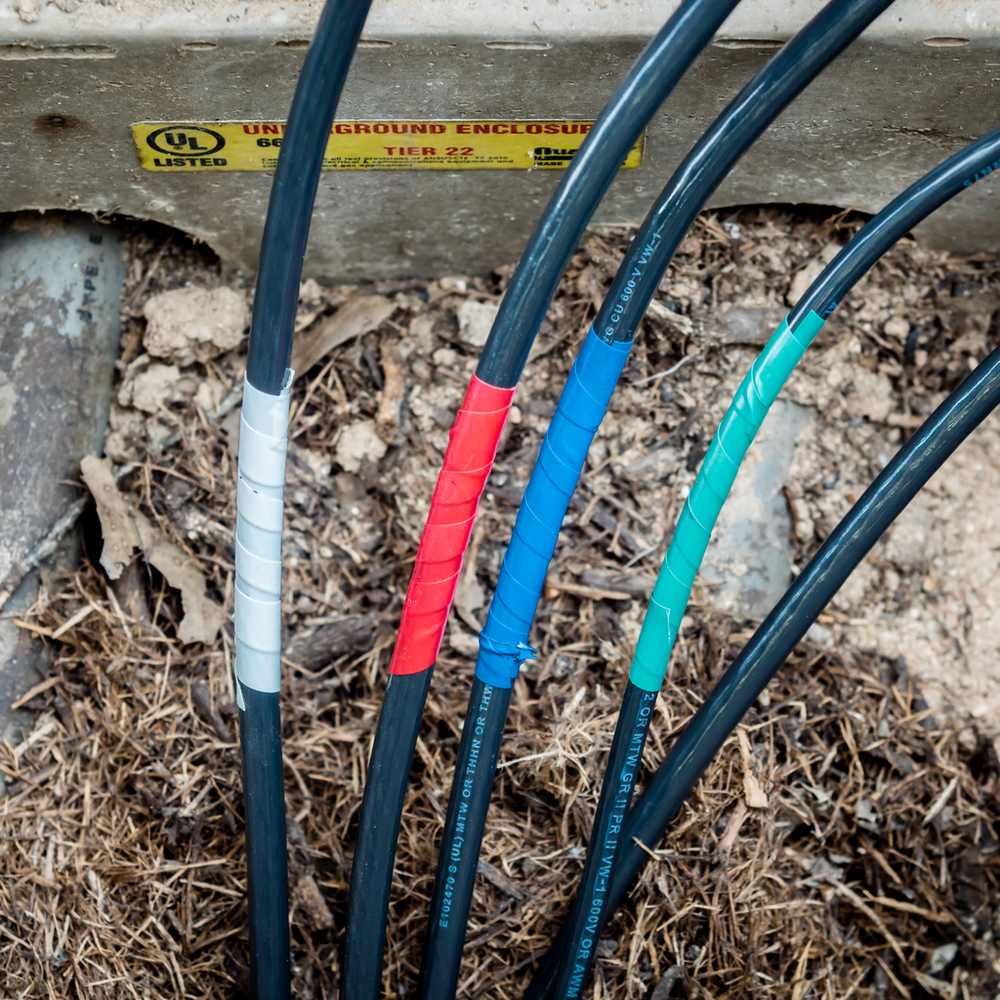

  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Product MarketsElectrical Construction
Tensile Strength (Imperial)90.0
Maximum Operating Temperature (Celsius) UOMDegree
Insulation Resistance> 10^6 megohms
Rolls per Carton10.0
Maximum Operating Temperature (Fahrenheit)221.0
Backing (Carrier) Thickness (Metric)0.18
Tape GradeProfessional
Dielectric Strength UOMmV
Voltage Rating600 V
Overall Width (Imperial)0.75
Shelf Life UOMYear
Rolls per Case100.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)19.0
Dielectric Strength1255.0
Tensile Strength (Metric) UOMN/10mm
Tensile Strength (Metric)30.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Electrolytic Corrosion Factor0.9
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMft
ApplicationElectrical Maintenance; Insulation
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial)66.0
Minimum Operating Temperature (Fahrenheit)14.0
Product ColorGray
Adhesive TypeRubber
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-10.0
Specifications MetCSA Certified, IEC 60454-3-1-6/F-PVC P/90, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1, VDE Marks License
