3M Products & Supplies

Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, White, 10 rolls/carton, 100 rolls/Case - 7000006097

Sold As: 10-Pack
SKU: 7000006097
MPN: 7000006097
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007108283
3M ID: 80610833982
5 Digit UPC: 10828
$83.16 ($8.32 / Count)
Hurry up! Current stock:

Product Description

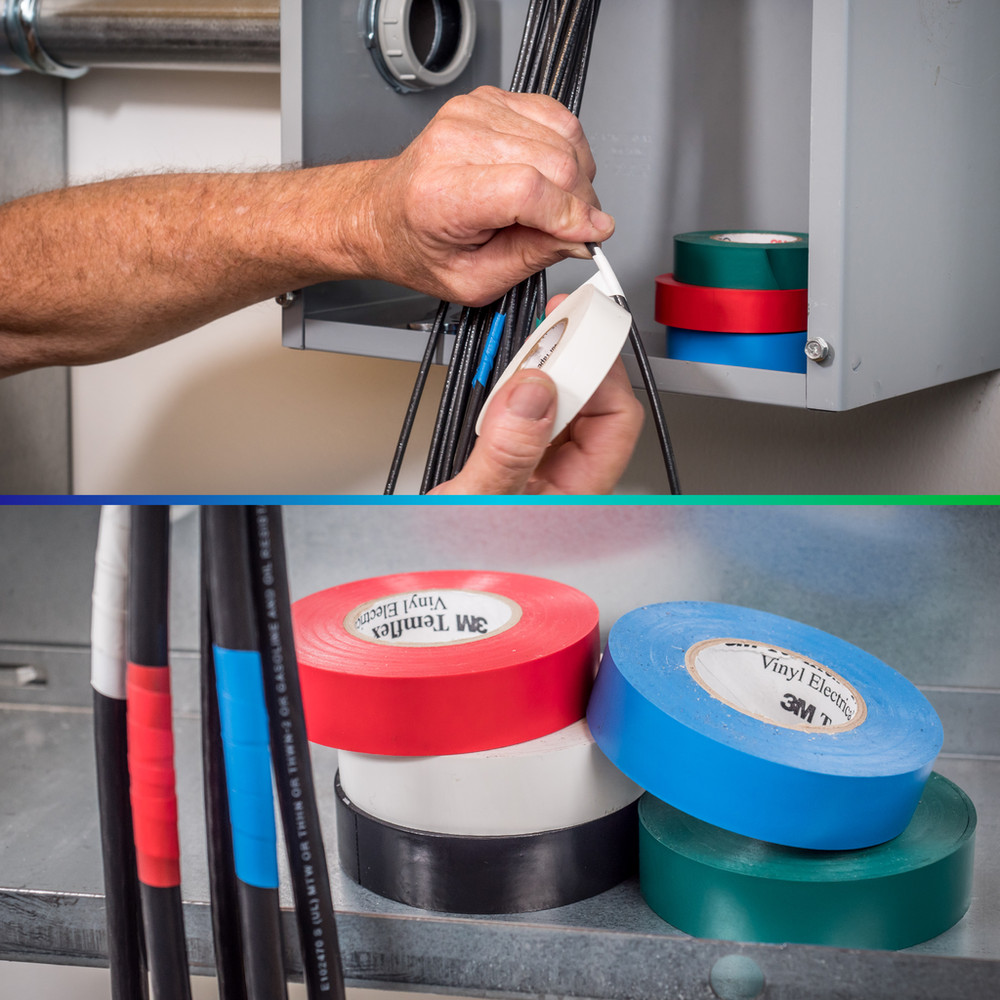

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Features

  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection
  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance

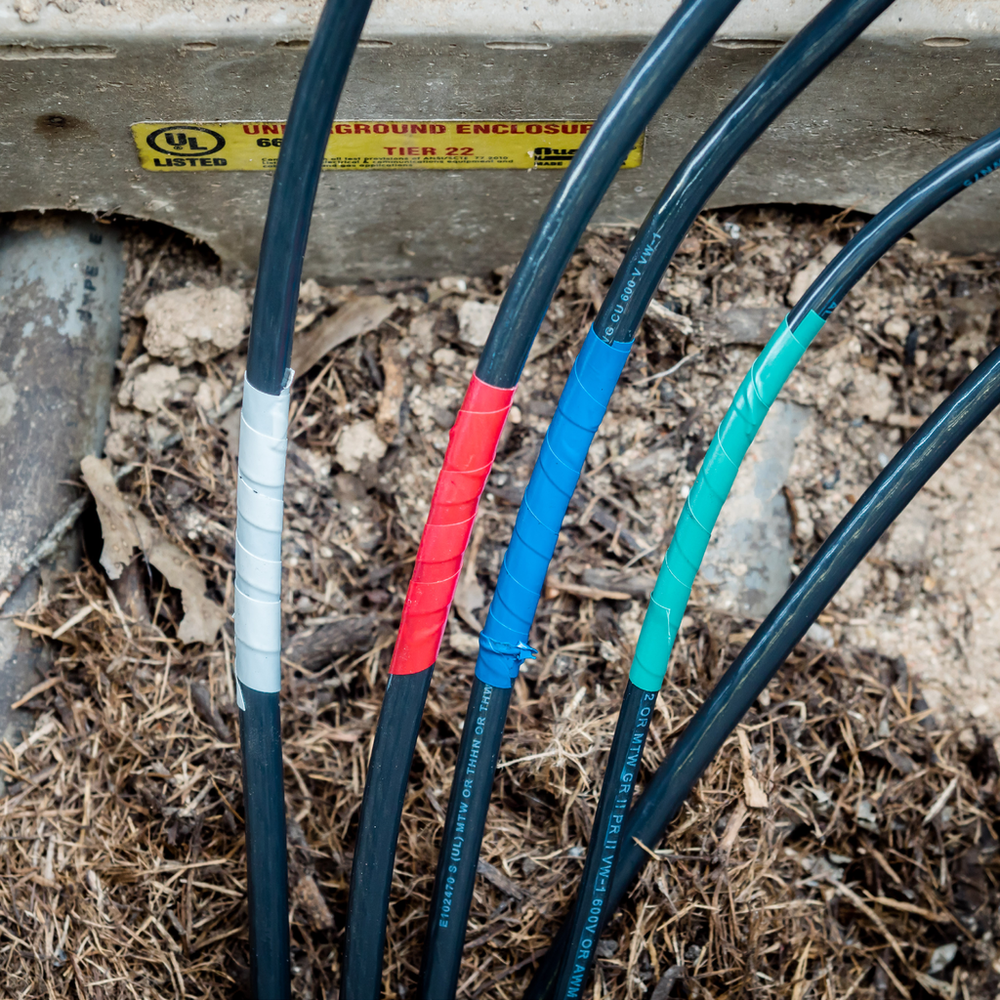

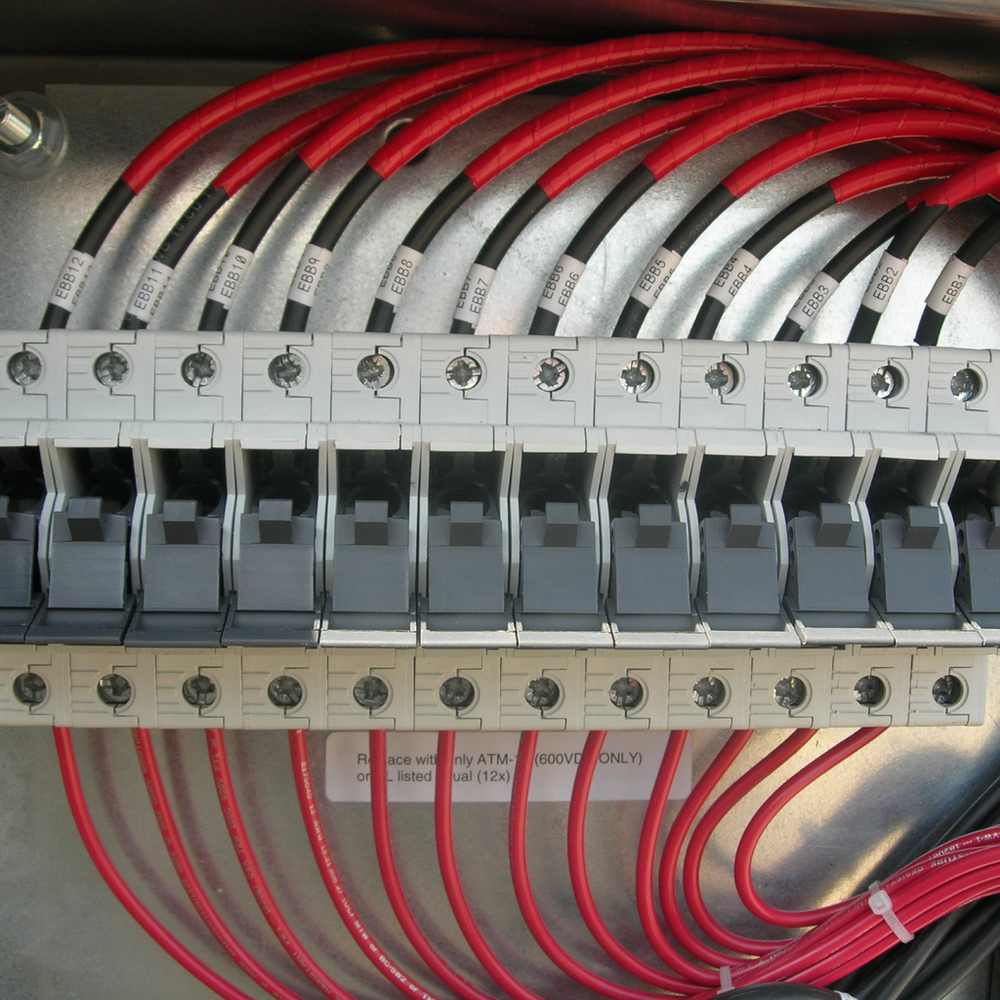

  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)14.0
Overall Width (Imperial)0.75
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMYear
Minimum Operating Temperature (Celsius)-10.0
Rolls per Carton10.0
Overall Width (Metric)19.0
Tensile Strength (Imperial)90.0
Overall Width (Imperial) UOMin
Tape GradeProfessional
Insulation Resistance> 10^6 megohms
Voltage Rating600 V
Dielectric Strength UOMmV
Adhesive TypeRubber
Tensile Strength (Imperial) UOMlb/in
Specifications MetCSA Certified, IEC 60454-3-1-6/F-PVC P/90, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1, VDE Marks License
Backing (Carrier) Thickness (Metric)0.18
ApplicationElectrical Maintenance; Insulation
Electrolytic Corrosion Factor0.9
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)66.0
Product MarketsElectrical Construction
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Dielectric Strength1255.0
Overall Length (Imperial) UOMft
Tensile Strength (Metric)30.0
Overall Width (Metric) UOMmm
Tensile Strength (Metric) UOMN/10mm
Product ColorWhite
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Rolls per Case100.0
