3M Products & Supplies

Standard Abrasives™ A/O Precision Cartridge Roll, 726035, C3-FT, 40, 13/16 in x 2-1/2 in x 1/4 in, Full TPRD, 25/Car, 250 ea/Case - 7100098751

Sold As: 250-Pack
SKU: 7100098751
MPN: 7100098751
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115365928
3M ID: 66000234634
5 Digit UPC: 36592
$2,051.31 ($8.21 / Count)
Hurry up! Current stock:

Product Description

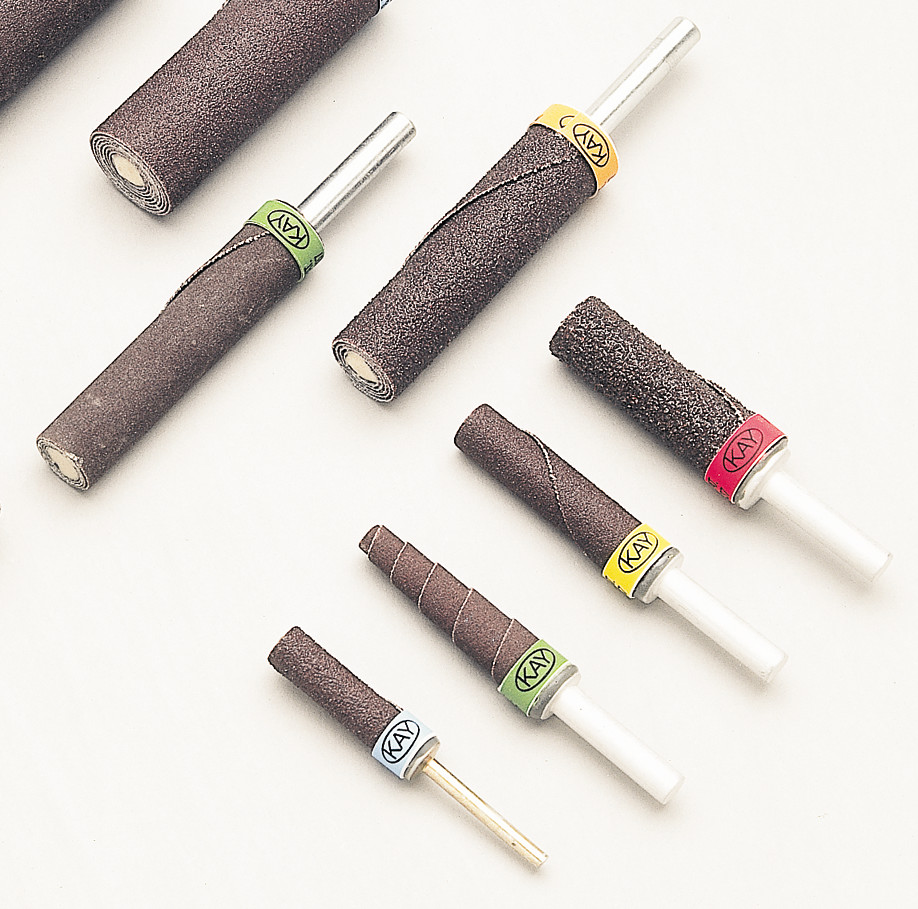

Standard Abrasives™ Aluminum Oxide Precision Cartridge Roll Model C is ideal for high-speed grinding and deburring on irregular contours and other hard-to-reach areas on all ferrous metals. The drive stem is securely affixed within the roll and resin-bonded to the inner layers. This solid construction supports use with larger tools and higher pressure, and enables a smoother application.

Features

  • Model C has an affixed 1/4˝ drive stem that protrudes about 5/8˝ into the core and is suitable for use with larger tools
  • Suitable for use on ferrous metals
  • Small size enables operators to reach tight spots with high speed
  • Solid construction excels at high tolerance and precision grinding
  • Multi-layer design continually reveals fresh abrasive for longevity
  • Attached drive stem helps eliminate loosening and vibration for longer and better performance than a conventional cartridge roll

Downloads

Specifications

Country of OriginUnited States
Abrasive MaterialAluminum Oxide
Grit40
Attachment TypeShaft
Overall Diameter (Imperial)0.8125
Overall Length (Metric) UOMmm
Overall Length (Imperial) UOMin
Roll FormFull Tapered
Overall Diameter (Metric) UOMmm
Product FormCartridge Roll
Maximum Speed UOMrpm
Center Hole Diameter (Metric) UOMmm
Product ColorBrown
Backing MaterialCloth
Overall Length (Imperial)2.5
Overall Length (Metric)63.5
Overall Diameter (Metric)20.6375
ApplicationDeburring; Finishing; Grinding; Polishing
IndustriesMarine, Metalworking
Overall Diameter (Imperial) UOMin
Center Hole Diameter (Imperial)0.25
Backing WeightX Weight
Product CategoryCoated Abrasives
Sub IndustriesMetal Fabrication
Maximum Speed11000.0
Coat TypeClosed Coat
Center Hole Diameter (Metric)6.35
Equipment - MachinesDie Grinders
Center Hole Diameter (Imperial) UOMin
