3M Products & Supplies

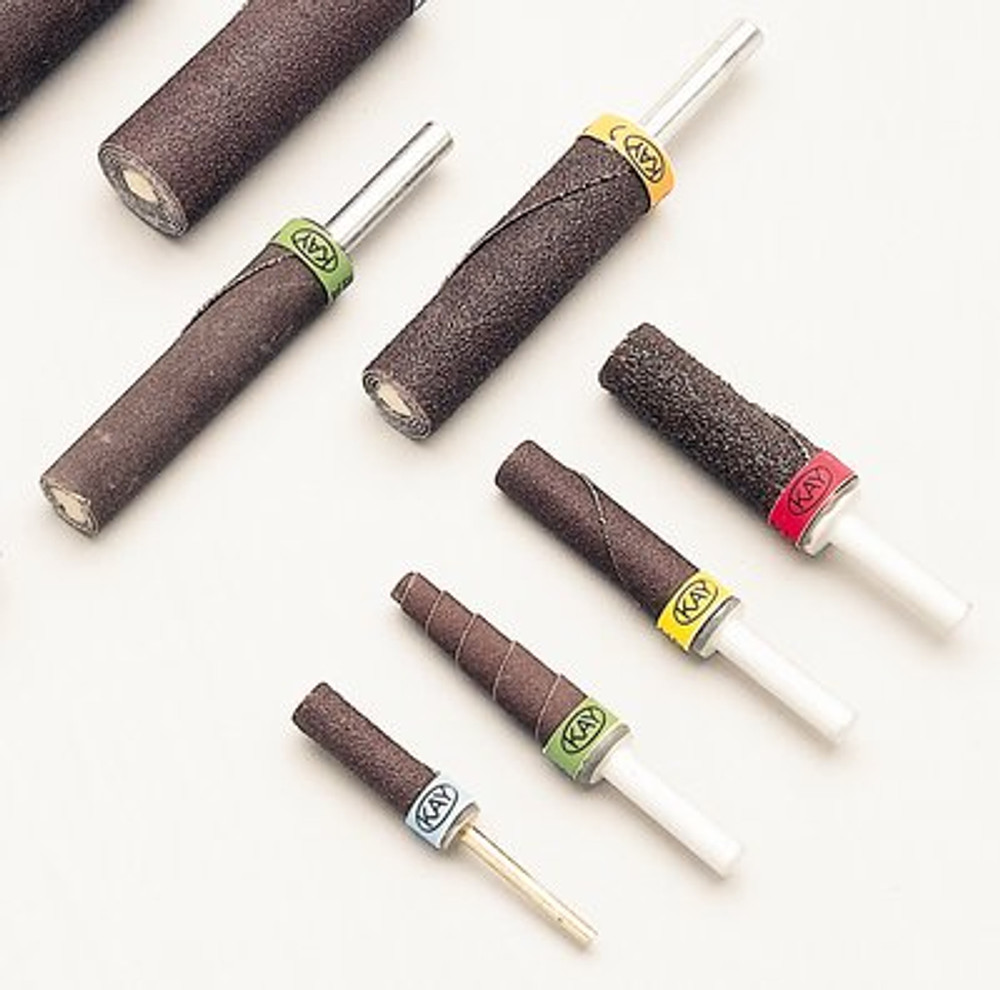

Standard Abrasives™ A/O Precision Cartridge Roll, 726096, R6-FT, 120, 3/8 in x 1-3/4 in x 1/4 in, Full TPRD, 25/Car, 250 ea/Case - 7100098792

Sold As: 250-Pack
SKU: 7100098792
MPN: 7100098792
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115365966
3M ID: 66000234667
5 Digit UPC: 36596
$835.64 ($3.34 / Count)
Hurry up! Current stock:

Product Description

Standard Abrasives™ Aluminum Oxide Precision Cartridge Roll Model R is ideal for high-speed grinding and deburring on irregular contours and hard-to-reach areas on all ferrous metals. The drive stem is solidly affixed to the rear of the roll, and the solid inner core is bonded with the inner layers for greater stability, a smoother application and longer life than conventional cartridge rolls.

Features

  • Multi-layer design continually reveals fresh abrasive for longevity
  • Small size enables operators to reach tight spots with high speed
  • Attached drive stem helps eliminate loosening and vibration for longer, smoother use than a conventional cartridge roll
  • Versatile range of sizes and grades are designed to meet specific project needs
  • Model R rear-mounted 1/4˝ stem maximizes use of the roll for improved productivity and less downtime
  • Solid construction excels at high tolerance and precision grinding

Specifications

Country of OriginUnited States
Abrasive MaterialAluminum Oxide
Grit120
Overall Diameter (Metric) UOMmm
Overall Diameter (Metric)9.525
Overall Length (Metric) UOMmm
Maximum Speed24000.0
Center Hole Diameter (Metric)6.35
Maximum Speed UOMrpm
Product FormCartridge Roll
IndustriesMarine, Metalworking
Overall Diameter (Imperial)0.375
ApplicationDeburring; Finishing; Grinding; Polishing
Equipment - MachinesDie Grinders
Center Hole Diameter (Metric) UOMmm
Product CategoryCoated Abrasives
Sub IndustriesMetal Fabrication
Overall Length (Imperial)1.75
Overall Length (Metric)44.45
Center Hole Diameter (Imperial)0.25
Product ColorBrown
Roll FormFull Tapered
Overall Diameter (Imperial) UOMin
Overall Length (Imperial) UOMin
Center Hole Diameter (Imperial) UOMin
