3M Products & Supplies

Standard Abrasives™ A/O Precision Cartridge Roll, 726029, R4-ST, 100, 1/4 in x 1-1/4 in x 1/8 in, R4, 25/Car, 250 ea/Case - 7100098774

Sold As: 250-Pack
SKU: 7100098774
MPN: 7100098774
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115366390
3M ID: 66000234857
5 Digit UPC: 36639
$612.95 ($2.45 / Count)
Hurry up! Current stock:

Product Description

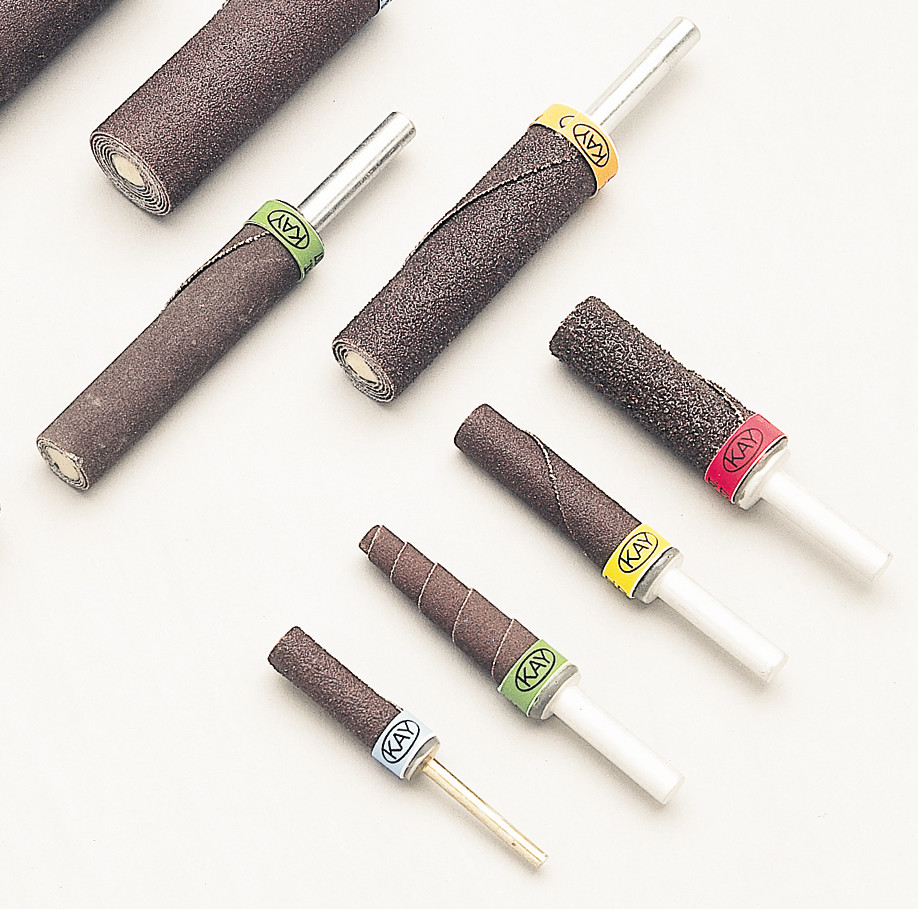

Standard Abrasives™ Aluminum Oxide Precision Cartridge Roll Model R is ideal for high-speed grinding and deburring on irregular contours and hard-to-reach areas on all ferrous metals. The drive stem is solidly affixed to the rear of the roll, and the solid inner core is bonded with the inner layers for greater stability, a smoother application and longer life than conventional cartridge rolls.

Features

  • Attached drive stem helps eliminate loosening and vibration for longer, smoother use than a conventional cartridge roll
  • Solid construction excels at high tolerance and precision grinding
  • Versatile range of sizes and grades are designed to meet specific project needs
  • Model R rear-mounted 1/4˝ stem maximizes use of the roll for improved productivity and less downtime
  • Small size enables operators to reach tight spots with high speed
  • Multi-layer design continually reveals fresh abrasive for longevity

Specifications

Country of OriginUnited States
Abrasive MaterialAluminum Oxide
Grit100
Overall Diameter (Metric) UOMmm
Overall Length (Imperial) UOMin
Equipment - MachinesDie Grinders
Center Hole Diameter (Metric) UOMmm
Center Hole Diameter (Imperial) UOMin
ApplicationDeburring; Finishing; Grinding; Polishing
IndustriesMarine, Metalworking
Overall Length (Metric) UOMmm
Product ColorBrown
Product FormCartridge Roll
Overall Length (Metric)31.75
Center Hole Diameter (Imperial)0.125
Overall Diameter (Imperial)0.25
Overall Diameter (Imperial) UOMin
Center Hole Diameter (Metric)3.175
Overall Length (Imperial)1.25
Maximum Speed24000.0
Maximum Speed UOMrpm
Roll FormStraight
Overall Diameter (Metric)6.35
Product CategoryCoated Abrasives
Sub IndustriesMetal Fabrication
