Standard Abrasives A/O Unitized Wheel 892173, 921 6 in x 1/4 in x 1/2 in, 10 ea/Case

Sold As: 10-Pack
SKU: 7000144630
MPN: 7000144630
Made to Order: Lead time from 3M is approximately 11 working days.
UPC: 00051115356971
3M ID: 66000032970
5 Digit UPC: 35697
Shelf Life: 3650 Days
Country of Origin: USA
Manufacturer: 3M
Size: 6 in0.25 in
Abrasive Material: Aluminum Oxide
$387.01 ($38.70 / Count)
Hurry up! Current stock:
The extra hard Standard Abrasives Aluminum Oxide 900 Series Unitized Wheel is the most dense and aggressive wheel in the Standard Abrasives Unitized Wheels line. This non-woven abrasive wheel is engineered with the highest level of toughness and edge durability for effective removal of challenging burrs and efficient polishing of harder metals.

Extra Hard Density Wheel Removes Challenging Burrs with Precision and is Effective for Polishing Harder Metals
Our Standard Abrasives Aluminum Oxide 900 Series Unitized Wheel is offered in two grades of aluminum oxide (A/O) mineral: coarse or medium. The combination of extra hard density and coarse mineral enables this wheel to withstand high-pressure applications and cut with force, making it suitable for heavy-duty deburring, cleaning, blending, and finishing.

Use our Standard Abrasives 900 Series A/O Unitized Wheel for removal of heavy flash and parting lines, deburring sharp edges, removal of coarse coated abrasives grind lines and removal of heavy machine tool marks. When it comes to blending, trust this wheel to blend pits in cast parts, refine surfaces on high nickel alloys and blend machined surfaces where wheel rigidity is necessary.

Compatible with a Variety of Tools

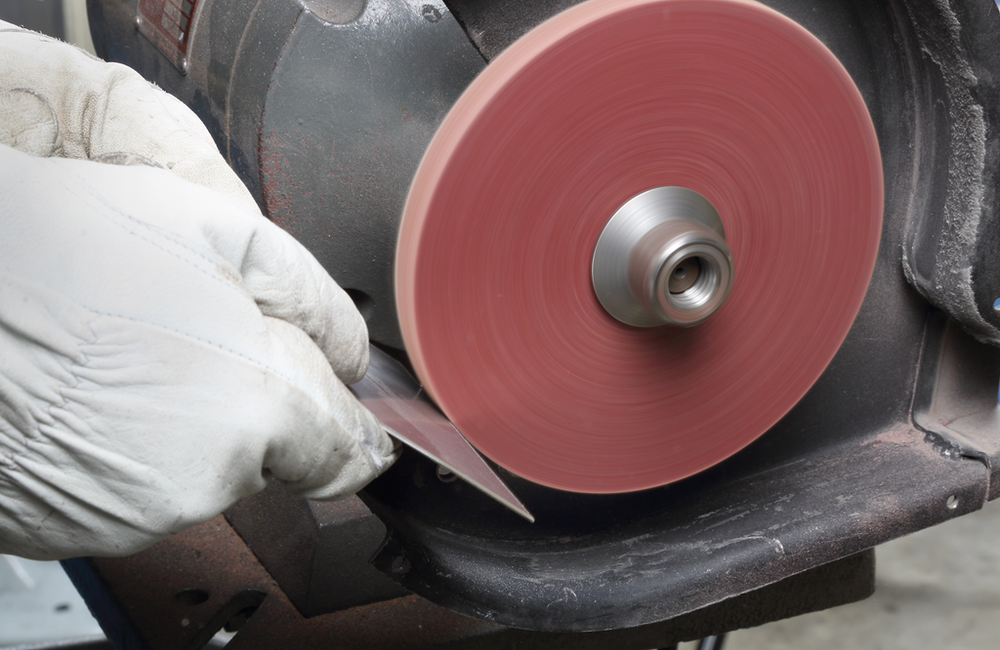

Unitized wheels are typically used on a die grinders. A great benefit of unitized wheels is that they are bi-directional and can be mounted on a tool or pedestal grinder without regard to the direction of the spindle rotation. This means the Standard Abrasives Unitized Wheel can be used with a variety of tools, and regardless of which way the workpiece is fed through the machine, the wheel will be able to respond, giving operators more flexibility. The stiffness of the unitized construction enables operators to use thinner wheels to access awkward angles with grinding tools.

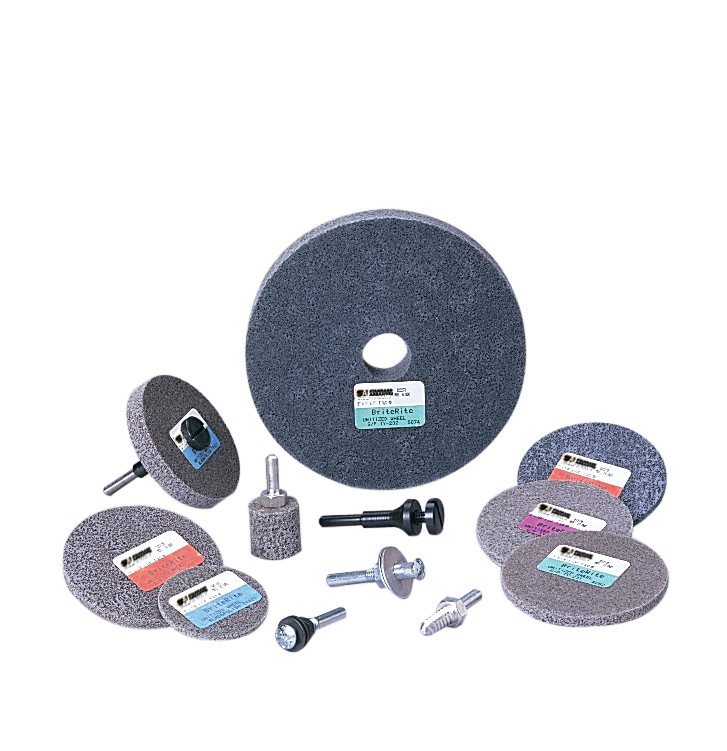

Series 900 wheels comes in a range of diameters from 1-6˝ and requires a unitized wheel mandrel (sold separately) for attachment to the tool. Quick change wheels are also available (sold separately).

Non-Woven Unitized Construction Offers a Step Up in Density and Durability for Stubborn Surfaces
Standard Abrasives Unitized Wheels are a great match for tough deburring, cleaning, blending and finishing applications. They come in a broad range of densities and grades to suit different metals, the degree of aggressiveness required, shape of the part, and desired finish. Although used for some of the same tasks as Standard Abrasives Buff and Blend products, they are designed with a far stronger and denser construction to support more aggressive applications and accomplish material removal more rapidly. Even though unitized wheels are much stiffer products, the non-woven nylon fibers of the wheel maintain the advantage of responding to surface irregularities while preserving the geometry of the piece, and produce a consistent finish.

Unitized wheels are created by starting with layers of open web material that combines non-woven fiber strands and abrasive mineral with a tough resin bond. These layers of web are then cured and compressed together. By fusing layers of open web, the abrasive gains more toughness and durability, so it can withstand repeated wear.

Ultimately, the wheel's durability is what makes it such a good match for edges. Regardless of the diameter or thickness of the wheel, it maintains its structural integrity to remain a stiff and long-lasting abrasive even under high pressure. Additionally, as the layers wear, the wheel can be dressed to maintain its shape.

Load-Resistance Boosts Life and Performance
Standard Abrasives Unitized Wheels are load-resistant to keep you cutting with fresh mineral. The gaps in the open web allow unwanted swarf to escape. Consequently, less debris clogs the abrasive, so the mineral can stay fresh, keep cutting sharp and deliver a consistent cut over the life of the product. As the fibers break down and fresh mineral is exposed, it reduces the likelihood of dull or blunt mineral smearing the surface, contributing to cleaner surfaces and less re-work. Furthermore, manual fatigue that may result from applying heavy pressure to a dull abrasive is reduced.

The Many Benefits of Standard Abrasives Non-Woven Products
Standard Abrasives Unitized Wheels offer many benefits for heavy-duty jobs. For all the aforementioned reasons, Standard Abrasives Unitized Wheels invigorate deburring, cleaning, blending and finishing applications by helping operators reduce finishing steps, minimize costs and achieve greater throughput.

Extra Details

  • Aluminum oxide mineral is a good match for ferrous and non-ferrous metals, including aluminum
  • Center hole wheel comes in a range of diameters from 1-6??and attaches to tools with a unitized wheel mandrel (sold separately)
  • Extra hard density wheel with medium and coarse mineral results in aggressive edge deburring and finishing
  • Harder material density and increased edge durability over 800 Series Unitized Wheels increases life for heavy-duty tasks and hard metals
  • Runs clockwise and counterclockwise, allowing greater versatility when paired with tools and machines
