Safewaze

18” Post Anchor, Concrete - 020-4029

SKU: 020-4029
MPN: 020-4029
Stock Item: Typical lead time for Safewaze products is 1 week.
$201.30
Hurry up! Current stock:

Product Description

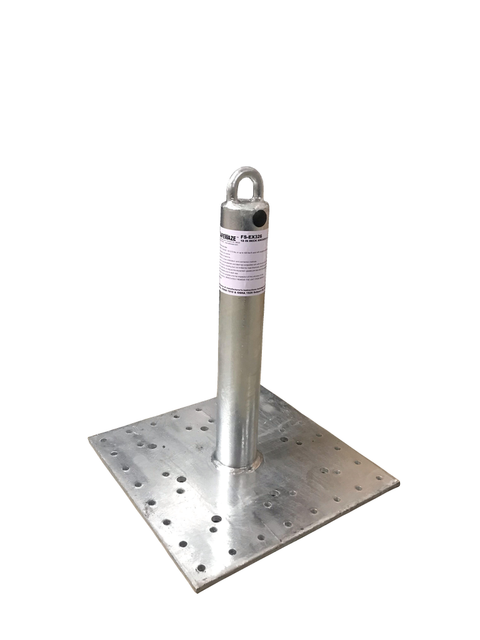

The 18″ Post Anchor is designed to be cast-in-place for use in concrete applications. This permanent anchor can be used as a single point anchor or with a horizontal lifeline system.

Features

  • Corrosion resistant galvanized coating
  • Single user 130-310 lb. ANSI, 420 lbs. OSHA
  • Cast-in-place concrete installation
  • Minimum breaking strength 5,000 lbs.
  • 18" fixed steel anchor point

Materials

  • Galvanized Steel

Specifications

Applicable StandardsMeets OSHA 1926 Subpart M - OSHA 1910; ANSI Z359.1 - ANSI A10.32
Working Load310 lbs. or up to 420 lbs. if used with equipment explicitly certified for such use
Base Dimensions13 in X 13 in (330.2 mm x 330.2 mm)
Minimum Tensile Strength5,000 lbs (2267.96 kg)
