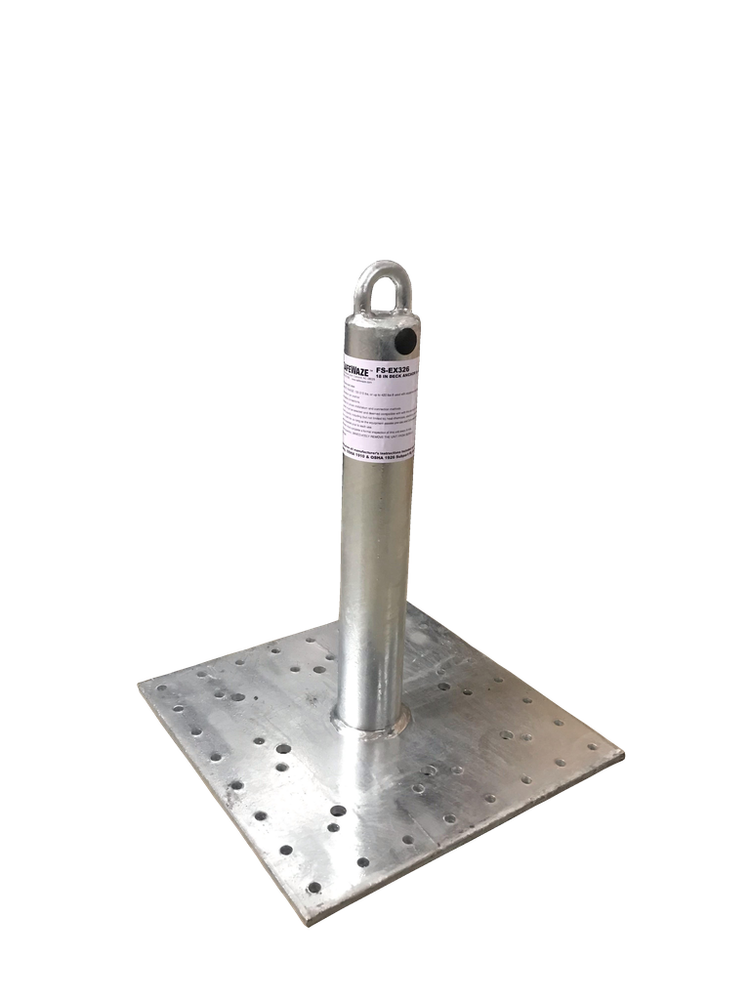

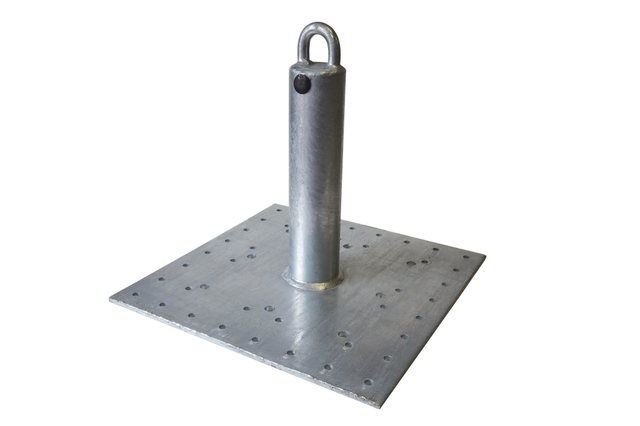

18" Roof Anchor (For Wood, Concrete & Steel) - FS-EX326

Designed for Wood, Concrete and Steel, the Safewaze FS-EX326 18" anchor point is easy to install.

Features

• 20" Overall height from bottom of baseplate to top of loop
• 40 holes in base that fasten with #14-14 2" screws for metal decking (NOT INCLUDED). Screws must penetrate decking by at least 1/4"
• 8 holes in base that fasten with 1/2" Hilit HIT-Z Rods or equivalent for concrete decking (NOT INCLUDED). Minimum 3-1/2" embedment required
• Galvanized steel
• 40 holes in base that fasten with #14-10 2" wood screws (NOT INCLUDED). Screws must extend through deck 3/4" minimum
• Single user
• Minimum 6" thick, 2,500 p.s.i. concrete for concrete installation. All concrete fastener holes must be used
• Easy to install
• 5,000 lbs. Ultimate strength. Supporting structure must have a strength of at least 5,000 lbs.
• 16" x 16" Baseplate Dimensions
• 18"
• Deck requirements are a minimum of 5/8" CDX plywood. All holes must be used
• Minimum 20 gauge steel material for steel installation. All screw holes must be used
• Anchor point post for wood, concrete and steel installation
