3M Products & Supplies

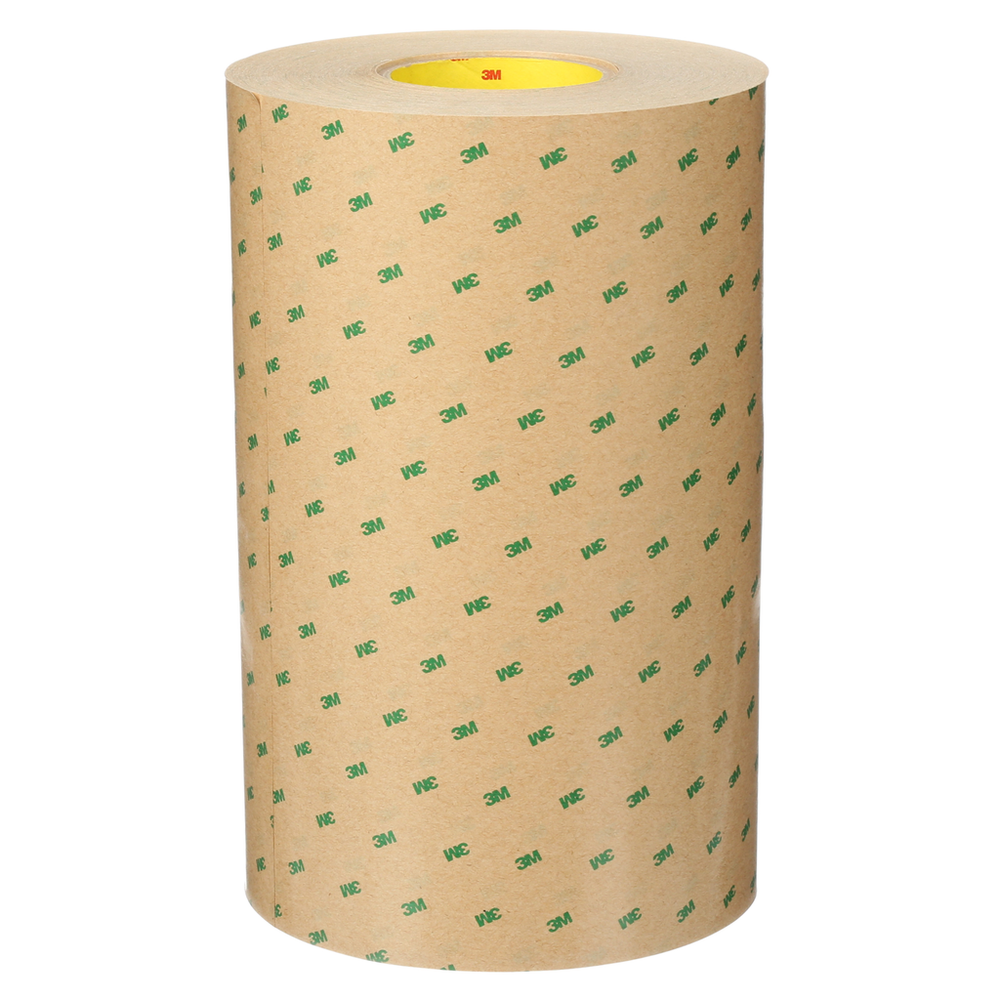

3M™ Adhesive Transfer Tape 9471, Clear, 1 in x 180 yd, 2 mil, 9 Roll/Case - 7100077111

Sold As: 9-Pack
SKU: 7100077111
MPN: 7100077111
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200462801
3M ID: 70006290905
5 Digit UPC: 46280
$748.34 ($83.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9471 offers excellent adhesion to a wide variety of surfaces, including smooth LSE plastics and foam. It is often used as a general purpose transfer tape in a variety of surface bonding applications.

Features

  • 60# Densified Kraft (DK) liner for ease in die-cutting operations
  • High tack acrylic adhesive for low surface energy foams and difficult to bond to surfaces
  • Offers very high initial adhesion for a wide variety of surface bonding
  • Minimal adhesive allows for low profile bond line applications
  • Short term high temperature resistance up to 250°F (121°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Width (Metric)25.4
Maximum Operating Temperature (Celsius)121.0
Adhesive TypeAcrylic
Primary Liner ColorTan
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case9.0
IndustriesAerospace, Appliance, Automotive, Construction, Converter Solutions, Craft, Electronics, Food and Beverage, General Industrial, Military and Government, Packaging, Paper, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Imperial)2.0
Overall Width (Imperial)1.0
Primary Liner Thickness (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Overall Length (Metric)164.59
Total Tape Thickness without Liner (Metric)0.05
Overall Length (Imperial)180.0
Maximum Operating Temperature (Fahrenheit)250.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner60# Densified Kraft Paper
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)3.5
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric)0.09
