3M Products & Supplies

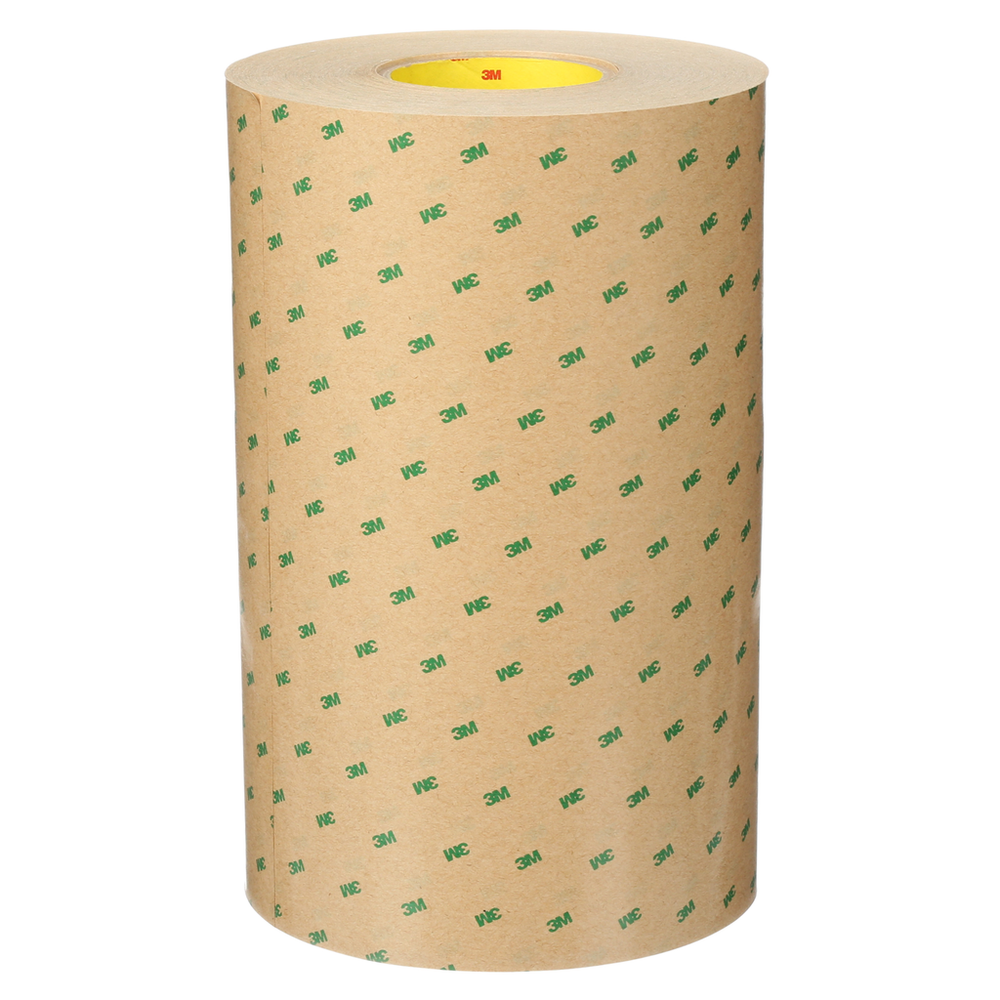

3M™ Adhesive Transfer Tape 9471, Clear, 36 in x 180 yd, 2 mil, 1 Roll/Case - 7000143075

SKU: 7000143075
MPN: 7000143075
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: XT061555865
5 Digit UPC: #VALUE!
$2,993.34 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9471 offers excellent adhesion to a wide variety of surfaces, including smooth LSE plastics and foam. It is often used as a general purpose transfer tape in a variety of surface bonding applications.

Features

  • High tack acrylic adhesive for low surface energy foams and difficult to bond to surfaces
  • Minimal adhesive allows for low profile bond line applications
  • 60# Densified Kraft (DK) liner for ease in die-cutting operations
  • Offers very high initial adhesion for a wide variety of surface bonding
  • Short term high temperature resistance up to 250°F (121°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial)180.0
Maximum Operating Temperature (Celsius)121.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Shelf Life UOMMonth
Units per Case1.0
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner60# Densified Kraft Paper
Overall Length (Metric) UOMm
IndustriesAerospace, Appliance, Automotive, Construction, Converter Solutions, Craft, Electronics, Food and Beverage, General Industrial, Military and Government, Packaging, Paper, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric) UOMcm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Units per Case UOMRoll
Maximum Operating Temperature (Fahrenheit)250.0
Total Tape Thickness without Liner (Imperial)2.0
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Overall Width (Imperial)36.0
Primary Liner Thickness (Imperial)3.5
Primary Liner Thickness (Imperial) UOMmil
Primary Liner ColorTan
Primary Liner Thickness (Metric)0.09
Total Tape Thickness without Liner (Metric)0.05
Overall Width (Metric)91.0
Overall Length (Metric)165.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
