3M Products & Supplies

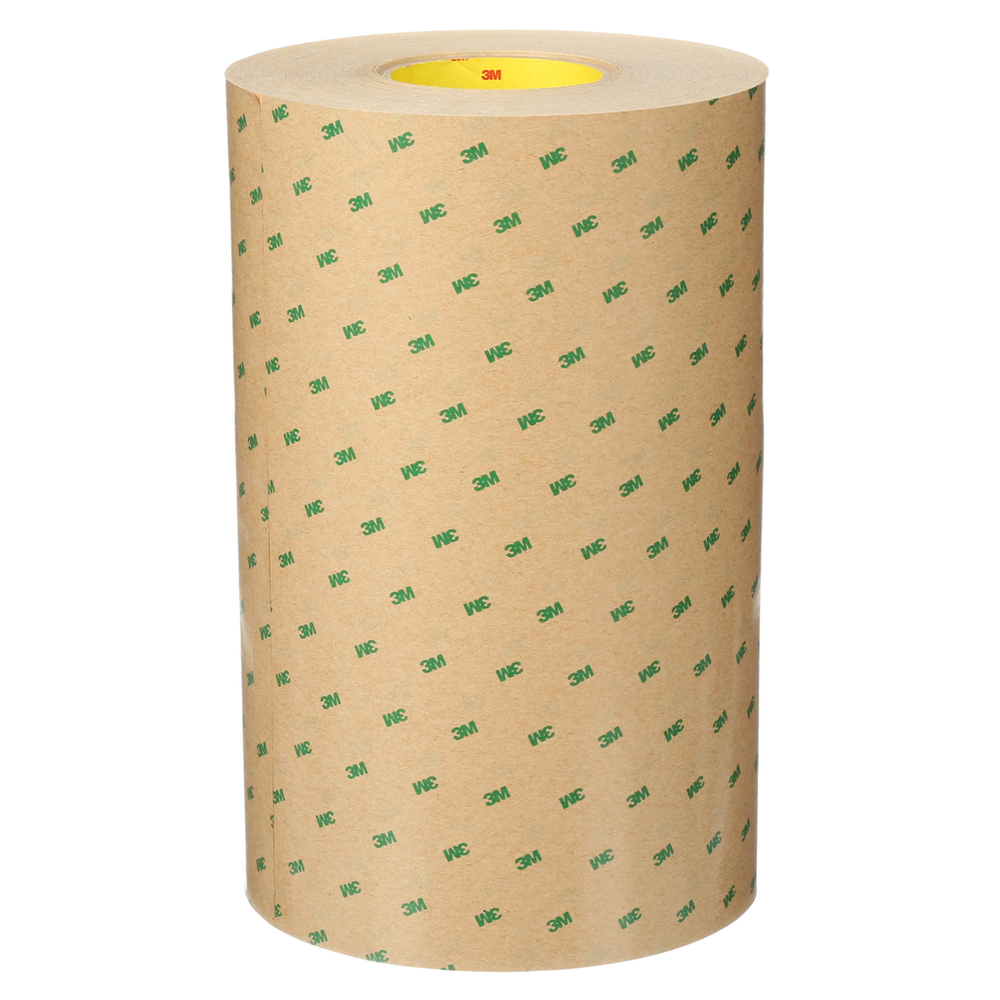

3M™ Adhesive Transfer Tape 9471, Clear, 48 in x 180 yd, 2 mil, 1 Roll/Case - 7000123472

SKU: 7000123472
MPN: 7000123472
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200889646
3M ID: 70006144680
5 Digit UPC: 88964
$3,991.12 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9471 offers excellent adhesion to a wide variety of surfaces, including smooth LSE plastics and foam. It is often used as a general purpose transfer tape in a variety of surface bonding applications.

Features

  • Offers very high initial adhesion for a wide variety of surface bonding
  • Short term high temperature resistance up to 250°F (121°C)
  • High tack acrylic adhesive for low surface energy foams and difficult to bond to surfaces
  • Minimal adhesive allows for low profile bond line applications
  • 60# Densified Kraft (DK) liner for ease in die-cutting operations
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric) UOMm
Overall Width (Imperial)48.0
Primary Liner Thickness (Metric)0.09
Maximum Operating Temperature (Fahrenheit)250.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)2.0
Indoor/OutdoorIndoor/Outdoor
Primary Liner ColorTan
Total Tape Thickness without Liner (Metric)0.05
Total Tape Thickness without Liner (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Construction, Converter Solutions, Craft, Electronics, Food and Beverage, General Industrial, Military and Government, Packaging, Paper, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial)180.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Units per Case UOMRoll
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)1219.2
Primary Liner Thickness (Imperial)3.5
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Imperial) UOMmil
Primary Liner60# Densified Kraft Paper
Units per Case1.0
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)121.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)164.59
Overall Length (Imperial) UOMyd
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
