3M Products & Supplies

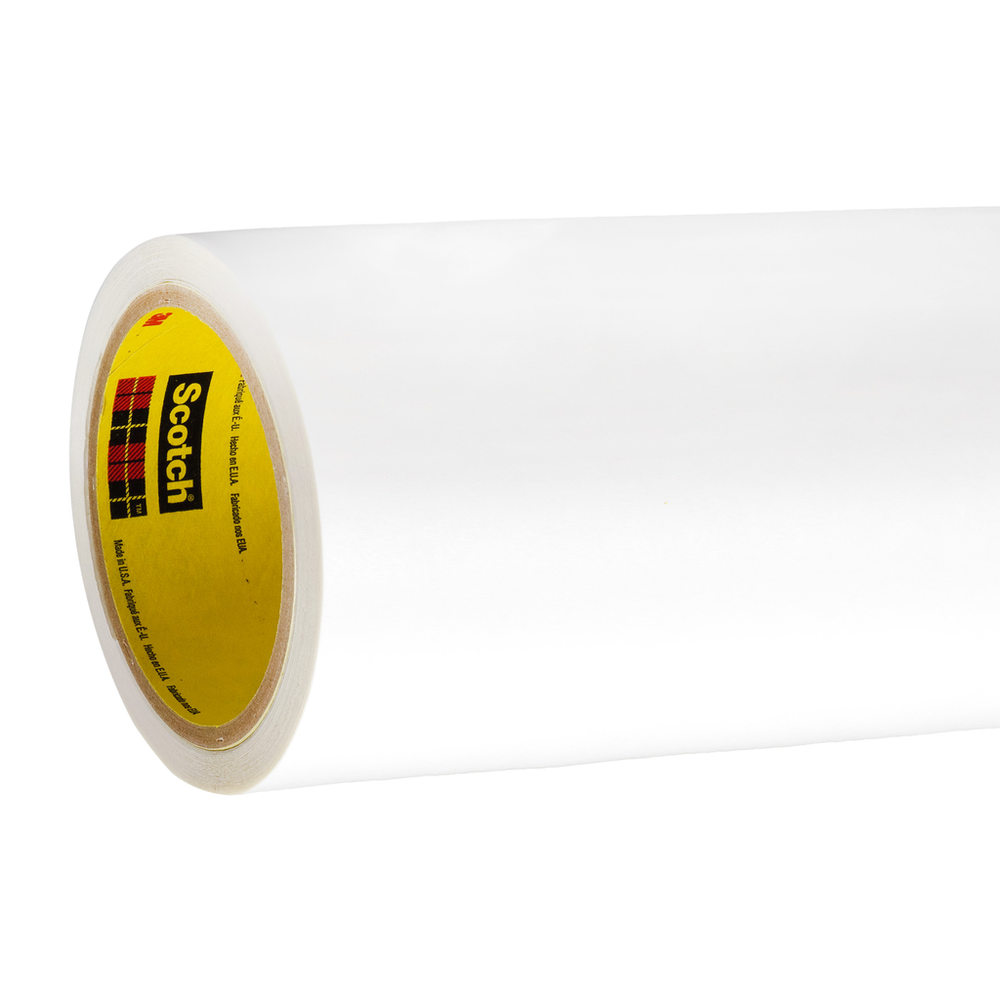

3M™ Adhesive Transfer Tape 9485EK, Clear, 24 in x 180 yd, 5 mil, Roll - 7010535654

Sold As: 2-Pack
SKU: 7010535654
MPN: 7010535654
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998784144
5 Digit UPC: #VALUE!
$9,721.95 ($4860.98 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485EK leverages the power of 3M™ High Performance Acrylic Adhesive 350 and is mounted on a white, 78 lb. extensible kraft paper liner for ease of processing. This transfer tape is an excellent solution bonding high and low surface energy materials. It can also be used for joining materials that have rougher surfaces.

Features

  • 5.0 mils (.127 mm) thick tape provides high bond to low surface energy substrates and powder coated paints
  • Designed for short term temperature exposure up to 450°F (232°C) and long term 300°F (149°C)
  • 78 lb. extensible kraft paper liner for additional strength in narrow width automated dispensing applications
  • Excellent chemical resistance and shear and peel strength even at elevated temperatures
  • Low odor for improved working environment
  • Adhesive is fiber reinforced for roll stability in narrow widths and to resist oozing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner78# Extensible Polycoated Kraft Paper
Primary Liner Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Imperial)24.0
Primary Liner ColorWhite
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial)180.0
Overall Width (Metric)609.6
Primary Liner Thickness (Imperial)6.0
Primary Liner Thickness (Metric)0.15
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMnone
Overall Length (Metric)164.59
Total Tape Thickness without Liner (Metric)0.127
Maximum Operating Temperature (Fahrenheit)450.0
Overall Length (Metric) UOMm
