3M Products & Supplies

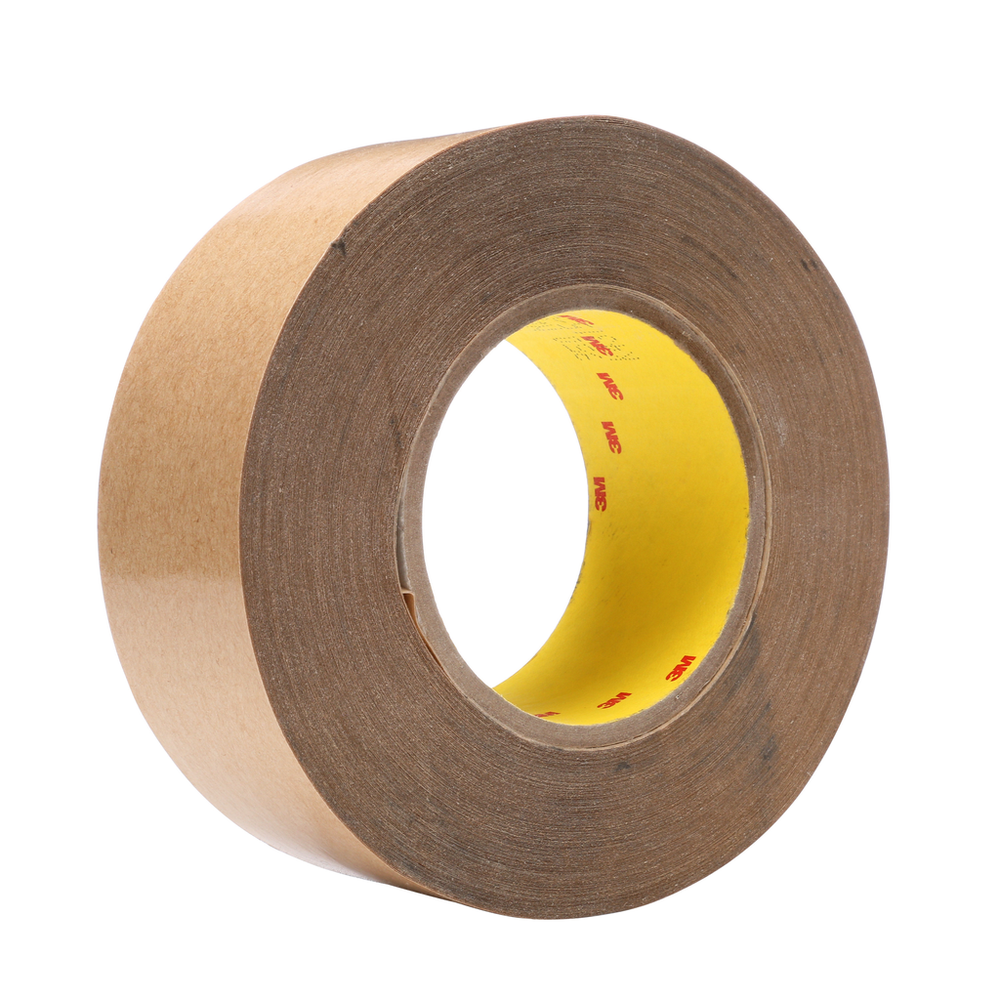

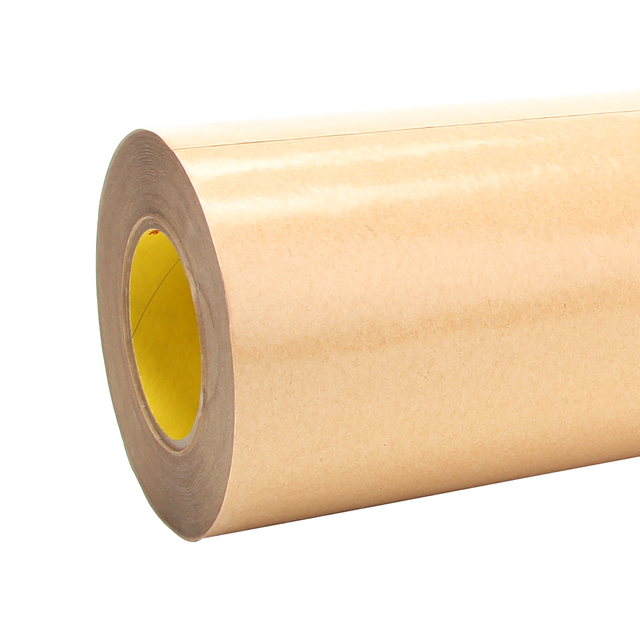

3M™ Adhesive Transfer Tape 950, Clear, 1 3/4 in x 60 yd, 5 mil, 24 Roll/Case - 7010374600

Sold As: 24-Pack
SKU: 7010374600
MPN: 7010374600
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011582030
3M ID: 70006404266
5 Digit UPC: 58203
$2,186.94 ($91.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • Thicker version of 927
  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric)54.86
Units per Case UOMRoll
Primary Liner Thickness (Imperial)3.2
Secondary Liner ColorTan
Secondary Liner Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Overall Width (Imperial)1.75
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Secondary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.08
Overall Length (Metric) UOMm
Product ColorTranslucent
Overall Width (Metric)44.45
Overall Width (Metric) UOMmm
Overall Length (Imperial)60.0
Secondary Liner Thickness (Imperial)3.0
Number of Adhesive SidesDouble-sided
Total Tape Thickness without Liner (Metric)0.127
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)5.0
Primary LinerGlassine Paper
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Maximum Operating Temperature (Fahrenheit)250.0
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric)0.07
Adhesive TypeHigh Strength Acrylic Adhesive 300
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Specifications MetUL 969
Units per Case24.0
Backing (Carrier) Thickness (Metric)0.13
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner ColorTan
Backing (Carrier) Thickness (Metric) UOMmm
Secondary Liner58# Polycoated Kraft Paper
