3M Products & Supplies

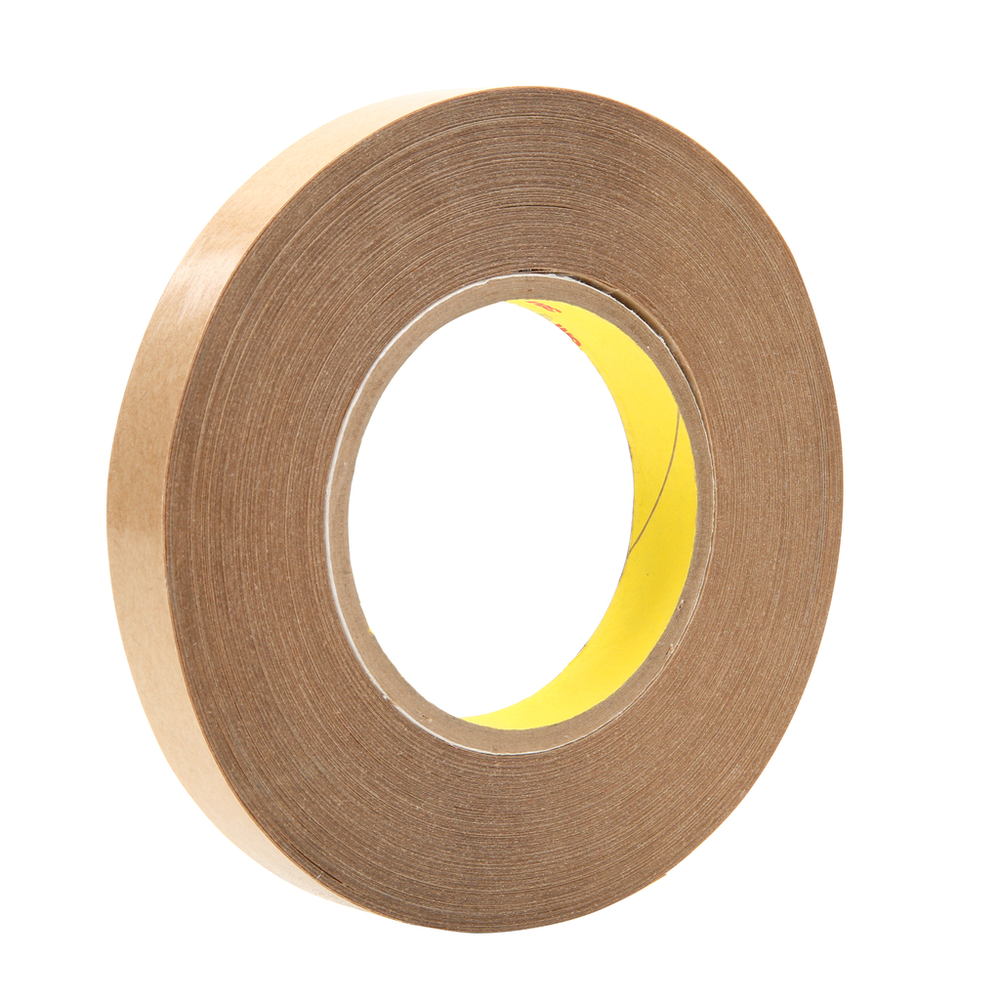

3M™ Adhesive Transfer Tape 950, Clear, 3/4 in x 60 yd, 5 mil, 48 Roll/Case - 7000048416

Sold As: 48-Pack
SKU: 7000048416
MPN: 7000048416
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200045530
3M ID: 70006025657
5 Digit UPC: 4553
$1,874.52 ($39.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
  • Thicker version of 927
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Product ColorTranslucent
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.13
Secondary Liner ColorTan
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Secondary Liner Thickness (Imperial) UOMmil
Secondary Liner58# Polycoated Kraft Paper
Primary Liner ColorTan
Units per Case UOMRoll
Maximum Operating Temperature (Fahrenheit)250.0
Specifications MetUL 969
Primary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Secondary Liner Thickness (Metric)0.07
Total Tape Thickness without Liner (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial)60.0
Minimum Operating Temperature (Celsius) UOMDegree
Primary LinerGlassine Paper
Overall Length (Metric)54.86
Primary Liner Thickness (Imperial)3.2
Adhesive TypeHigh Strength Acrylic Adhesive 300
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.0
Units per Case48.0
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Metric)0.127
Primary Liner Thickness (Metric)0.08
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Secondary Liner Thickness (Imperial)3.0
Overall Width (Metric)19.05
Overall Length (Metric) UOMm
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
