3M Products & Supplies

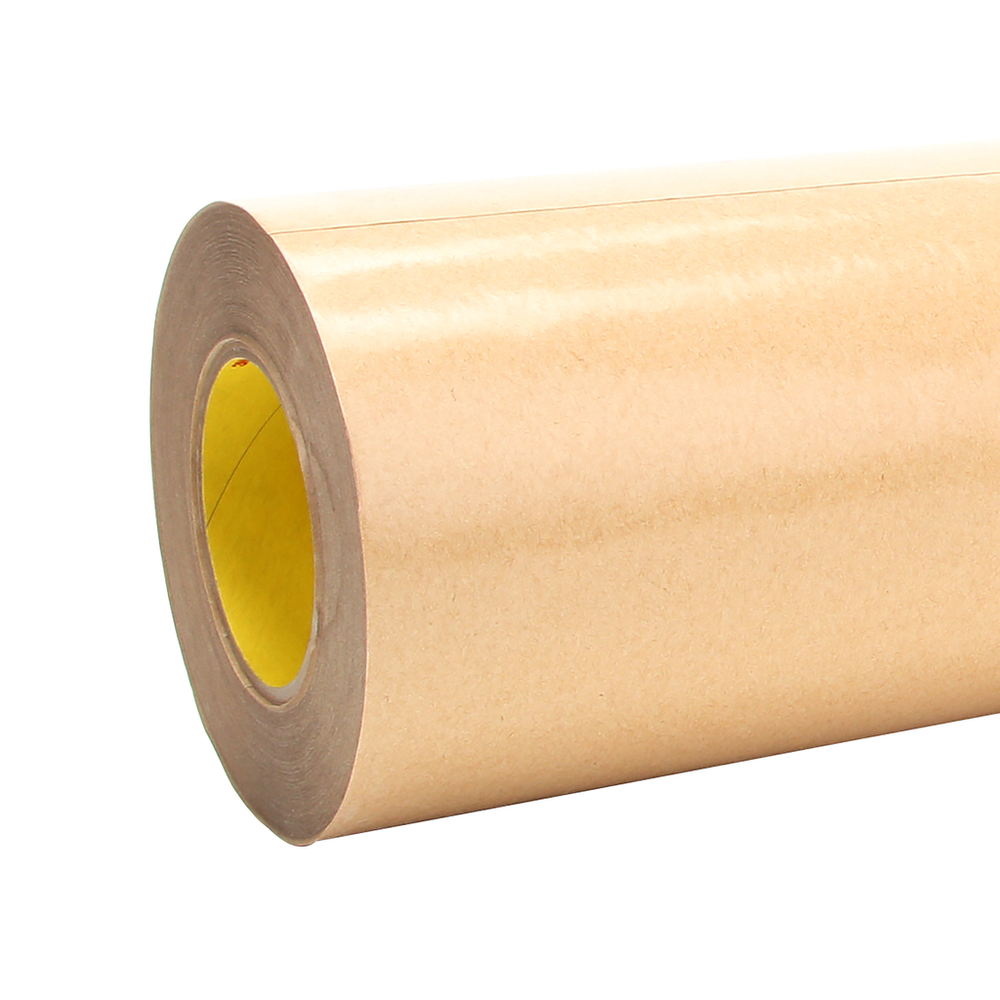

3M™ Adhesive Transfer Tape 950, Clear, 48 in x 60 yd, 5 mil, 1 Roll/Case - 7000001189

SKU: 7000001189
MPN: 7000001189
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200658839
3M ID: 70006161098
5 Digit UPC: 65883
$2,499.37 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • Thicker version of 927
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Units per Case1.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric)55.0
Maximum Operating Temperature (Fahrenheit)250.0
Product ColorTranslucent
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)3.2
Minimum Operating Temperature (Fahrenheit)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.08
Primary LinerGlassine Paper
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Overall Width (Imperial)48.0
Adhesive TypeHigh Strength Acrylic Adhesive 300
Backing (Carrier) Thickness (Metric)0.13
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Number of Adhesive SidesDouble-sided
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner ColorTan
Units per Case UOMRoll
Overall Length (Imperial)60.0
Primary Liner Thickness (Metric) UOMmm
Secondary Liner58# Polycoated Kraft Paper
Specifications MetUL 969
Total Tape Thickness without Liner (Metric)0.127
Secondary Liner Thickness (Metric)0.07
Secondary Liner ColorTan
Secondary Liner Thickness (Imperial) UOMmil
Overall Width (Metric)1219.0
Indoor/OutdoorIndoor/Outdoor
Shelf Life UOMMonth
Secondary Liner Thickness (Imperial)3.0
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
