3M Products & Supplies

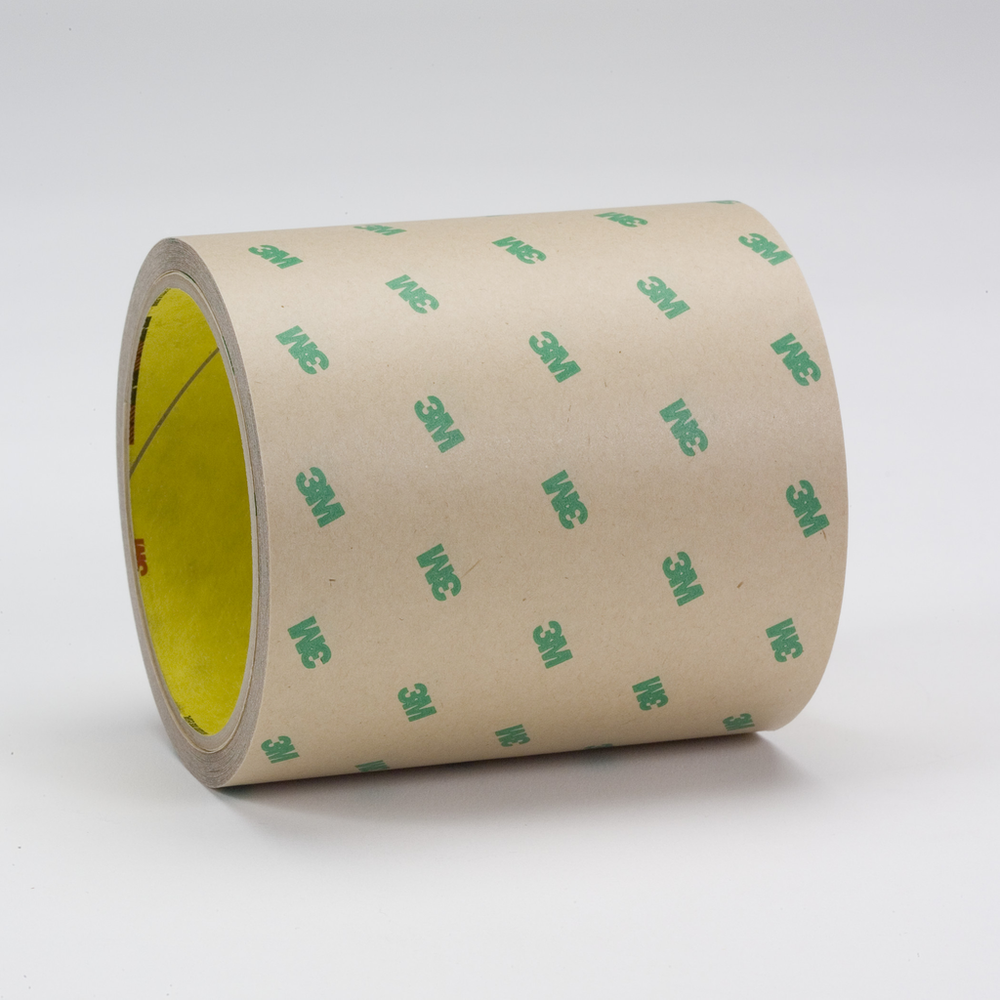

3M™ Adhesive Transfer Tape 9502, Clear, 12.75 in x 180 yd, 2 Mil, 1/Case - 7010374022

SKU: 7010374022
MPN: 7010374022
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200461057
3M ID: 70006290137
5 Digit UPC: 46105
$449.57 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9502 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 2.3 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Features

  • Economical solution for a variety of general bonding applications
  • PCK liner protects adhesive and peels away quickly for easy handling
  • 2 mil nominal 220 adhesive offers good sheer strength
  • Good peel adhesion to HSE (high surface energy) materials
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Units per Case1.0
Primary Liner Thickness (Imperial)4.2
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)350.0
Overall Length (Imperial)180.0
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.051
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)2.0
Product CategoryAdhesives
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Primary Liner58# Polycoated Kraft Paper
Primary Liner Thickness (Metric)0.11
Units per Case UOMRoll
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Metalworking, Point of Purchase, Print, Signage, Woodworking
Overall Length (Metric)164.59
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)12.75
Primary Liner ColorTan
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Adhesive TypeAcrylic
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius)177.0
Overall Width (Metric) UOMmm
Overall Width (Metric)323.85
