3M Products & Supplies

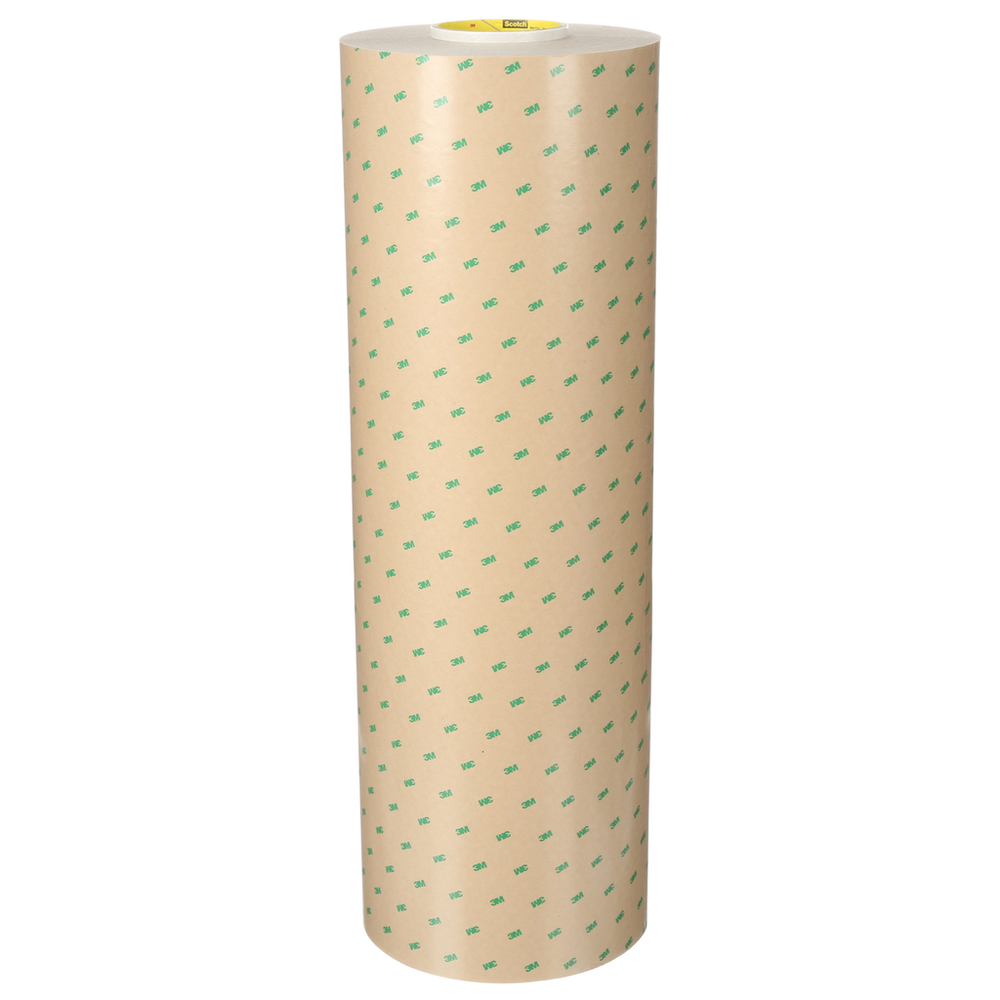

3M™ Adhesive Transfer Tape 9502, Clear, 48 in x 180 yd, 2 mil, 1 Roll/Case - 7000048894

SKU: 7000048894
MPN: 7000048894
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50021200563190
3M ID: 70006293594
5 Digit UPC: 56319
$1,692.48 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9502 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 2.3 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Features

  • 2 mil nominal 220 adhesive offers good sheer strength
  • PCK liner protects adhesive and peels away quickly for easy handling
  • Good peel adhesion to HSE (high surface energy) materials
  • Economical solution for a variety of general bonding applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)350.0
Units per Case1.0
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Metalworking, Point of Purchase, Print, Signage, Woodworking
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric)0.11
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius)177.0
Minimum Operating Temperature (Fahrenheit)-40.0
Product CategoryAdhesives
Units per Case UOMRoll
Total Tape Thickness without Liner (Metric)0.051
Overall Width (Imperial)48.0
Primary Liner Thickness (Imperial) UOMmil
Primary Liner ColorTan
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMMonth
Overall Width (Imperial) UOMin
Overall Length (Metric)164.59
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)2.0
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)4.2
Primary Liner58# Polycoated Kraft Paper
Overall Length (Metric) UOMm
Overall Length (Imperial)180.0
Overall Width (Metric)1219.2
