3M Products & Supplies

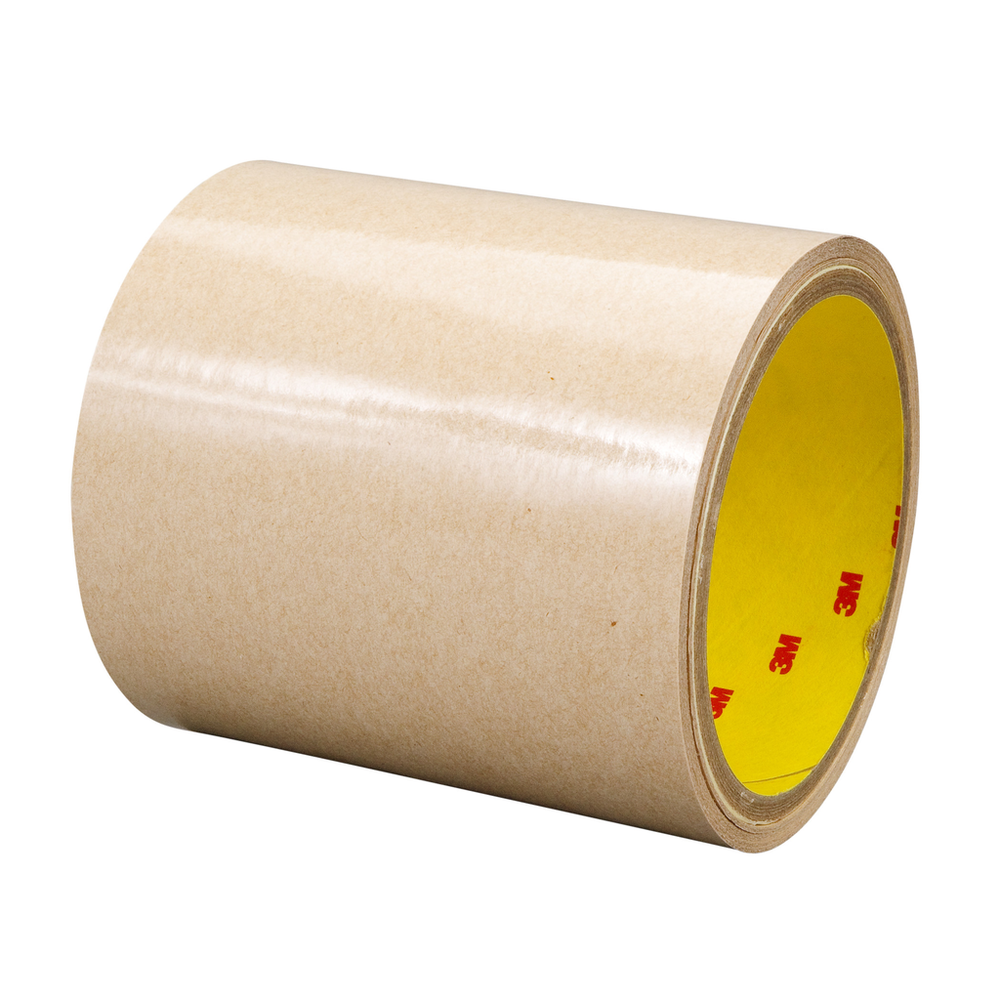

3M™ Adhesive Transfer Tape 9626, Clear, 48 in x 180 yd, 2 mil, 1 Roll/Case - 7100166326

SKU: 7100166326
MPN: 7100166326
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111918982
3M ID: 70006705365
5 Digit UPC: 91898
$3,762.17 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9626 immediately bonds to high and low surface energy materials. The 60# glassine paper liner provides dimensional stability and improved handling with ease in die cutting and laminating applications.

Features

  • Exceptional adhesion properties and bonds well to high and low surface energy plastics
  • Natural, 2 mil (0.06 mm) adhesive transfer tape on a 60# glassine paper liner
  • Good solvent and moisture resistance
  • Laminating adhesive format provides good conformability to irregular surfaces
  • Quick stick adhesion and immediate bond
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-40.0
Adhesive TypeAcrylic
Primary Liner ColorTan
Overall Length (Metric)164.59
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Celsius)93.0
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Primary Liner60# Glassine Paper
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)180.0
Total Tape Thickness without Liner (Imperial)2.0
Overall Width (Metric)1219.2
Primary Liner Thickness (Imperial) UOMnone
Overall Length (Metric) UOMm
Primary Liner Thickness (Metric) UOMmm
Units per Case1.0
Primary Liner Thickness (Metric)0.08
IndustriesAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation, Woodworking
Overall Width (Imperial)48.0
Maximum Operating Temperature (Fahrenheit)200.0
Total Tape Thickness without Liner (Metric)0.05
Units per Case UOMRoll
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Imperial)3.2
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
