3M Products & Supplies

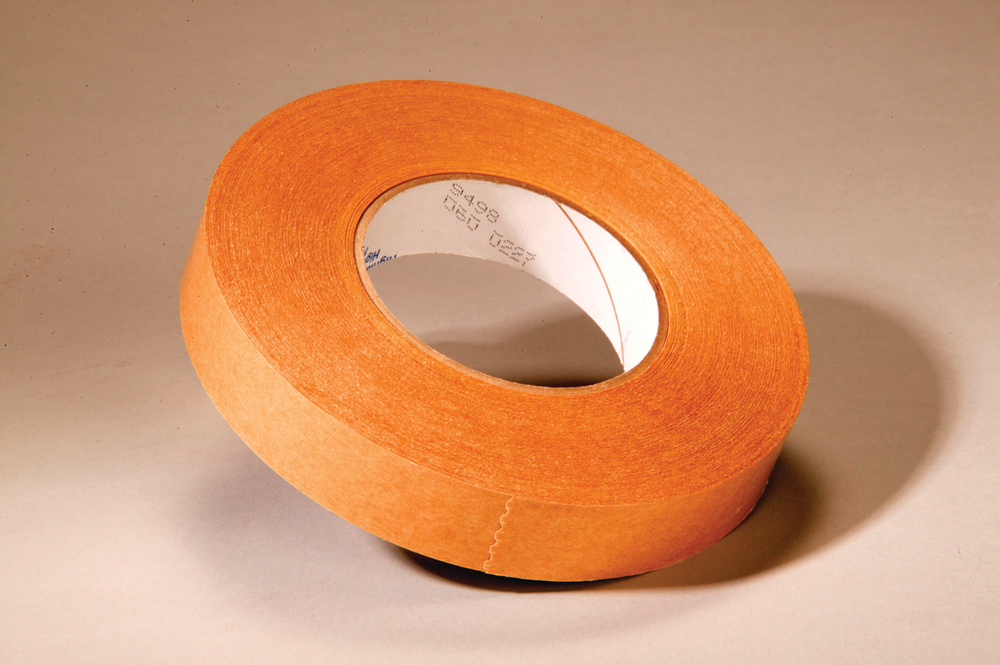

3M™ Adhesive Transfer Tape 9498, Clear, 48 in x 180 yd, 2 mil, 1 Roll/Case - 7010334400

SKU: 7010334400
MPN: 7010334400
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407888
3M ID: 70006255718
5 Digit UPC: 40788
$2,159.86 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9498 offers excellent flying splice and core starting wet grab characteristics. It is typically used in the printing industry and performs well at process speeds exceeding 2,000 feet per minute. This tape can be used in ovens up to 450ºF (232ºC) if dwell times are ten seconds or less and up to 250⁰F (232⁰C) for longer periods.

Features

  • 60lb Densified Kraft (DK) liner for ease in die-cutting operations
  • Ultra-high peel strength and excellent shear strength to withstand rigorous splicing applications
  • Moderate temperature resistance up to 250⁰F (121⁰C)
  • Bonds well to most substrates, including low surface energy plastics
  • Conformable to irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Units per Case UOMRoll
IndustriesPaper
Total Tape Thickness without Liner (Metric)0.05
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner ColorTan
Overall Length (Metric)164.59
Primary Liner Thickness (Imperial) UOMmil
ApplicationZero-Speed and General Splicing
Total Tape Thickness without Liner (Imperial)2.0
Units per Case1.0
Overall Length (Imperial)180.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-60.0
Maximum Operating Temperature (Fahrenheit)250.0
Primary Liner Thickness (Metric)0.09
Primary Liner Thickness (Imperial)3.5
Overall Width (Imperial)48.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)1219.2
Primary Liner60# Densified Kraft Paper
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
