3M Products & Supplies

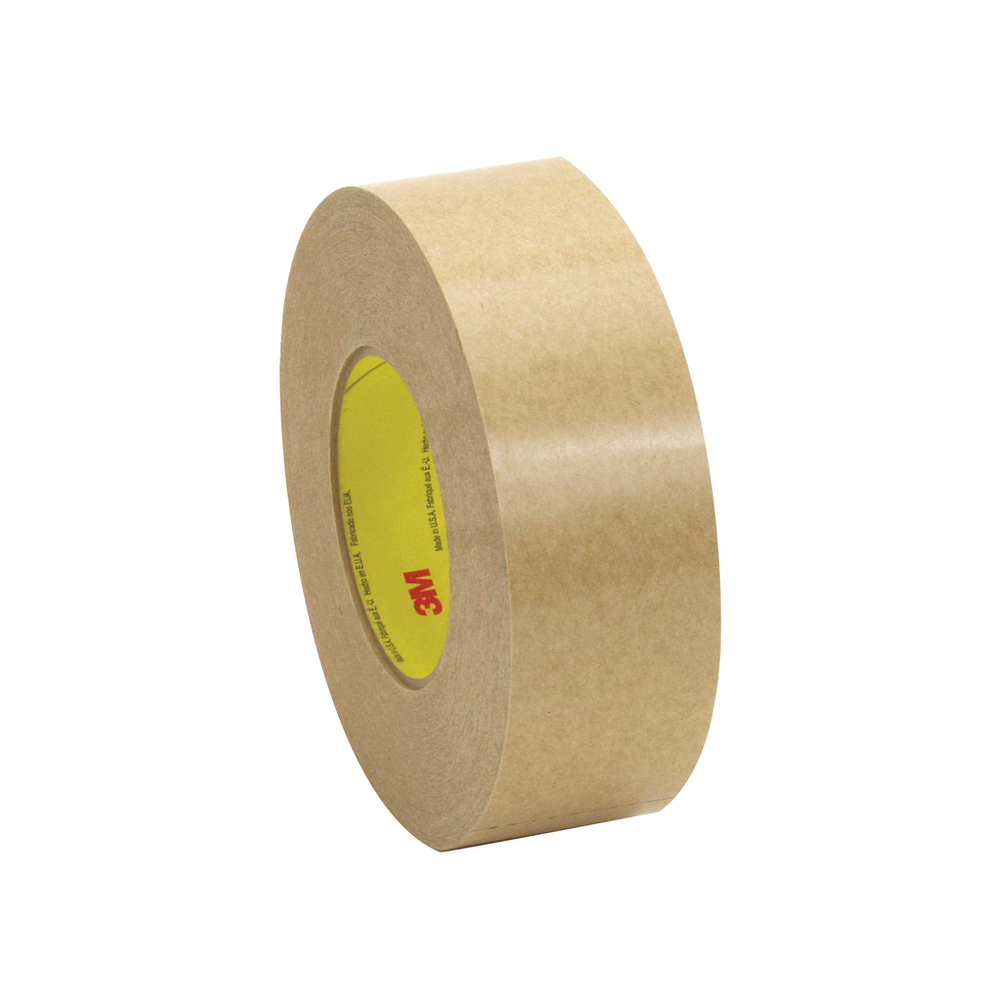

3M™ Adhesive Transfer Tape 9498, Clear, 48 in x 120 yd, 2 mil, Roll - 7010535929

SKU: 7010535929
MPN: 7010535929
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998786917
5 Digit UPC: #VALUE!
$1,439.92 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9498 offers excellent flying splice and core starting wet grab characteristics. It is typically used in the printing industry and performs well at process speeds exceeding 2,000 feet per minute. This tape can be used in ovens up to 450ºF (232ºC) if dwell times are ten seconds or less and up to 250⁰F (232⁰C) for longer periods.

Features

  • Moderate temperature resistance up to 250⁰F (121⁰C)
  • Bonds well to most substrates, including low surface energy plastics
  • Conformable to irregular surfaces
  • 60lb Densified Kraft (DK) liner for ease in die-cutting operations
  • Ultra-high peel strength and excellent shear strength to withstand rigorous splicing applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.05
Overall Length (Metric)109.73
Total Tape Thickness without Liner (Imperial)2.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)48.0
Overall Length (Imperial)120.0
ApplicationZero-Speed and General Splicing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Primary Liner60# Densified Kraft Paper
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner ColorTan
Minimum Operating Temperature (Fahrenheit)-60.0
Overall Width (Metric)1219.2
Maximum Operating Temperature (Fahrenheit)250.0
Primary Liner Thickness (Imperial)3.5
Primary Liner Thickness (Metric)0.09
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
