3M Products & Supplies

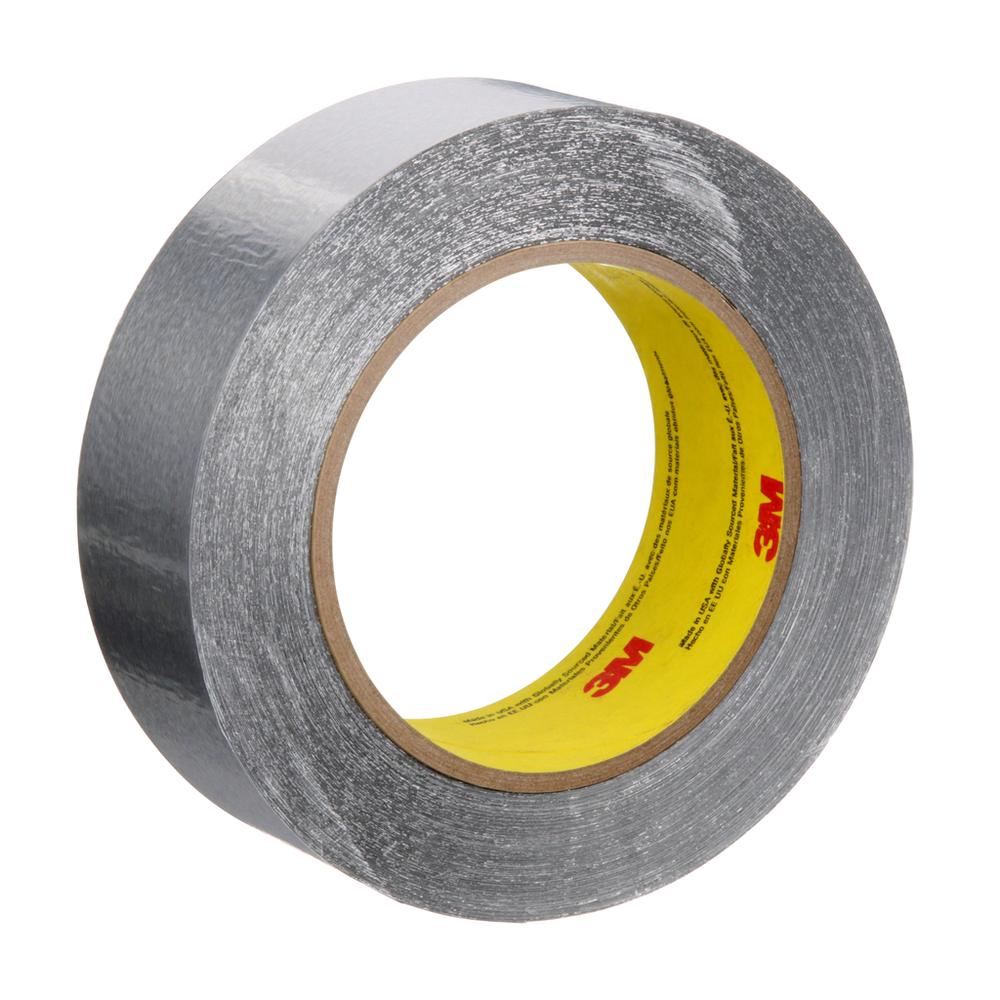

3M™ Aluminum Foil Tape 425, LT80, Silver, 1 1/2 in x 60 yd, 4.6 mil, 16 Rolls/Case - 7100229070

Sold As: 32-Pack
SKU: 7100229070
MPN: 7100229070
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060407097
3M ID: 70007544110
5 Digit UPC: 40709
$1,987.58 ($62.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Withstands exposure to flame, weathering, moisture and UV
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.07
Overall Width (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Backing MaterialAluminum Foil
Maximum Operating Temperature (Celsius)149.0
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMMonth
Product ColorSilver
Overall Width (Imperial)1.5
Overall Length (Metric)54.864
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Imperial)1.8
Backing (Carrier) Thickness (Imperial)2.8
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)300.0
Tensile Strength (Metric)49.0
Overall Width (Imperial) UOMin
Overall Width (Metric)38.1
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) MaterialAluminum Foil
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-54.0
Back Side Adhesive Thickness (Imperial) UOMmil
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)4.6
Tensile Strength (Imperial)28.0
Overall Length (Imperial)60.0
Minimum Operating Temperature (Fahrenheit)-65.0
Back Side Adhesive Thickness (Metric)0.05
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Elongation at Break6
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Overall Length (Imperial) UOMyd
