3M Products & Supplies

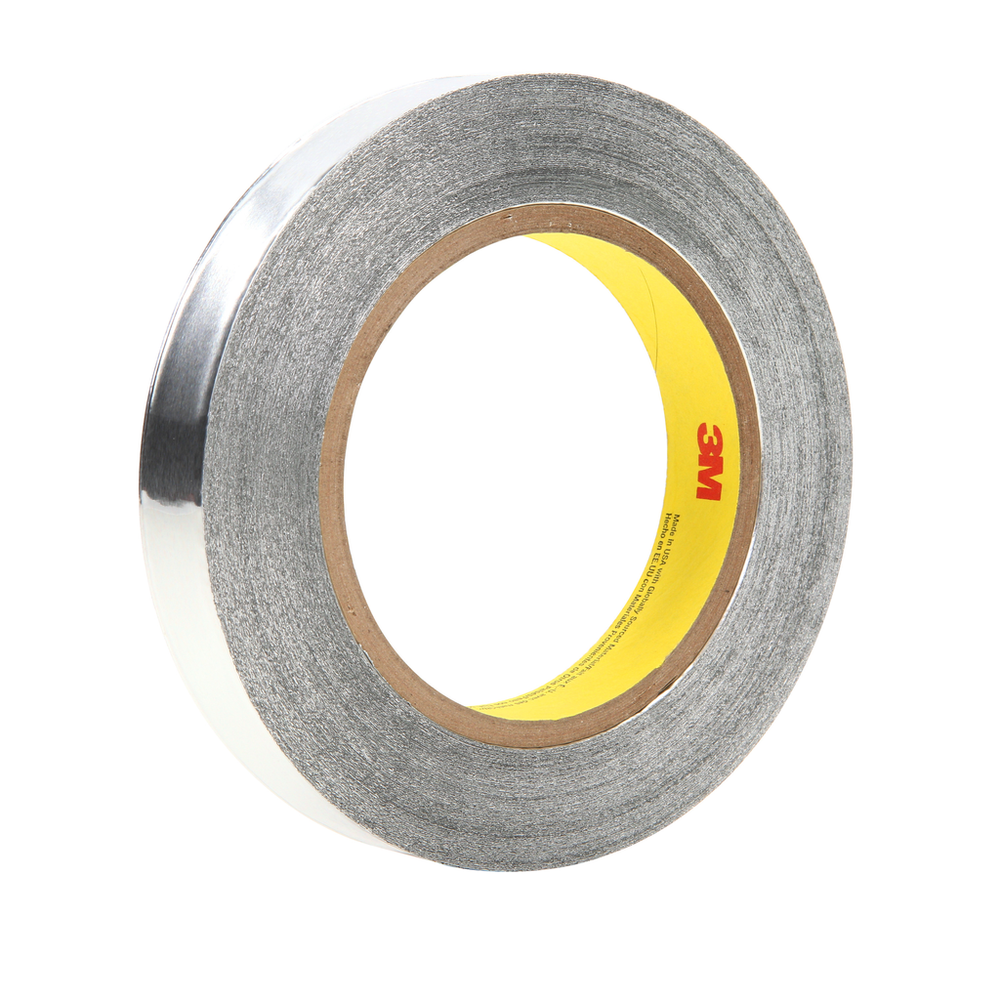

3M™ Aluminum Foil Tape 425 LT80, Silver, 1 in x 60 yd, 4.6 mil, 24 Rolls/Case - 7100229066

Sold As: 48-Pack
SKU: 7100229066
MPN: 7100229066
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060407660
3M ID: 70007544961
5 Digit UPC: 40766
$1,988.10 ($41.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Withstands exposure to flame, weathering, moisture and UV
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)4.6
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Imperial)60.0
Tensile Strength (Metric)49.0
Maximum Operating Temperature (Celsius)149.0
Tensile Strength (Imperial) UOMlb/in
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Adhesive TypeAcrylic
Backing MaterialAluminum Foil
Backing (Carrier) Thickness (Metric)0.07
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break6
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Product ColorSilver
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)2.8
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)54.864
Minimum Operating Temperature (Celsius)-54.0
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialAluminum Foil
Overall Width (Metric)25.4
Tensile Strength (Imperial)28.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.05
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)1.0
Back Side Adhesive Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Imperial)1.8
Minimum Operating Temperature (Celsius) UOMDegree
