3M Products & Supplies

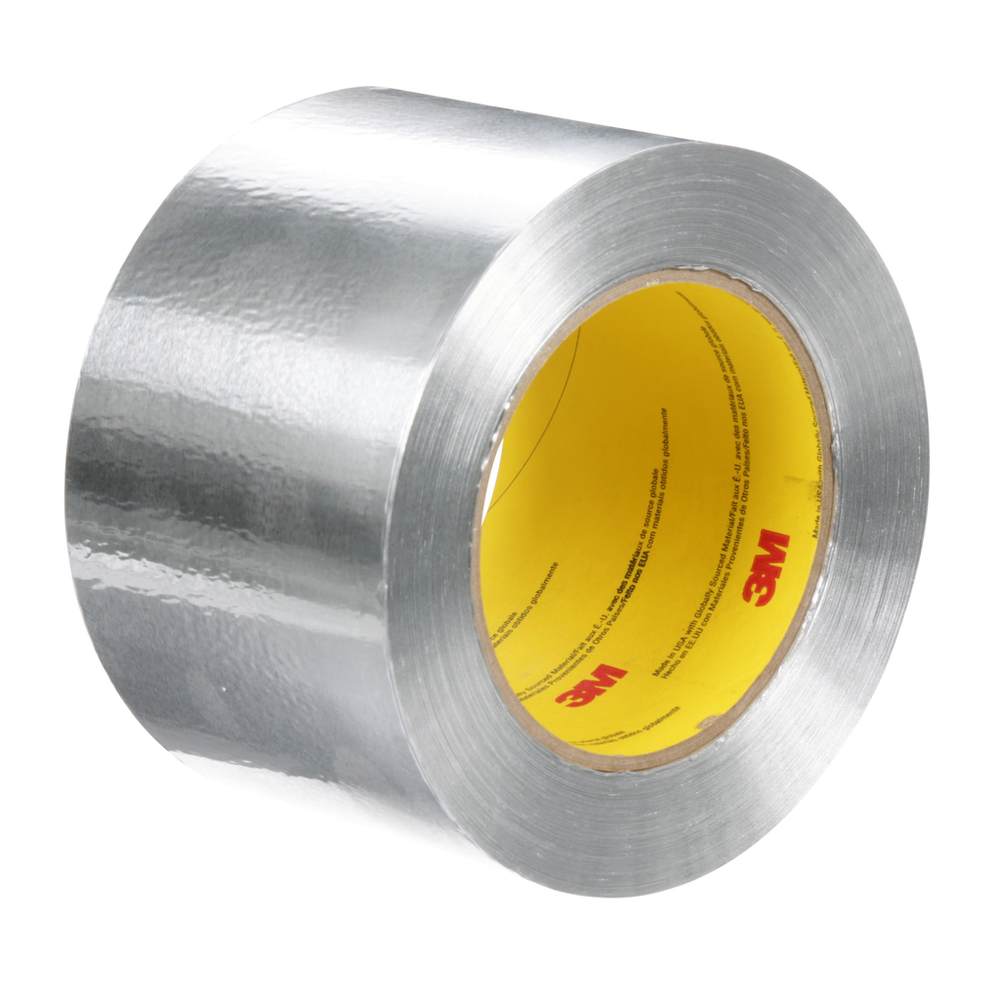

3M™ Aluminum Foil Tape 425 LT80, Silver, 3 in x 60 yd, 4.6 mil, 8 Rolls/Case - 7100229732

Sold As: 16-Pack
SKU: 7100229732
MPN: 7100229732
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060407066
3M ID: 70007544086
5 Digit UPC: 40706
$1,987.44 ($124.22 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Withstands exposure to flame, weathering, moisture and UV
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)2.8
Overall Width (Metric)76.2
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Backing MaterialAluminum Foil
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)60.0
Rolls per Case12.0
Product ColorSilver
Overall Width (Imperial)3.0
Elongation at Break6
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Fahrenheit)-65.0
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.07
Maximum Operating Temperature (Fahrenheit)300.0
Backing (Carrier) MaterialAluminum Foil
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Tensile Strength (Imperial)28.0
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)4.6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric)49.0
Minimum Operating Temperature (Celsius)-54.0
Back Side Adhesive Thickness (Imperial)1.8
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric)54.86
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius)149.0
Adhesive TypeAcrylic
Back Side Adhesive Thickness (Metric)0.05
