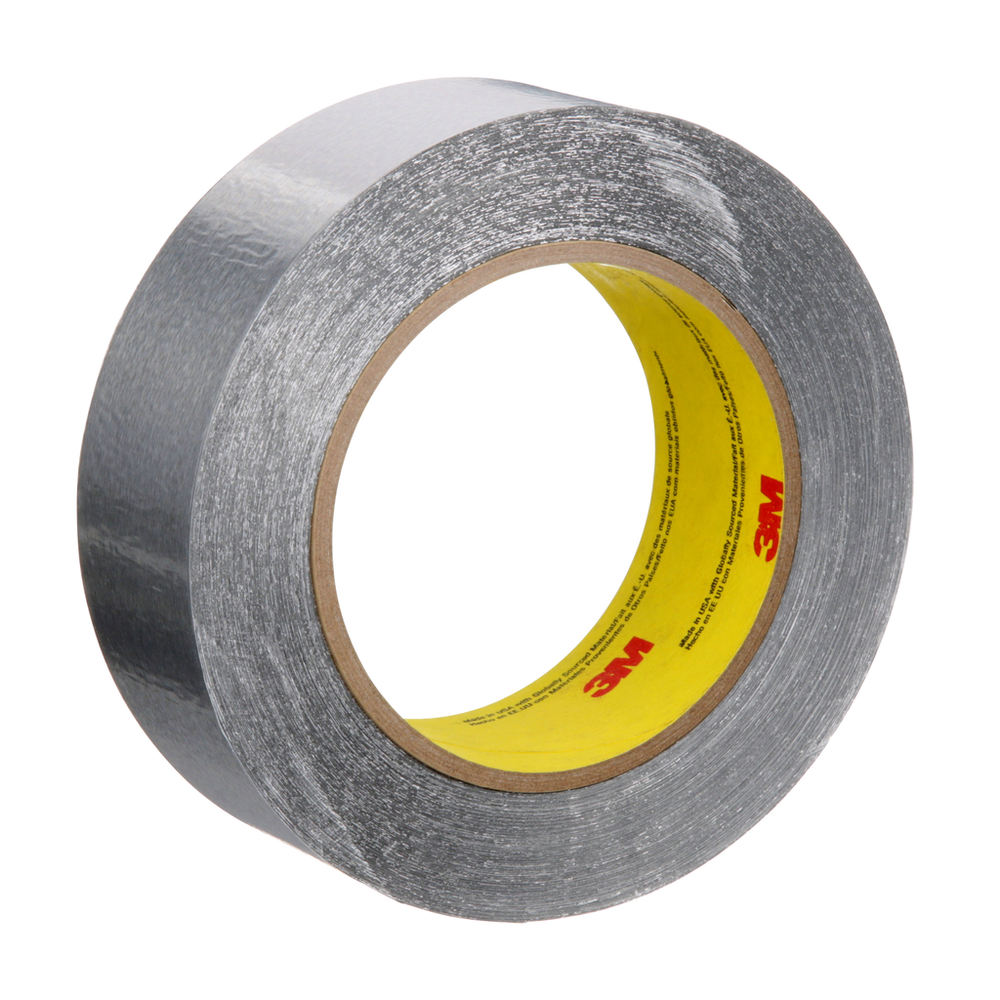

3M™ Aluminum Foil Tape 425, Silver, 1 1/2 in x 60 yd, 4.6 mil, 24 Roll/Case - 7100053917

Sold As: 24-Pack
SKU: 7100053917
MPN: 7100053917
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051125853101
3M ID: 70008500525
5 Digit UPC: 85310
$1,490.68 ($62.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Withstands exposure to flame, weathering, moisture and UV
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)2.8
Back Side Adhesive Thickness (Imperial)1.8
Backing (Carrier) MaterialAluminum Foil
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Overall Width (Metric) UOMcm
Minimum Operating Temperature (Celsius)-54.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Metric)0.05
Tensile Strength (Imperial)28.0
Tensile Strength (Metric)49.0
Backing MaterialAluminum Foil
Overall Width (Imperial) UOMin
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Metric)54.9
Product ColorSilver
Elongation at Break6
Minimum Operating Temperature (Fahrenheit)-65.0
Backing (Carrier) Thickness (Metric)0.07
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Overall Width (Imperial)1.5
Maximum Operating Temperature (Fahrenheit)300.0
Maximum Operating Temperature (Celsius)149.0
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)4.6
Overall Width (Metric)3.8
Shelf Life UOMMonth
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Overall Length (Imperial)60.0
