3M Products & Supplies

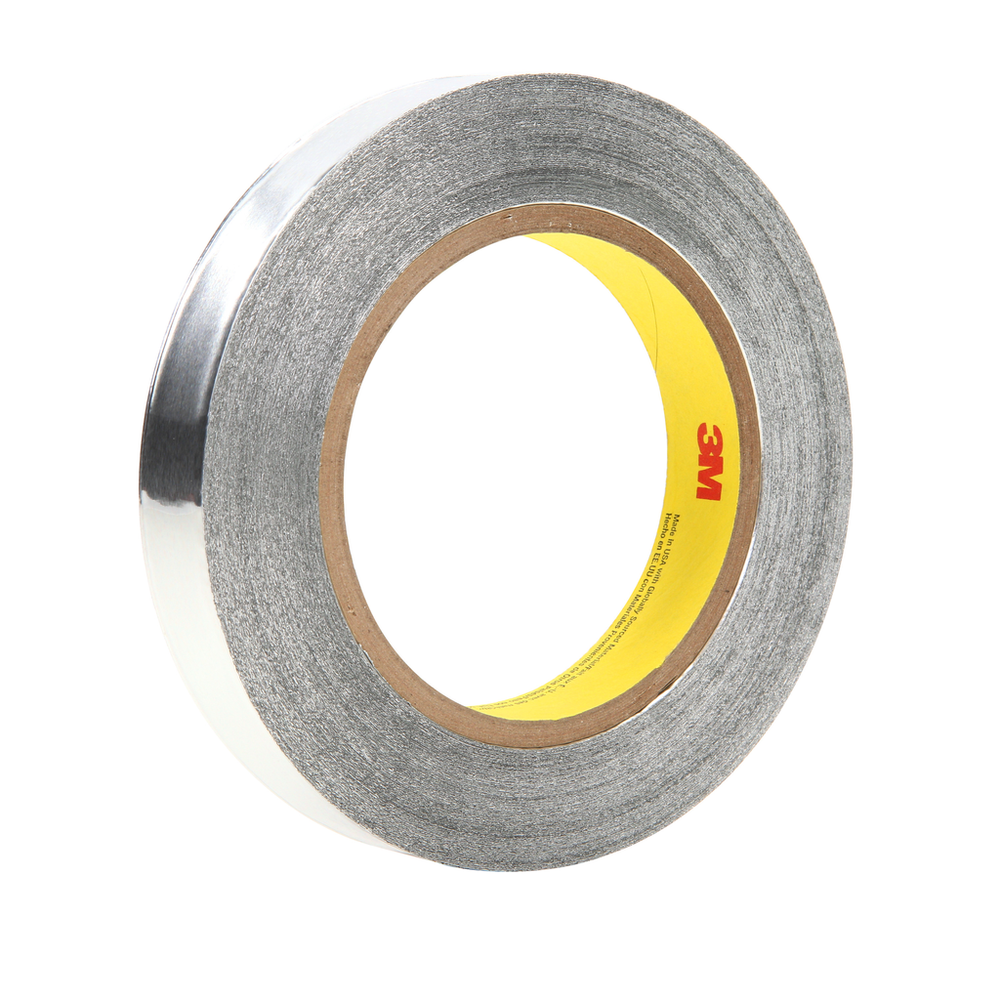

3M™ Aluminum Foil Tape 425, Silver, 12 mm x 55 m, 4.6 mil, 48 Rolls/Case - 7100229093

Sold As: 96-Pack
SKU: 7100229093
MPN: 7100229093
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060407646
3M ID: 70007544946
5 Digit UPC: 40764
$2,290.94 ($23.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Withstands exposure to flame, weathering, moisture and UV
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Metric)0.05
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)28.0
Overall Length (Metric)55.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial)60.149
Backing (Carrier) Thickness (Imperial)2.8
Minimum Operating Temperature (Fahrenheit)-65.0
Product ColorSilver
Total Tape Thickness without Liner (Imperial)4.6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing MaterialAluminum Foil
Overall Length (Metric) UOMm
Backing (Carrier) MaterialAluminum Foil
Tensile Strength (Imperial) UOMlb/in
Shelf Life UOMMonth
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)149.0
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Tensile Strength (Metric)49.0
Elongation at Break6
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Adhesive TypeAcrylic
Back Side Adhesive Thickness (Imperial)1.8
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.07
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Imperial)0.472
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Celsius)-54.0
Overall Width (Metric)12.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
