3M Products & Supplies

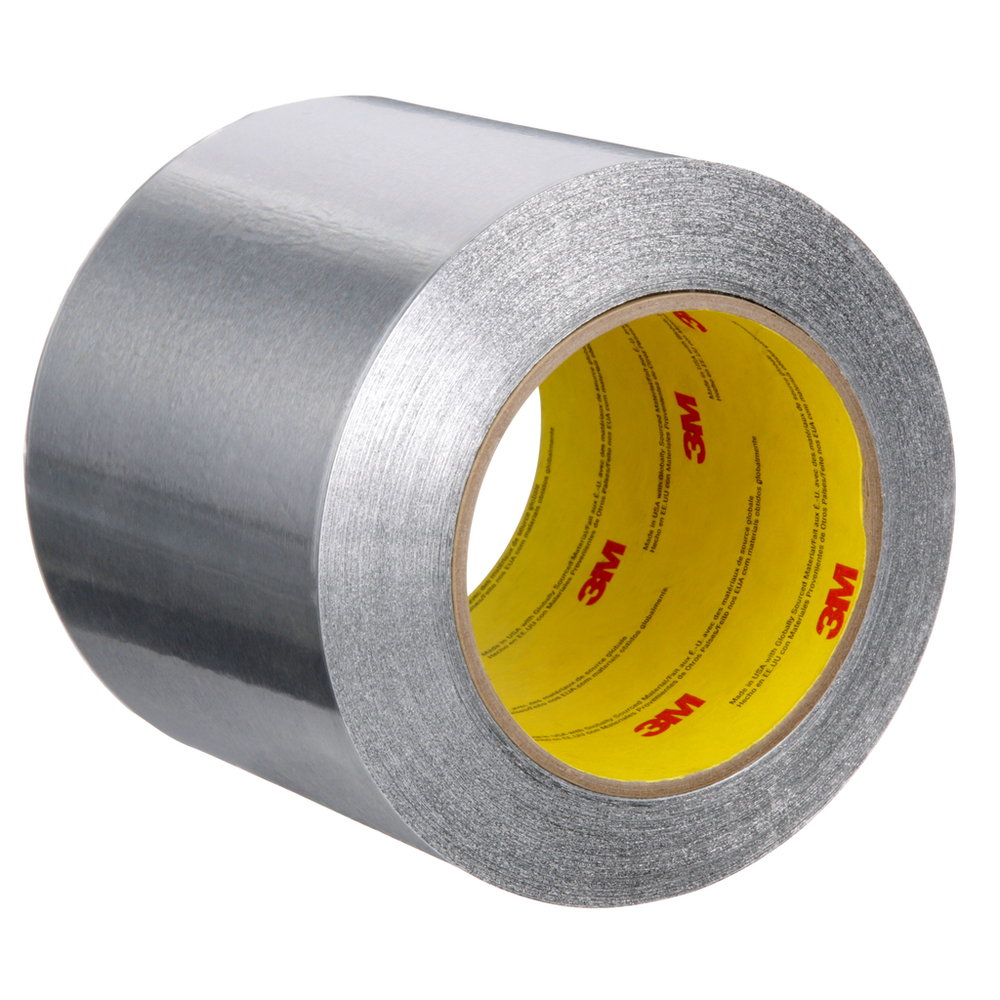

3M™ Aluminum Foil Tape 425, Silver, 96 mm x 55 m, 4.6 mil, 12 Roll/Case - 7010379578

Sold As: 24-Pack
SKU: 7010379578
MPN: 7010379578
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125853811
3M ID: 70008501234
5 Digit UPC: 85381
$3,820.07 ($159.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Withstands exposure to flame, weathering, moisture and UV
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Tensile Strength (Metric)49.0
Back Side Adhesive Thickness (Metric)0.05
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Back Side Adhesive Thickness (Imperial)1.8
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)4.6
Elongation at Break6
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorSilver
Shelf Life UOMMonth
Backing (Carrier) MaterialAluminum Foil
Backing (Carrier) Thickness (Imperial)2.8
Overall Width (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric)55.0
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Backing MaterialAluminum Foil
Minimum Operating Temperature (Celsius)-54.0
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial)28.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)96.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Width (Imperial)3.78
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.07
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)149.0
Overall Length (Imperial)60.14
