3M Products & Supplies

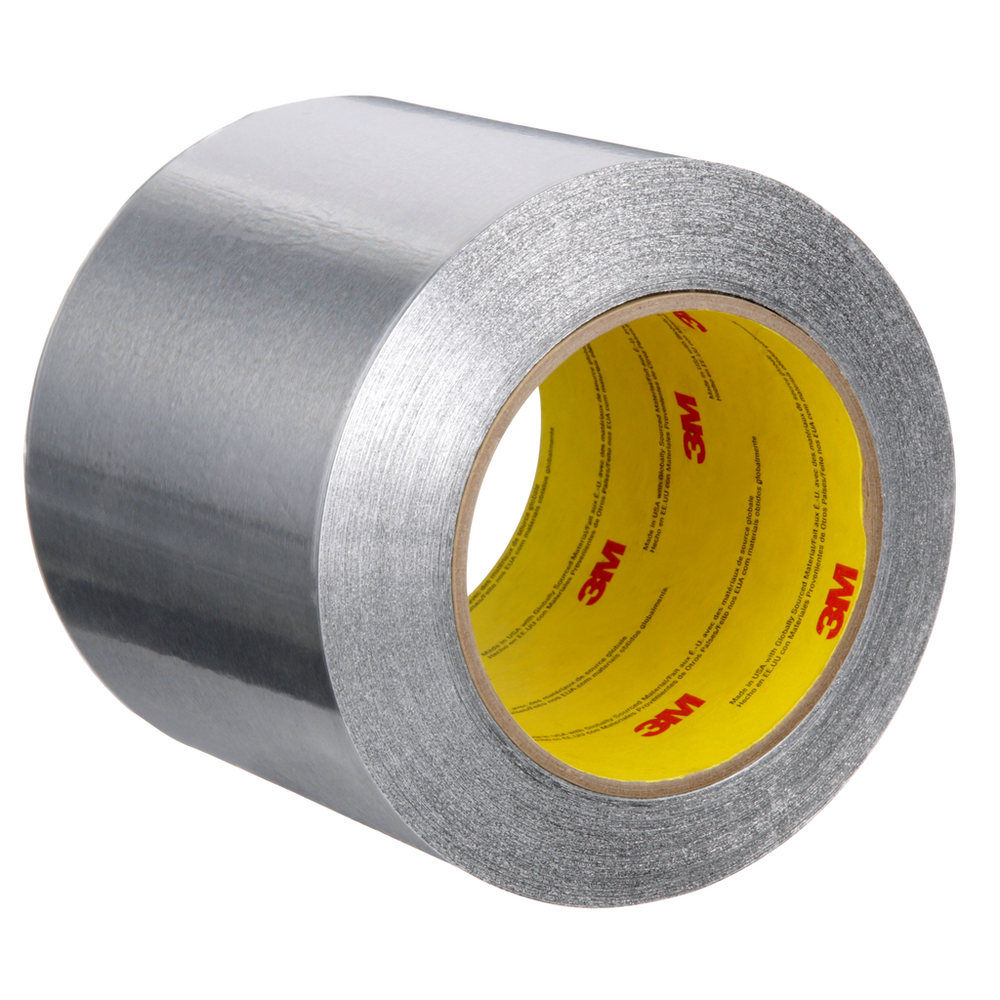

3M™ Aluminum Foil Tape 425, Silver, 125 mm x 55 m, 4.6 mil, 2 Rolls/Case - 7010337961

Sold As: 18-Pack
SKU: 7010337961
MPN: 7010337961
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125853194
3M ID: 70008500616
5 Digit UPC: 85319
$3,730.33 ($207.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Withstands exposure to flame, weathering, moisture and UV
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial)60.148
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)300.0
Backing (Carrier) MaterialAluminum Foil
Minimum Operating Temperature (Celsius)-54.0
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)2.8
Product ColorSilver
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.05
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Metric) UOMm
Overall Width (Metric)125.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial)4.6
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial)28.0
Overall Width (Imperial)4.87
Maximum Operating Temperature (Celsius)149.0
Back Side Adhesive Thickness (Imperial)1.8
Backing MaterialAluminum Foil
Tensile Strength (Metric)49.0
Elongation at Break6
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Length (Metric)55.0
Backing (Carrier) Thickness (Metric)0.07
