3M Products & Supplies

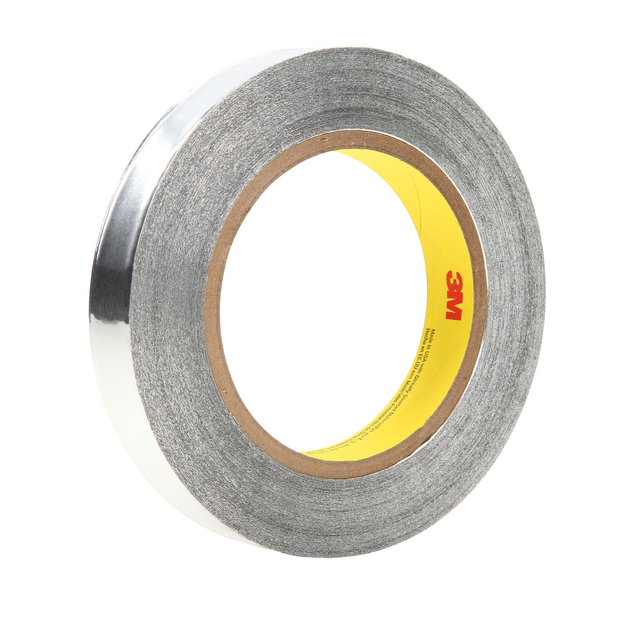

3M™ Aluminum Foil Tape 425, Silver, 150 mm x 55 m, 4.6 mil, 2 Roll/Case - 7100053924

Sold As: 8-Pack
SKU: 7100053924
MPN: 7100053924
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125853347
3M ID: 70008500764
5 Digit UPC: 85334
$1,989.47 ($248.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Withstands exposure to flame, weathering, moisture and UV
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Imperial)1.8
Overall Length (Imperial)60.14
Tensile Strength (Imperial) UOMlb/in
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.07
Backing (Carrier) MaterialAluminum Foil
Overall Length (Imperial) UOMyd
Overall Length (Metric)55.0
Elongation at Break6
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial)28.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)4.6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397, UL 723 (File R 7311), UL 746C (File E 122798)
Backing MaterialAluminum Foil
Units per Case2.0
Minimum Operating Temperature (Fahrenheit)-65.0
Tensile Strength (Metric)49.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)149.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)5.85
Back Side Adhesive Thickness (Metric)0.05
Product ColorSilver
Overall Width (Metric) UOMmm
Shelf Life UOMMonth
Overall Width (Metric)150.0
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)-54.0
Backing (Carrier) Thickness (Imperial)2.8
