3M Products & Supplies

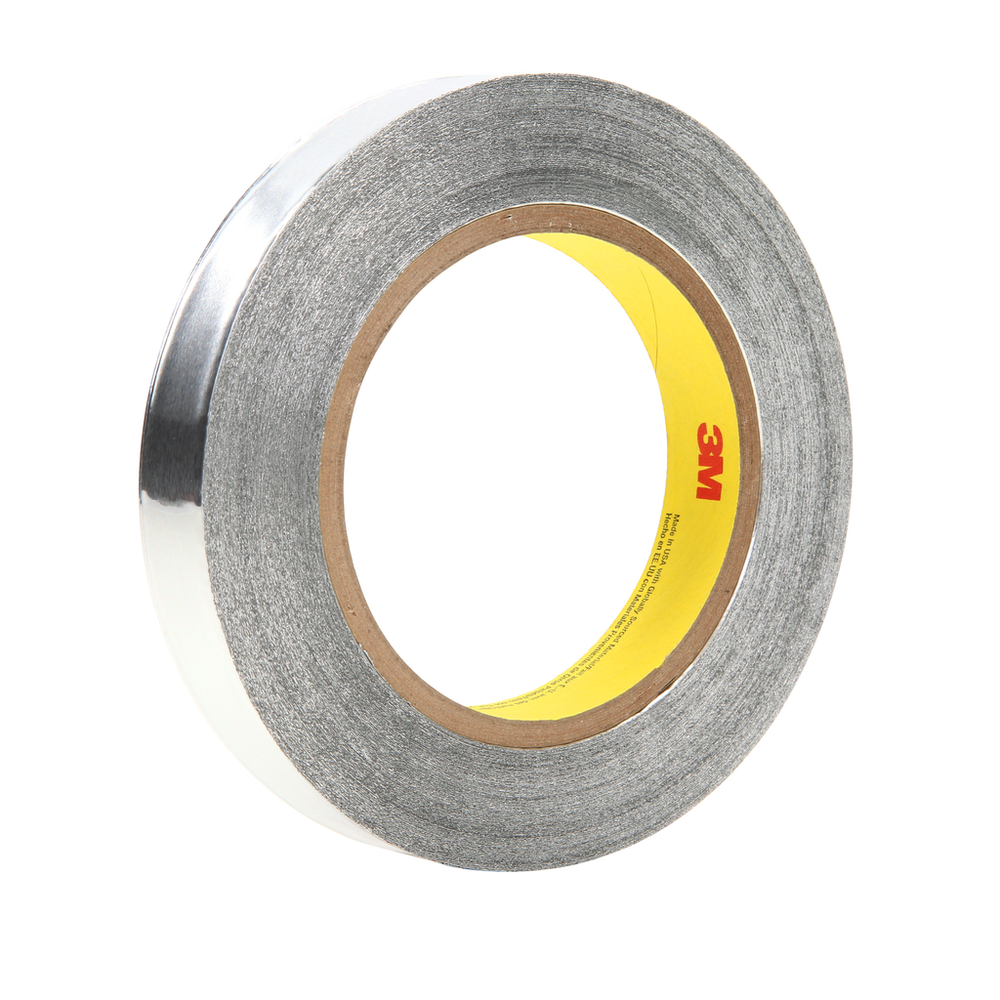

3M™ Aluminum Foil Tape 425, Silver, 3/4 in x 60 yd, 4.6 mil, 48 Roll/Case - 7100053743

Sold As: 48-Pack
SKU: 7100053743
MPN: 7100053743
For an accurate lead time please contact us
UPC: 00051125853095
3M ID: 70-0085-0051-7
5 Digit UPC: 85309
$1,565.22 ($32.61 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Withstands exposure to flame, weathering, moisture and UV
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial)0.8
Product ColorSilver
Tensile Strength (Metric)49.0
Total Tape Thickness without Liner (Imperial)4.6
Backing (Carrier) Thickness (Metric)0.07
Minimum Operating Temperature (Celsius)-54.0
Back Side Adhesive Thickness (Metric)0.05
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Elongation at Break6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)300.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Fahrenheit)-65.0
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)2.8
Overall Length (Imperial)60.0
Overall Length (Metric)54.9
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) MaterialAluminum Foil
Overall Width (Metric)1.9
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Celsius)149.0
Overall Width (Metric) UOMcm
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial)28.0
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Back Side Adhesive Thickness (Imperial)1.8
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic
Backing MaterialAluminum Foil
