3M Products & Supplies

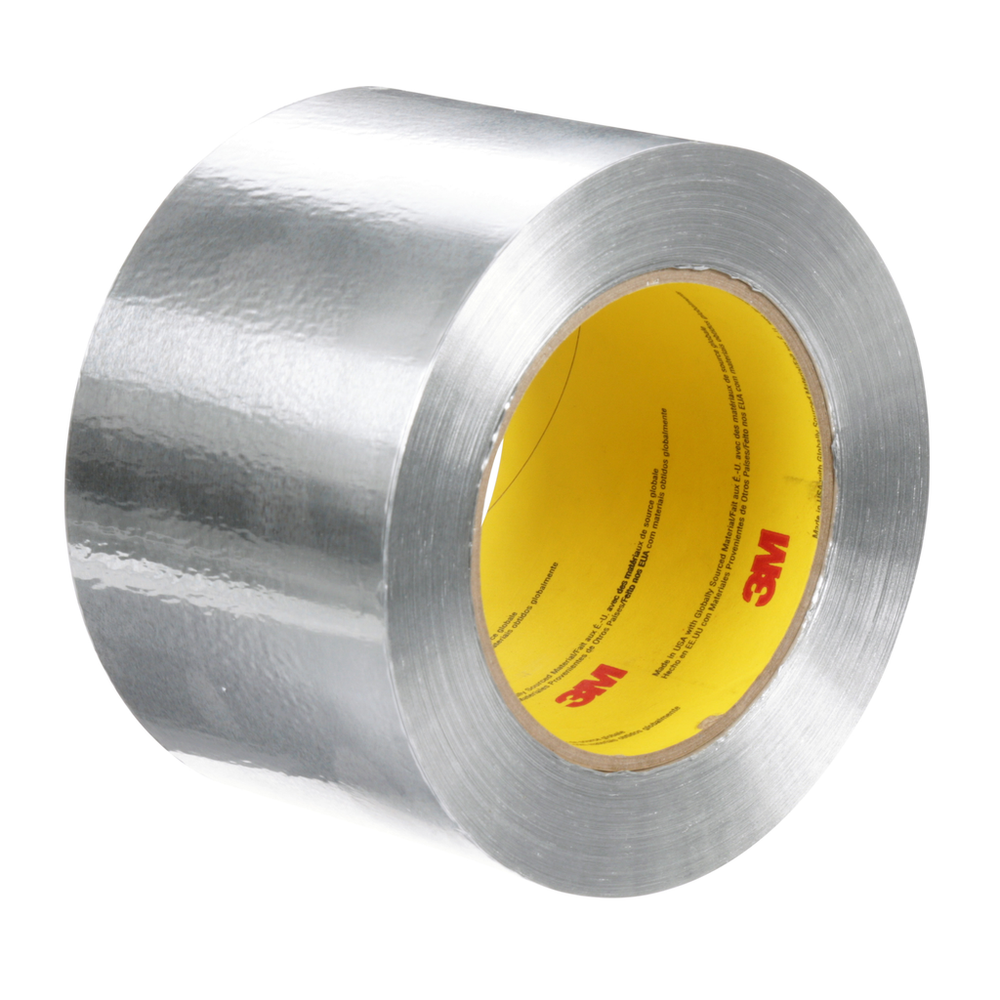

3M™ Aluminum Foil Tape 425, Silver, 3 in x 60 yd, 4.6 mil, 12 Roll/Case - 7100053644

Sold As: 12-Pack
SKU: 7100053644
MPN: 7100053644
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051125853125
3M ID: 70008500541
5 Digit UPC: 85312
$1,490.58 ($124.21 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Withstands exposure to flame, weathering, moisture and UV
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)149.0
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-65.0
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Celsius)-54.0
Backing (Carrier) MaterialAluminum Foil
Tensile Strength (Metric)49.0
Backing MaterialAluminum Foil
Tensile Strength (Imperial)28.0
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial)4.6
Backing (Carrier) Thickness (Metric)0.07
Backing (Carrier) Thickness (Imperial)2.8
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break6
Overall Width (Imperial)3.0
Overall Width (Imperial) UOMin
Overall Width (Metric)7.6
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric)54.9
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Metric)0.05
Overall Length (Metric) UOMm
Product ColorSilver
Back Side Adhesive Thickness (Imperial)1.8
Overall Width (Metric) UOMcm
Overall Length (Imperial)60.0
