3M Products & Supplies

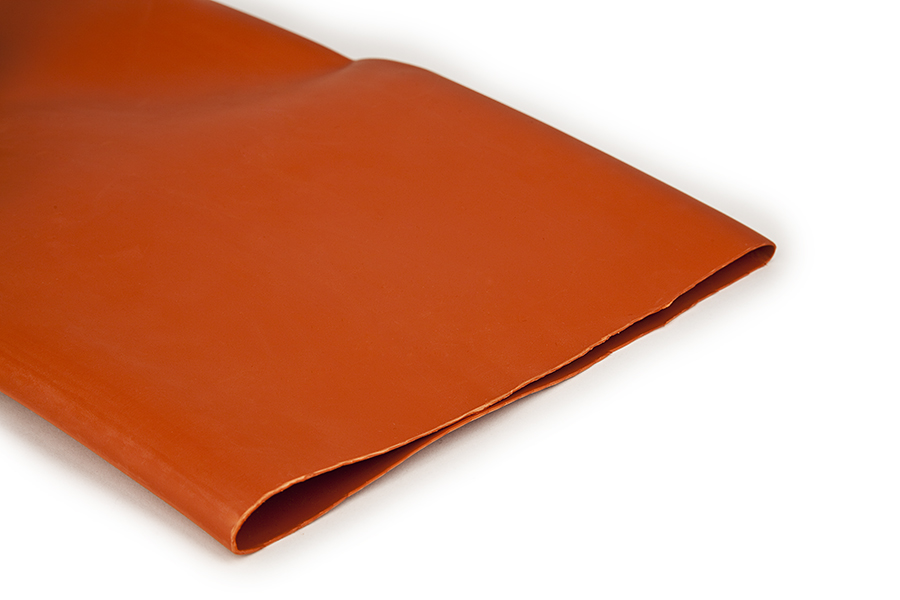

3M™ Bus Bar Heat Shrink Tubing BBI-10A-20': O.D. 10.28 in (261 mm) - 4.53 in (115 mm), Rated from 5 kV - 35 kV, 20 feet/case - 7100025921

Sold As: 20-Pack
SKU: 7100025921
MPN: 7100025921
For an accurate lead time please contact us
UPC: 00051135358788
3M ID: 80610755367
5 Digit UPC: 35878
$2,211.18 ($110.56 / Count)
Hurry up! Current stock:

Product Description

3M™ Bus Bar Heat Shrink Tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars.

Features

  • For use in metal-clad switchgear
  • For inline bolted connections of rectangular bus bars
  • For copper or aluminium bus bars
  • For use with substation switchgear
  • For rectangular, square and round bus bars
  • For use on metal-enclosed bus bar
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric)39.18
Minimum Expanded Tubing I. D. UOMin
Maximum Recovered Tubing I. D.4.53
Product TypeBus Bar Tubing
Maximum Operating Temperature (Celsius)110.0
Square Size(5 x 5) Inch (for 25 kV)
Expanded Wall Thickness UOMin
Expanded Wall Thickness0.059
Voltage15 kV
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL ApprovalNo
Inner Diameter Before Shrink (Imperial)24.14
Overall Length (Imperial) UOMft
Overall Length (Metric)6.1
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric)61.32
Product TechnologyHeat Shrink
Overall Length (Metric) UOMm
Maximum Recovered Tubing I. D. UOMin
Solutionconstructionbus
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Minimum Expanded Tubing I. D.10.28
Product ColorOrange, Red
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric) UOMcm²
Recovered Wall Thickness0.138
Recovered Wall Thickness UOMin
Splice TypeHeat Shrink
Inner Diameter After Shrink (Metric) UOMcm²
Inner Diameter After Shrink (Imperial)15.43
Halogen FreeYes
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial)20.0
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
ModelHeat-shrink
Units per Case1.0
MaterialPolyolefin
Rectangular Size(8 X 1/4) to (10 x 3/4) Inch (for 5 kV, 8 kV, 15 kV, 25 kV)
ShapeRectangular
