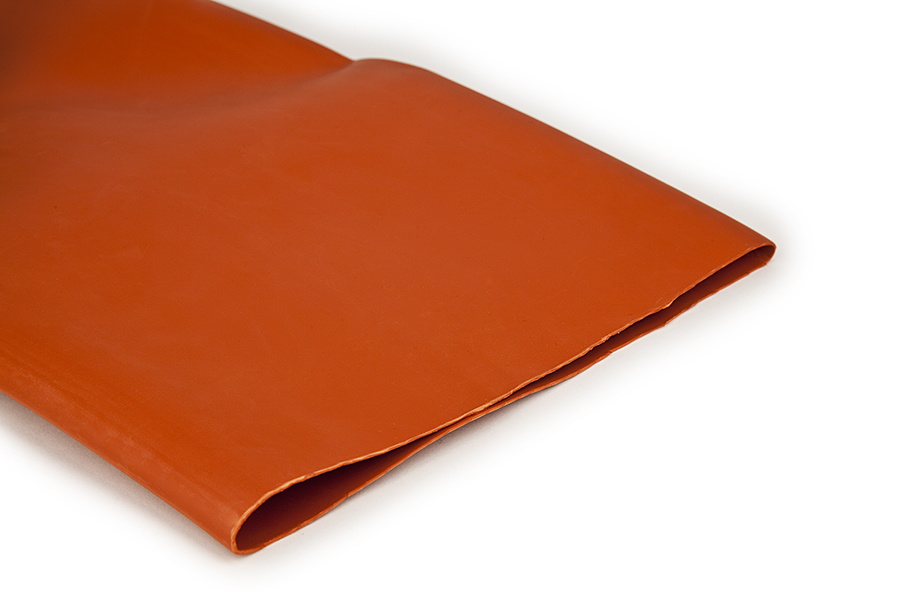

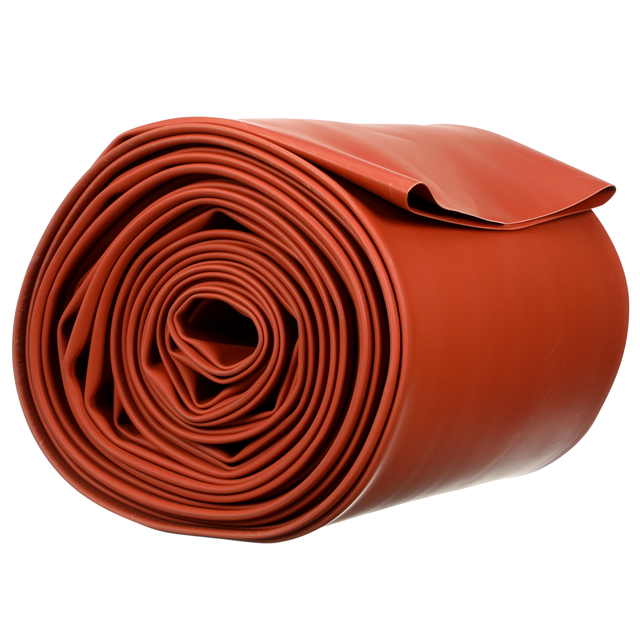

3M™ Bus Bar Heat Shrink Tubing BBI-9A-20': O.D. 8.83 in (224 mm) - 3.78 in (96 mm), Rated from 5 kV - 35 kV, 20 feet/case - 7100025950

Sold As: 20-Pack
SKU: 7100025950
MPN: 7100025950
For an accurate lead time please contact us
UPC: 00051135358764
3M ID: 80610755342
5 Digit UPC: 35876
$1,879.53 ($93.98 / Count)
Hurry up! Current stock:

Product Description

3M™ Bus Bar Heat Shrink Tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars.

Features

  • For use with substation switchgear
  • For copper or aluminium bus bars
  • For use on metal-enclosed bus bar
  • For use in metal-clad switchgear
  • For rectangular, square and round bus bars
  • For inline bolted connections of rectangular bus bars
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Recovered Wall Thickness UOMin
Recovered Wall Thickness0.127
ShapeRectangular
Inner Diameter Before Shrink (Metric)8.83
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)20.0
Voltage15 kV
MaterialCross-linked Polyolefin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.127
Shrink RatioVariable
Inner Diameter After Shrink (Imperial)0.054
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric) UOMmm
Product TechnologyHeat Shrink
Product TypeBus Bar Tubing
Inner Diameter After Shrink (Imperial) UOMin
Solutionconstructionbus
Minimum Expanded Tubing I. D. UOMin
Maximum Recovered Tubing I. D. UOMin
Overall Length (Imperial) UOMft
Product ColorOrange, Red
Rectangular Size(6 x 1/4) to (6 x 3/4) Inch (for 35 kV)
Square Size(3-1/2 x 3-1/2) to (4 x 4) Inch (for 25 kV)
Maximum Operating Temperature (Celsius)110.0
Splice TypeHeat Shrink
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Expanded Wall Thickness0.054
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recovered Tubing I. D.3.78
Overall Length (Metric)15.24
Units per Case1.0
Inner Diameter After Shrink (Metric)3.78
Expanded Wall Thickness UOMin
ModelHeat-shrink
Overall Length (Metric) UOMm
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Minimum Expanded Tubing I. D.8.83
