3M Products & Supplies

3M™ Cable Repair Kit M-20 (2131), 1/Case - 7000031846

SKU: 7000031846
MPN: 7000031846
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128592236
3M ID: 80611468820
5 Digit UPC: 59223
$138.60 each
Hurry up! Current stock:

Product Description

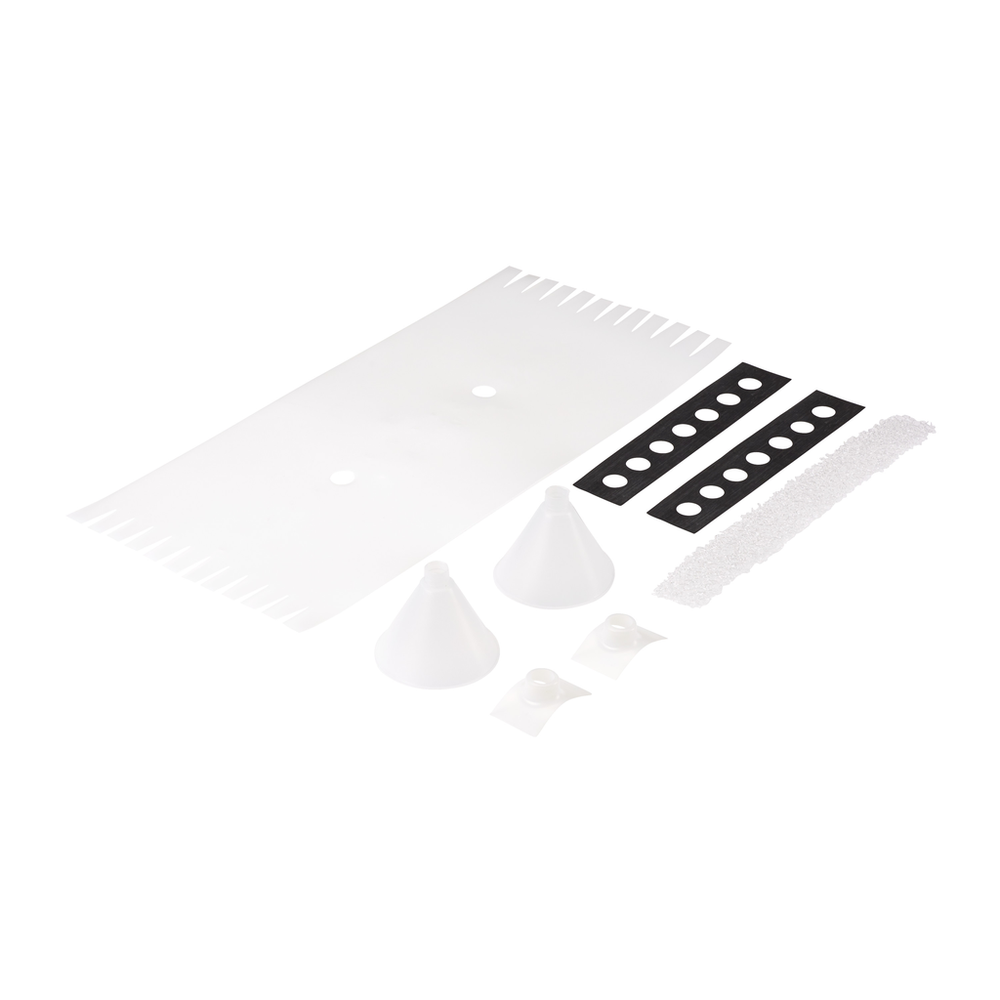

3M™ Scotchcast™ M Series Cable Repair Kit offers permanent, moisture resistant jacket repairs and helps in portable cable splicing. This kit includes a reusable wraparound mold and accessories for use with 3M™ Scotchcast™ Flame-Retardant Electrical Insulating Resin (purchase separately) that are necessary for repairing cable jackets. It is suitable for insulation, mechanical protection and repairs, or splices of cables rated up to 2 kV.

Features

  • Provides permanent, flexible and moisture-resistant jacket repair
  • For insulation, mechanical protection and repair of cables
  • Repairs both portable power cables or standard cables
  • Wraparound mold repairs the jacket without cutting through the cable
  • Works on cables rated up to 2 kV
  • Features a wraparound mold, which maintains excellent physical and electrical properties
Spec Sheet



Downloads

Specifications

Shelf Life1080
Country of OriginUnited States
Voltage Rating0.6/1 kV
Inner Diameter After Shrink (Imperial) UOMin
ApplicationInsulation, mechanical protection, repair
Overall Length (Imperial)20.1
Voltage ApplicationMedium Voltage
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric) UOMmm
Shelf Life UOMMonth
Overall Length (Imperial) UOMin
Units per Case1.0
Inner Diameter After Shrink (Metric) UOMmm
Cable Outside Diameter Range1.60-2.50 inch
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)1.6
Overall Length (Metric)510.0
Cable Typemulti core, non shielded, polymeric insulated cable
Voltage6 kV
Flame RetardantYes
Max Repair Length13.0-15 inch
With Screw ConnectorsNo
Number of Conductors3.0
ModelCast Resin
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive LinedNo
Mining Sector ApprovalYes
Inner Diameter Before Shrink (Metric)63.0
Inner Diameter Before Shrink (Imperial)2.5
Inner Diameter After Shrink (Metric)41.0
Resin TypeSC 2131
