3M Products & Supplies

3M™ Cable Repair Kit M-30 (2131), 1 Kits/Case - 7000031847

SKU: 7000031847
MPN: 7000031847
For an accurate lead time please contact us
UPC: 00051128592243
3M ID: 80611468838
5 Digit UPC: 59224
$170.82 each
Hurry up! Current stock:

Product Description

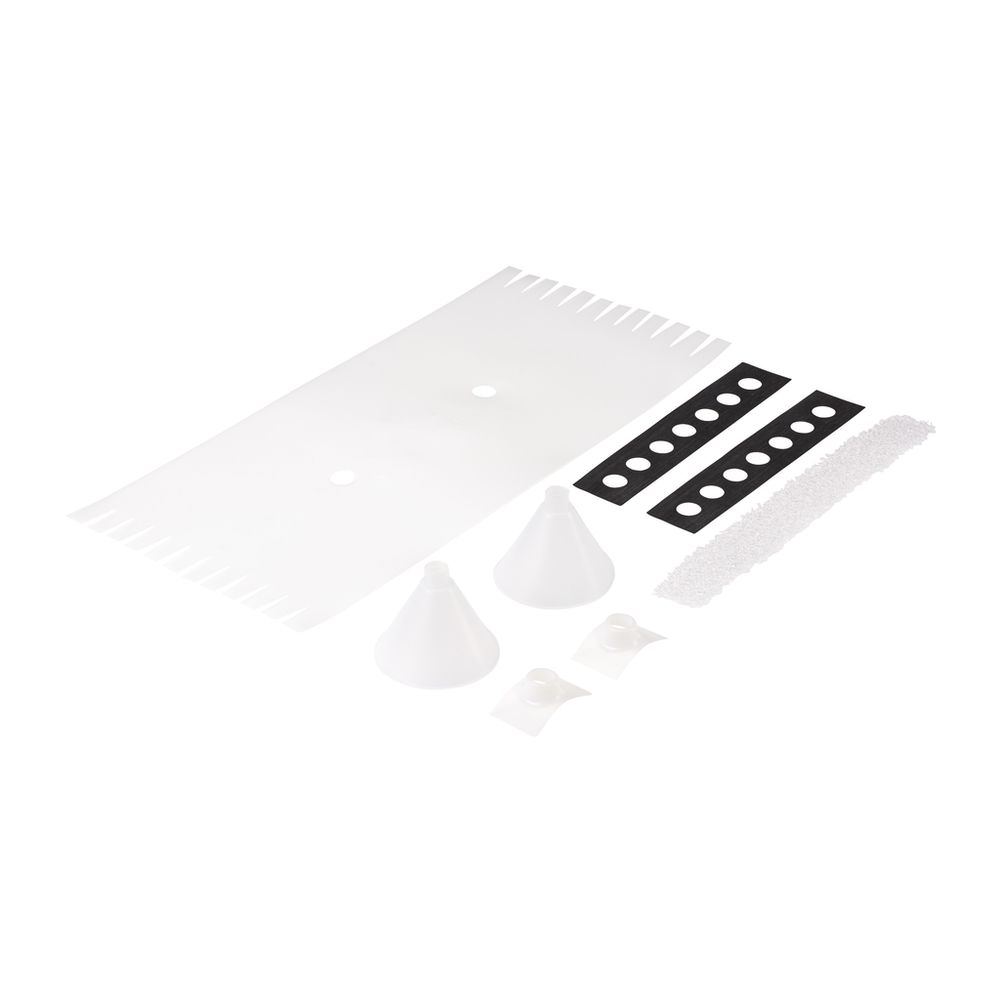

3M™ Scotchcast™ M Series Cable Repair Kit offers permanent, moisture resistant jacket repairs and helps in portable cable splicing. This kit includes a reusable wraparound mold and accessories for use with 3M™ Scotchcast™ Flame-Retardant Electrical Insulating Resin (purchase separately) that are necessary for repairing cable jackets. It is suitable for insulation, mechanical protection and repairs, or splices of cables rated up to 2 kV.

Features

  • Provides permanent, flexible and moisture-resistant jacket repair
  • Features a wraparound mold, which maintains excellent physical and electrical properties
  • For insulation, mechanical protection and repair of cables
  • Works on cables rated up to 2 kV
  • Wraparound mold repairs the jacket without cutting through the cable
  • Repairs both portable power cables or standard cables
Spec Sheet



Downloads

Specifications

Shelf Life1080
Country of OriginUnited States
Flame RetardantYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Cable Typemulti core, non shielded, polymeric insulated cable
Shelf Life UOMMonth
Overall Length (Imperial)29.1
Inner Diameter Before Shrink (Metric)102.0
Units per Case1.0
Number of Conductors3.0
Resin TypeSC 2131
Inner Diameter After Shrink (Imperial)1.9
Inner Diameter Before Shrink (Imperial) UOMin
With Screw ConnectorsNo
Voltage6 kV
Mining Sector ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Metric)740.0
Voltage ApplicationMedium Voltage
Adhesive LinedNo
Cable Outside Diameter Range1.85-4.00 inch
Inner Diameter Before Shrink (Imperial)4.0
Overall Length (Metric) UOMmm
Overall Length (Imperial) UOMin
ModelCast Resin
ApplicationInsulation, mechanical protection, repair
Max Repair Length20.0 inch
Inner Diameter After Shrink (Metric)47.0
Voltage Rating0.6/1 kV
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
