3M Products & Supplies

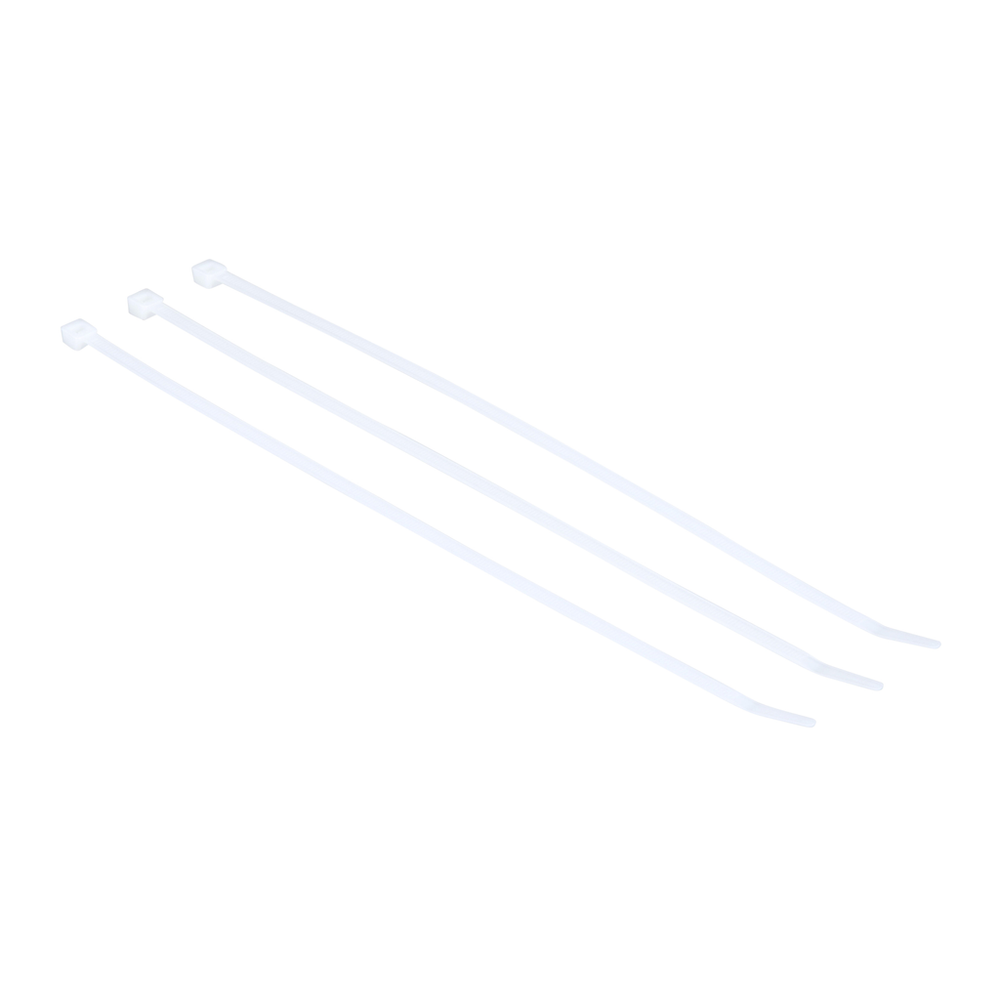

3M™ Cable Tie CT11NT50-C, 10 Bags/Case - 7000031856

Sold As: 1000-Pack
SKU: 7000031856
MPN: 7000031856
For an accurate lead time please contact us
UPC: 10051128593025
3M ID: 80611469612
5 Digit UPC: 59302
$91.36 ($0.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • Curved tip allows for faster threading and installation
  • Secure wire bundles and harness components quickly, without slipping
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Product TypeCable Ties
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Maximum Bundle Diameter3 Inch
UV ResistantNo
Mil SpecMS3367-7-9
Minimum Operating Temperature (Fahrenheit)-40.0
Tensile Strength (Metric) UOMkg
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)11.1
Operating Temperature (Celsius)85 Degree Celsius
Package Quantity UOMEACH
UL ApprovalYes
Cable Tie Base Height11 in
Package Quantity100.0
Tape TypeBarricade
Minimum Bundle Diameter (Metric)1.6 mm
Flammability RatingUL 94 V-2
Minimum Installation Temperature (Celsius)-20 Degree Celsius
TypeStandard
Overall Length (Imperial) UOMin
Cable Tie TypeMiniature
Maximum Operating Temperature (Fahrenheit)185.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Units per bag500
Overall Width (Metric) UOMmm
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)282.0
Maximum Operating Temperature (Celsius)85.0
MaterialNylon 6/6
Cable Length (Imperial)11.0
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Bundle Diameter (Metric) UOMmm
Overall Length (Metric) UOMmm
Cable Management ProductsCable Ties
Cable Diameter Range8,1 - 39,4 mm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Cable Length (Imperial) UOMin
Minimum Bundle Diameter0.0625 Inch
Cable Length (Metric) UOMmm
Overall Width (Metric)4.6
Cable Tie Length UOMmm
Units per Case1000.0
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature85 Degree Celsius
Maximum Bundle Diameter (Metric)76.0
ApplicationSecure wire bundling
Maximum Insulation Outside Diameter0.145 in
VG ApprovalNo
Overall Width (Imperial)0.18
Plenum RatedYes
Tensile Strength (Metric)22.68
Operating Temperature Range (Celsius)-40 °C to 85 °C
MIL ApprovalNo
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Solution forLonghaul/Metro Loop Network: CO/POP
Maximum Recommended Voltage Rating UOMV
Cable Length (Metric)314.3
Cable Tie Length282.0
Solvable FastenerNo
Minimum Operating Temperature (Celsius) UOMDegree
Halogen FreeYes
