3M Products & Supplies

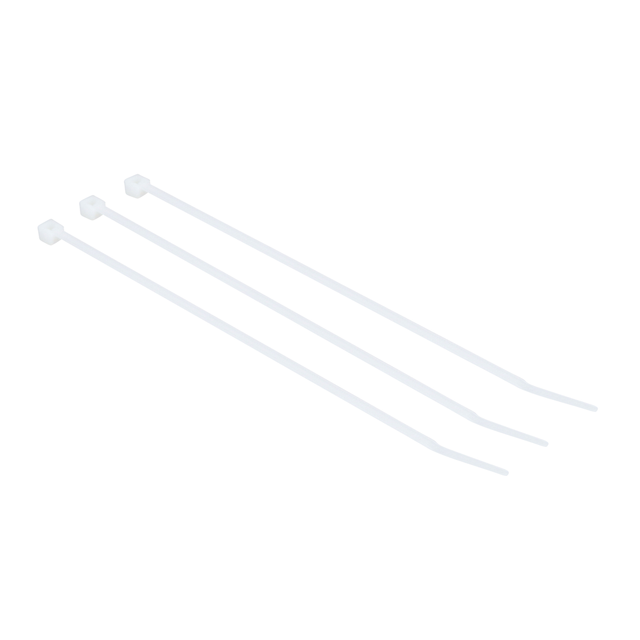

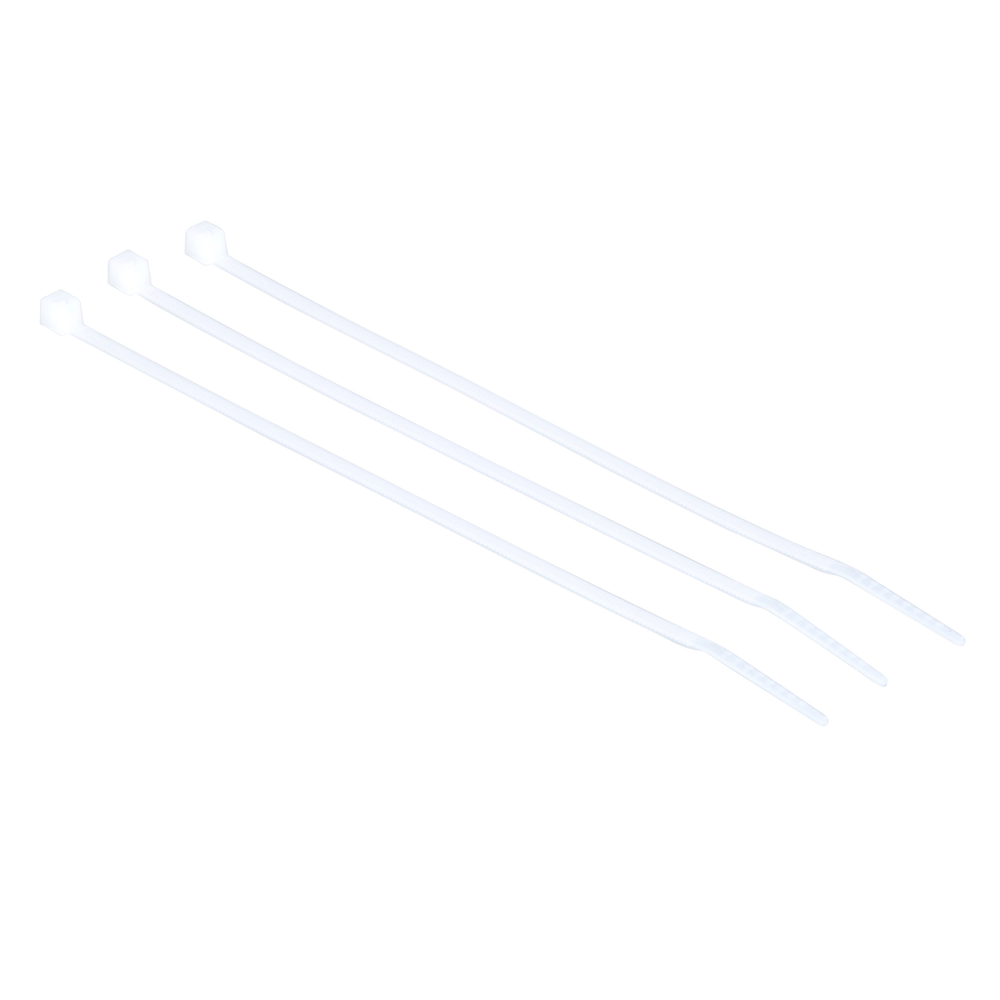

3M™ Cable Tie CT6NT18-C, 10 Bags/Case - 7000031850

Sold As: 1000-Pack
SKU: 7000031850
MPN: 7000031850
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128592783
3M ID: 80611469372
5 Digit UPC: 59278
$47.16 ($0.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • Curved tip allows for faster threading and installation
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Secure wire bundles and harness components quickly, without slipping
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Solvable FastenerNo
Tape TypeBarricade
Cable Management ProductsCable Ties
MIL ApprovalNo
Maximum Operating Temperature (Celsius)85.0
Cable Length (Metric)154.94
Maximum Insulation Outer Diameter (Metric)3.7
Overall Width (Metric)2.4
Package Quantity UOMPCS
Overall Length (Imperial)6.1
Operating Temperature Range (Celsius)-40 °C to 85 °C
Cable Length (Imperial) UOMin
MaterialNylon 6/6
Plenum RatedYes
Solution forLonghaul/Metro Loop Network: Outdoor
Cable Tie Length155.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric)155.0
Minimum Bundle Diameter (Metric)1.6 mm
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)8.17
Cable Tie Base Height6 in
Halogen FreeYes
TypeStandard
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature85 Degree Celsius
Cable Length (Imperial)6.0
Overall Length (Imperial) UOMin
Tensile Strength (Metric) UOMkg
Maximum Insulation Outside Diameter0.145 in
Maximum Bundle Diameter (Metric) UOMmm
Maximum Bundle Diameter (Metric)31.75
Maximum Recommended Voltage Rating UOMV
UV ResistantNo
Cable Tie TypeMiniature
ApplicationSecure wire bundling
Overall Length (Metric) UOMmm
Cable Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)185.0
Cable Tie Length UOMmm
Cable Diameter Range8,1 - 39,4 mm
Operating Temperature (Celsius)85 Degree Celsius
Package Quantity100.0
Units per Case1000.0
Product ColorNatural
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Bundle Diameter1.25 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Flammability RatingUL 94 V-2
Maximum Recommended Voltage Rating600.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL ApprovalYes
VG ApprovalNo
Minimum Installation Temperature (Celsius)0 Degree Celsius
Product TypeCable Ties
Minimum Bundle Diameter0.0625 Inch
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.096
Minimum Operating Temperature (Celsius) UOMDegree
