3M Products & Supplies

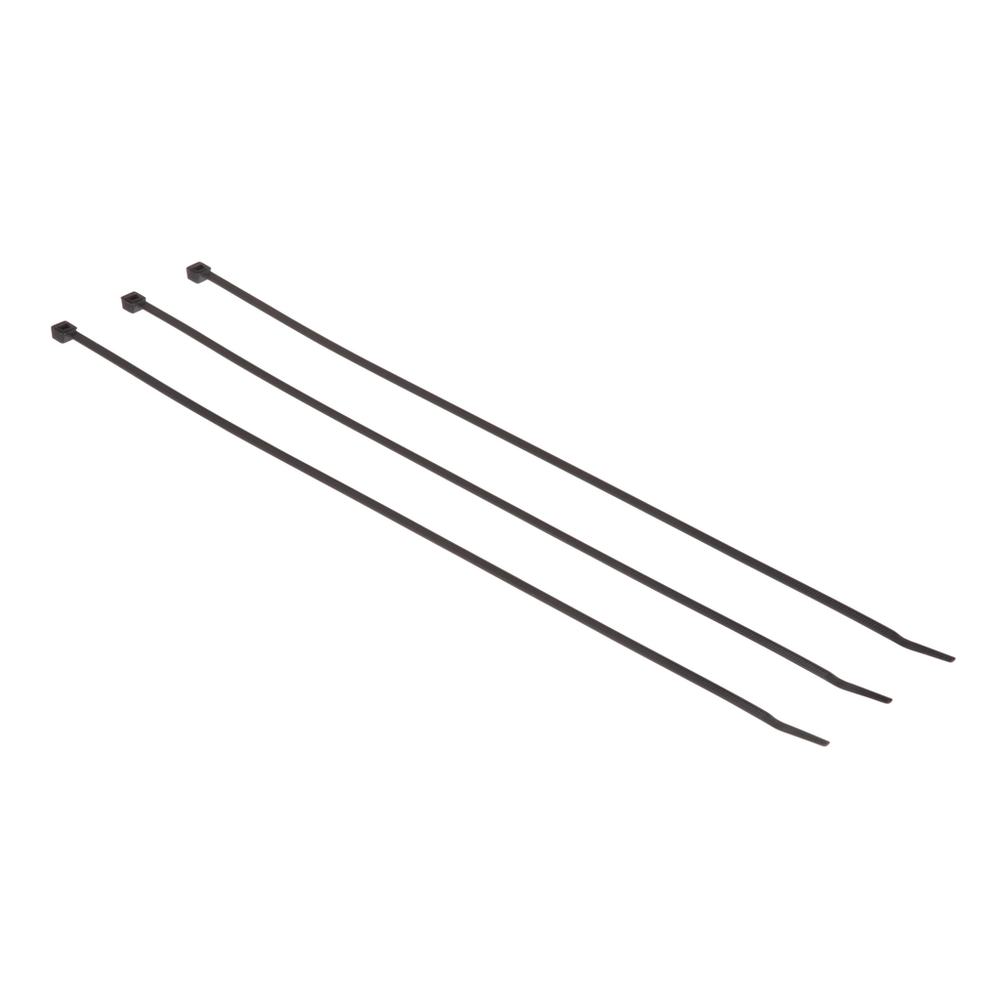

3M™ Cable Tie CT15BK50-D, 2500/Case - 7000031858

Sold As: 2500-Pack
SKU: 7000031858
MPN: 7000031858
For an accurate lead time please contact us
UPC: 00051128593059
3M ID: 80611469646
5 Digit UPC: 59305
$303.26 ($0.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Minimum Operating Temperature (Celsius) UOMDegree
Package Quantity500.0
Maximum Recommended Voltage Rating600.0
Solution forLonghaul/Metro Loop Network: Outdoor
UL ApprovalYes
Minimum Operating Temperature (Fahrenheit)-40.0
Cable Length (Metric) UOMmm
Tensile Strength (Metric) UOMkg
Cable Tie Length UOMmm
Cable Diameter Range8,1 - 39,4 mm
Minimum Operating Temperature (Celsius)-40.0
Plenum RatedYes
Overall Length (Metric) UOMmm
Operating Temperature (Celsius)85 Degree Celsius
Package Quantity UOMPCS
Overall Length (Imperial)14.6
Maximum Recommended Voltage Rating UOMV
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
VG ApprovalNo
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Cable Tie Length371.0
Cable Length (Metric)370.84
Units per bag100
Minimum Bundle Diameter (Metric)1.6 mm
Maximum Bundle Diameter (Metric)102.0
TypeStandard
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)85.0
Halogen FreeYes
Overall Width (Metric) UOMmm
Cable Length (Imperial)15.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature85 Degree Celsius
Product TypeCable Ties
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Bundle Diameter0.0625 Inch
ApplicationSecure wire bundling
Maximum Bundle Diameter4 Inch
Maximum Insulation Outside Diameter0.145 in
Overall Width (Imperial)0.18
Overall Width (Imperial) UOMin
Cable Tie Base Height15 in
Cable Management ProductsCable Ties
Flammability RatingUL 94 V-2
MaterialNylon 6/6
MIL ApprovalNo
Overall Width (Metric)4.6
Mil SpecMS3367-2-0
Cable Length (Imperial) UOMin
Operating Temperature Range (Celsius)-40 °C to 85 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Units per Case2500.0
Maximum Operating Temperature (Fahrenheit)185.0
Maximum Insulation Outer Diameter (Metric)3.7
UV ResistantYes
Product ColorBlack
Tape TypeBarricade
Overall Length (Metric)371.0
Tensile Strength (Metric)22.68
Maximum Operating Temperature (Celsius) UOMDegree
Solvable FastenerNo
Maximum Bundle Diameter (Metric) UOMmm
