3M Products & Supplies

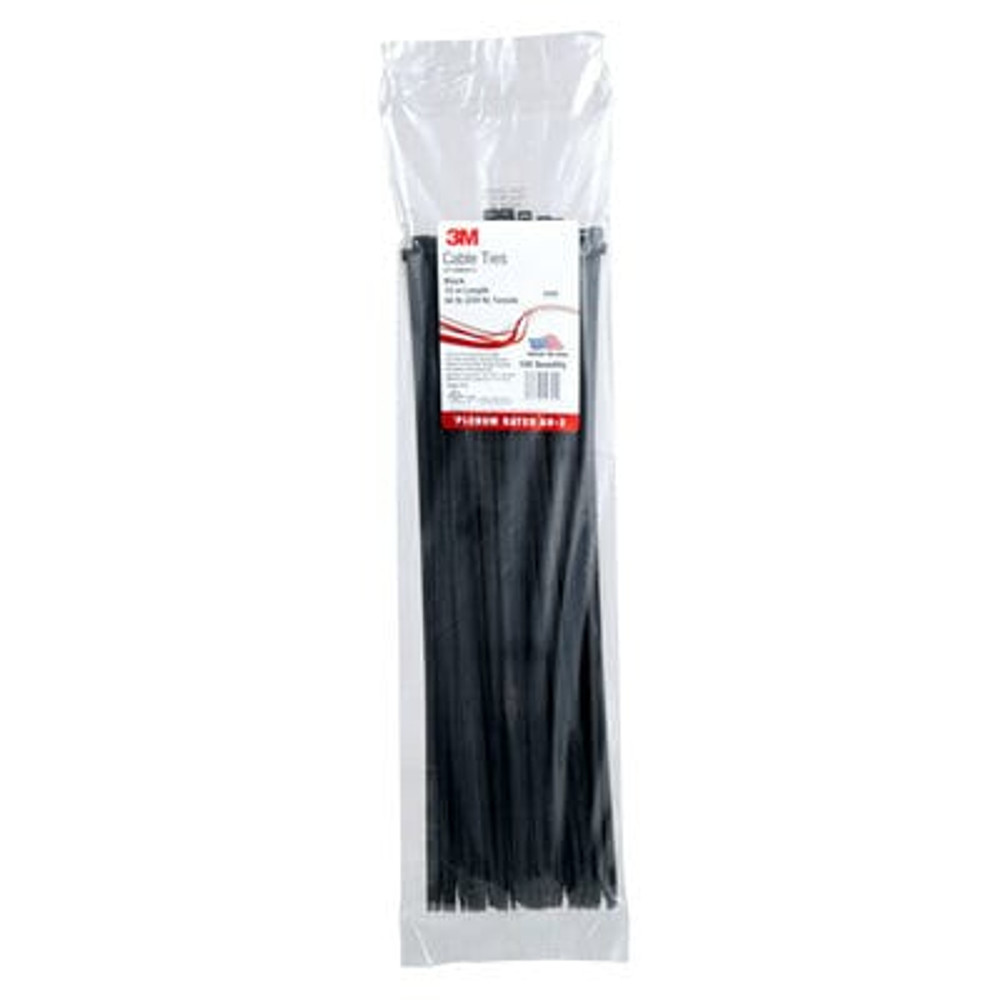

3M™ Cable Tie CT15BK50-C, 500/Case - 7000031857

Sold As: 500-Pack
SKU: 7000031857
MPN: 7000031857
For an accurate lead time please contact us
UPC: 10051128593049
3M ID: 80611469638
5 Digit UPC: 59304
$63.67 ($0.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • Curved tip allows for faster threading and installation
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Secure wire bundles and harness components quickly, without slipping
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Cable Tie Base Height15 in
Units per bag500
Minimum Operating Temperature (Celsius) UOMDegree
Cable Length (Metric) UOMmm
Minimum Bundle Diameter (Metric)1.6 mm
Halogen FreeYes
Units per Case500.0
Maximum Recommended Voltage Rating UOMV
Cable Length (Imperial)15.0
Cable Tie Length371.0
Operating Temperature Range (Celsius)-40 °C to 85 °C
Operating Temperature (Celsius)85 Degree Celsius
Maximum Insulation Outside Diameter0.145 in
Package Quantity UOMEACH
Tape TypeBarricade
VG ApprovalNo
UL ApprovalYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Maximum Operating Temperature (Fahrenheit)185.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Mil SpecMS3367-2-0
Overall Length (Imperial) UOMin
TypeStandard
ApplicationSecure wire bundling
Overall Length (Imperial)14.6
Maximum Bundle Diameter (Metric) UOMmm
Overall Width (Imperial)0.18
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Operating Temperature85 Degree Celsius
Cable Management ProductsCable Ties
Flammability RatingUL 94 V-2
Tensile Strength (Metric)22.68
Product TypeCable Ties
Cable Length (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Cable Tie TypeStandard
MaterialNylon 6/6
Solvable FastenerNo
Maximum Operating Temperature (Celsius) UOMDegree
MIL ApprovalNo
Solution forLonghaul/Metro Loop Network: Outdoor
Minimum Operating Temperature (Fahrenheit)-40.0
Tensile Strength (Metric) UOMkg
Plenum RatedYes
Overall Width (Metric) UOMmm
Cable Length (Metric)370.84
Minimum Operating Temperature (Celsius)-40.0
Cable Tie Length UOMmm
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Celsius)85.0
Minimum Bundle Diameter0.0625 Inch
Maximum Bundle Diameter (Metric)102.0
Product ColorBlack
UV ResistantYes
Overall Length (Metric)371.0
Maximum Bundle Diameter4 Inch
Package Quantity100.0
Cable Diameter Range8,1 - 39,4 mm
Overall Width (Metric)4.6
