3M Products & Supplies

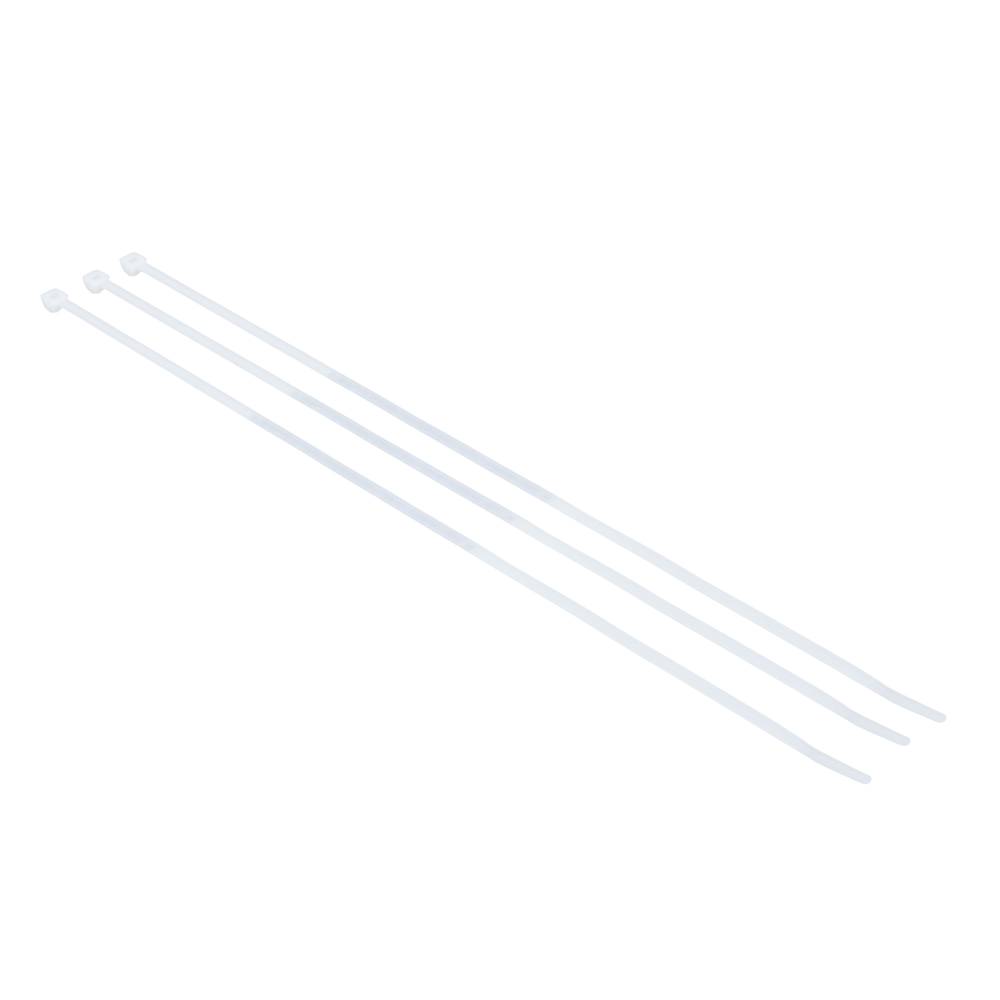

3M™ Cable Tie CT15NT50-C, 500/Case - 7000031859

Sold As: 500-Pack
SKU: 7000031859
MPN: 7000031859
For an accurate lead time please contact us
UPC: 00051128593073
3M ID: 80611469661
5 Digit UPC: 59307
$63.67 ($0.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • Secure wire bundles and harness components quickly, without slipping
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Curved tip allows for faster threading and installation
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Tensile Strength (Metric) UOMkg
Operating Temperature (Celsius)85 Degree Celsius
Overall Width (Metric)4.6
Cable Tie Length UOMmm
Solution forLonghaul/Metro Loop Network: Outdoor
Minimum Bundle Diameter0.0625 Inch
UL ApprovalYes
Cable Diameter Range8,1 - 39,4 mm
Cable Tie Base Height15 in
Halogen FreeYes
Minimum Operating Temperature (Fahrenheit) UOMDegree
Mil SpecMS3367-2-9
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Insulation Outside Diameter0.145 in
UV ResistantNo
Units per Case500.0
Overall Length (Imperial)14.6
Cable Length (Imperial) UOMin
Tape TypeBarricade
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
VG ApprovalNo
Minimum Bundle Diameter (Metric)1.6 mm
Cable Length (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Package Quantity UOMEACH
Cable Length (Metric)370.84
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius)85.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)185.0
Maximum Recommended Voltage Rating600.0
Cable Management ProductsCable Ties
Overall Length (Imperial) UOMin
Maximum Bundle Diameter (Metric)102.0
Cable Length (Imperial)15.0
Overall Length (Metric) UOMmm
Overall Length (Metric)371.0
Plenum RatedYes
Maximum Operating Temperature (Celsius) UOMDegree
Product TypeCable Ties
Overall Width (Imperial)0.18
Units per bag500
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Cable Tie Length371.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Bundle Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric)3.7
Solvable FastenerNo
Package Quantity100.0
ApplicationSecure wire bundling
Operating Temperature Range (Celsius)-40 °C to 85 °C
Tensile Strength (Metric)22.68
Maximum Bundle Diameter4 Inch
MIL ApprovalNo
MaterialNylon 6/6
Flammability RatingUL 94 V-2
TypeStandard
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Maximum Operating Temperature85 Degree Celsius
Cable Tie TypeStandard
