3M Products & Supplies

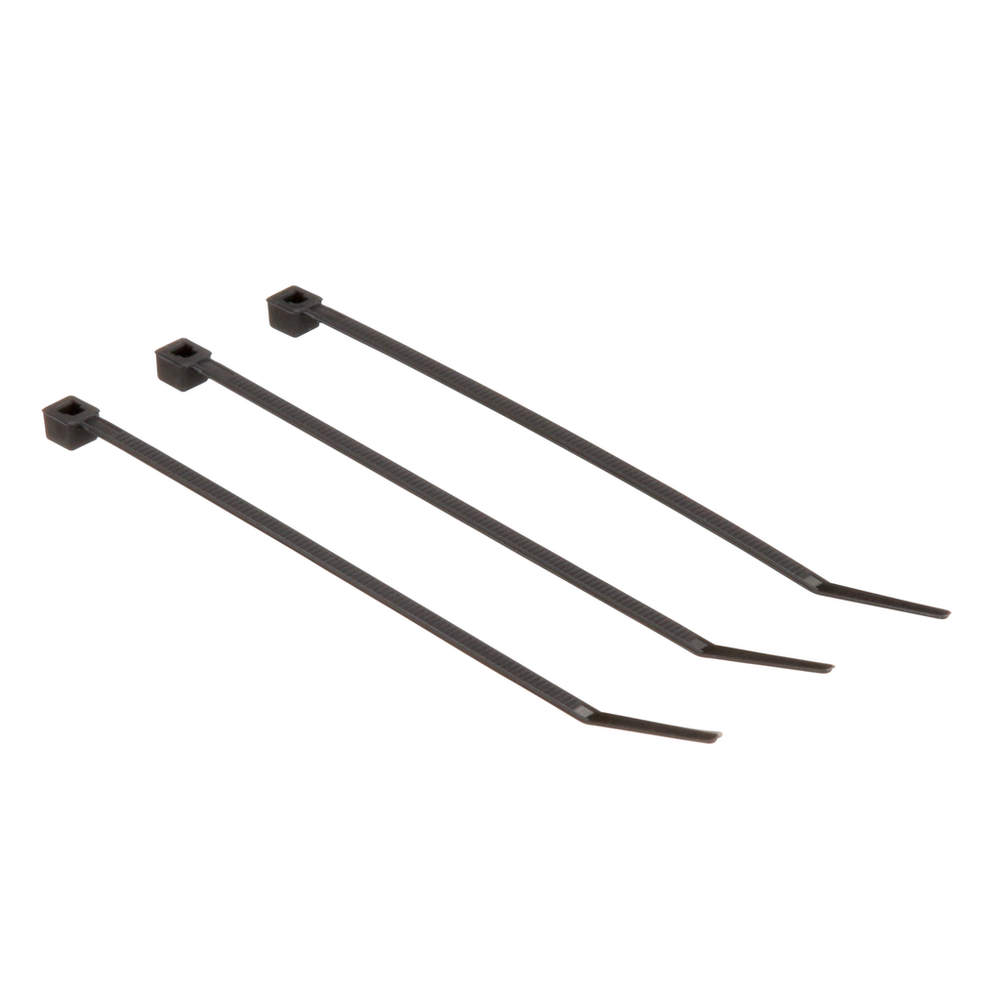

3M™ Cable Tie CT4BK18-C, secure wire bundles and harness components quickly, 1000/Case - 7000133450

Sold As: 1000-Pack
SKU: 7000133450
MPN: 7000133450
For an accurate lead time please contact us
UPC: 10051128592738
3M ID: 80611469323
5 Digit UPC: 59273
$23.90 ($0.02 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Maximum Operating Temperature (Fahrenheit) UOMDegree
Cable Length (Metric)104.14
Units per Case1000.0
Maximum Bundle Diameter (Metric)19.1
Package Quantity100.0
Minimum Installation Temperature (Celsius)0 Degree Celsius
Operating Temperature Range (Celsius)-40 °C to 85 °C
Solvable FastenerNo
Mil SpecMS3367-4-0
Tape TypeBarricade
Maximum Operating Temperature (Celsius)85.0
Package Quantity UOMEACH
Overall Length (Metric)104.0
ApplicationSecure wire bundling
Cable Tie Base Height4 in
Overall Length (Metric) UOMmm
MIL ApprovalNo
Units per bag100
Cable Length (Imperial) UOMin
Maximum Bundle Diameter (Metric) UOMmm
Cable Length (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Bundle Diameter (Metric)1.6 mm
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Cable Tie Length UOMmm
Solution forLonghaul/Metro Loop Network: Outdoor
MaterialNylon 6/6
Product TypeCable Ties
Minimum Operating Temperature (Fahrenheit) UOMDegree
Cable Length (Imperial)4.0
Flammability RatingUL 94 V-2
TypeStandard
Product ColorBlack
Tensile Strength (Metric)8.17
Tensile Strength (Metric) UOMkg
Cable Diameter Range8,1 - 39,4 mm
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Bundle Diameter0.75 Inch
Plenum RatedYes
UV ResistantYes
Maximum Recommended Voltage Rating600.0
Cable Tie Length101.0
Overall Length (Imperial) UOMin
Halogen FreeYes
Operating Temperature (Celsius)85 Degree Celsius
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Cable Tie TypeMiniature
Maximum Operating Temperature (Fahrenheit)185.0
Overall Width (Imperial)0.1
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Minimum Bundle Diameter0.0625 Inch
Overall Length (Imperial)4.1
Maximum Operating Temperature85 Degree Celsius
Overall Width (Metric) UOMmm
Cable Management ProductsCable Ties
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Insulation Outside Diameter0.145 in
VG ApprovalNo
UL ApprovalYes
