3M Products & Supplies

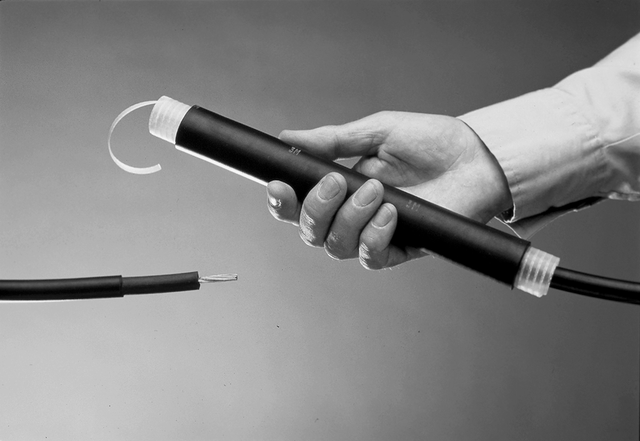

3M™ Cold Shrink Inline Splice 5743, 5/8 kV, 350-1000 kcmil (Cu) or 350-750 kcmil (Al), Cable Insul. O.D. 0.90-2.10, 1/case - 7000140699

SKU: 7000140699
MPN: 7000140699
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007494935
3M ID: 80610592299
5 Digit UPC: 49493
$413.40 each
Hurry up! Current stock:

Product Description

The 3M™ Cold Shrink Splicing Products are designed using the proprietary cold shrink delivery system developed by 3M.

Features

  • RoHS 2011/65/EU Compliant
  • Perfect for splicing non-shielded, wet/dry solid dielectric power cables
  • The rubber mastic filler removes time-consuming penciling of cable insulation
  • Rated for 5/8 kV applications
  • Designed for use with 10000, 11000 and 20000 Series inline compression connectors
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginUnited States
Insulation/Jacket O.D. Range (Metric)22.9 - 53.3 mm
Maximum Conductor Size (Metric)400
Splice TypeInline
Number of Conductors1.0
Typical Splice Length (Metric)381 mm
Maximum Connector Length (Metric)158.8 mm
Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)185 mm² (Aluminum)
Product TechnologyCold Shrink
Insulation Outer Diameter (Imperial)0.9
Cable ShieldingNon-shielded
Conductor Sizes (Imperial)1000 kcmil
Product Series5740 Series
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Voltage5 kV
Insulation Outer Diameter (Imperial) UOMin
Maximum Connector Length6.25 inch
Typical Splice Length15 in
Conductor MaterialAluminum
Maximum Connector Length (Cu or Al)6.25 in
Insulation/Jacket O.D. Range0.90 - 2.10 in
Maximum Connector Length (Cu or Al) (Metric)158.8 mm
Insulation Outer Diameter (Metric)22.86
