3M™ Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²), 10/case - 7000031605

Name: 3M™ Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²), 10/case - 7000031605
Brand: 3M Products & Supplies
SKU: 7000031605
Price: 300.12 USD
Availability: InStock

Sold As: 10-Pack

SKU: 7000031605

MPN: 7000031605

For an accurate lead time please contact us

UPC: 00054007423911

3M ID: 80610921936

5 Digit UPC: 42391

$300.12 ($30.01 / Count)

Hurry up! Current stock:

Quantity:

Product Description

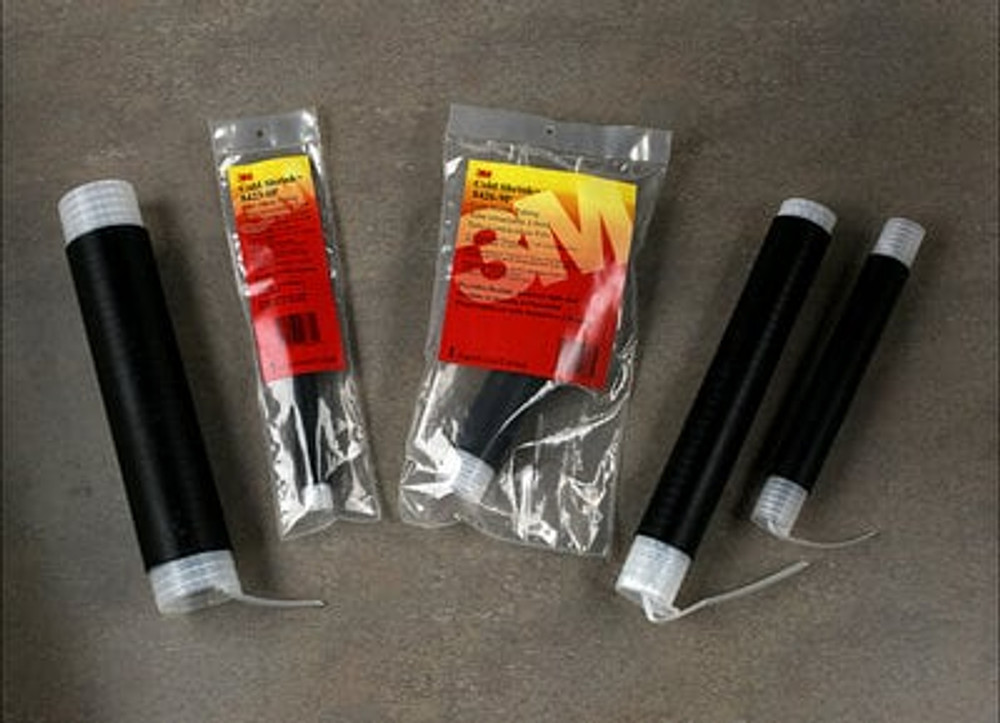

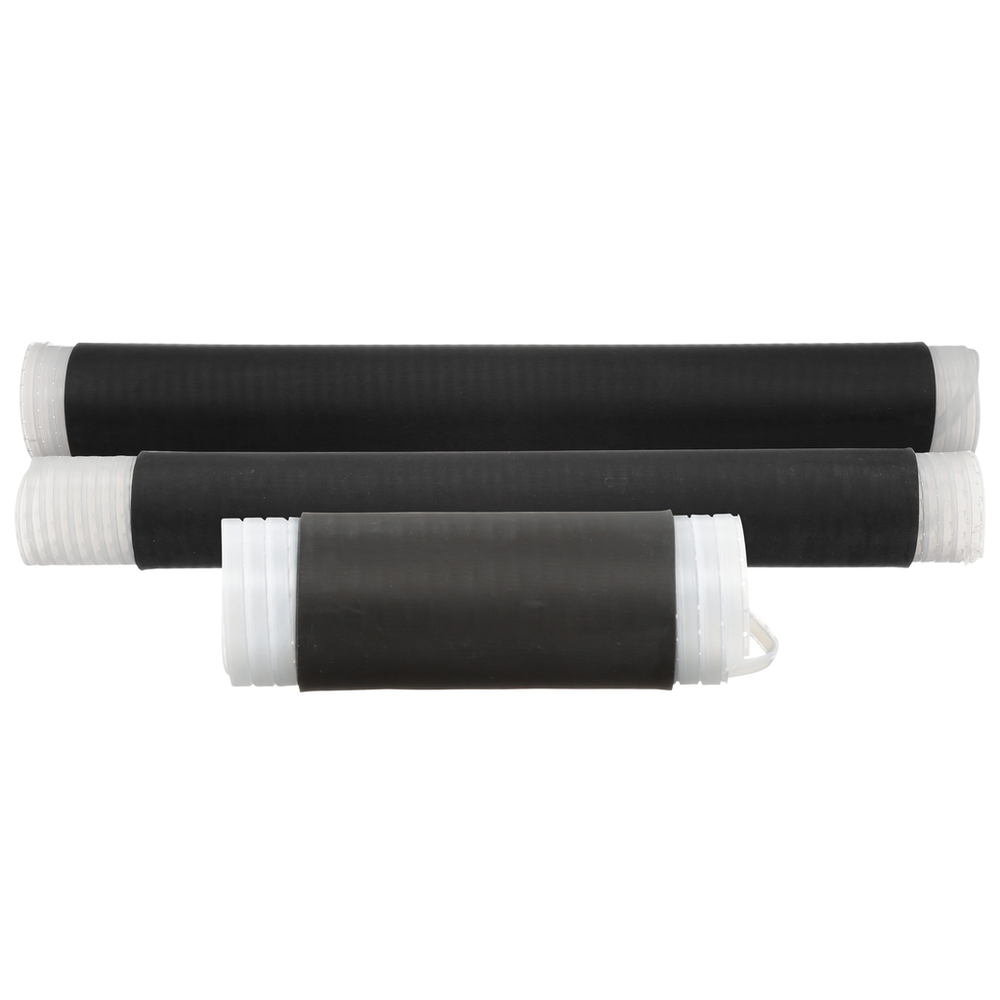

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM, factory-expanded rubber tubes designed with cold shrink technology and loaded on a removable plastic core. To install the connection, position it over the inline connector, pull the loose tab on the plastic core while unwinding the core in a counterclockwise direction, allowing the ends of the tube to shrink and form a secure seal. Engineered for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts, the insulators can be used for indoor and outdoor applications to provide a water-resistant seal. They are easy to install by hand, requiring no additional tools or heating sources. Accommodating a variety of cable sizes, 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series provide physical protection and environmental sealing for terminal lug barrels, conduit coupling, and conduit-to-cable breakouts. These insulators are ideal for direct burial or submersible applications involving communication and other non-electrical operations, such as dig-in and sheath repairs, and secondary splices for both copper and aluminum conductors. They can withstand an operating temperature range between -40 °F to 194 °F (-40 °C to 90 °C) and meet the water seal requirements of ANSI C119.1. When you need dependable insulating properties with long-lasting resiliency, look no further than 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series.

Features

BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)
MULTIPURPOSE: For environmental sealing on terminal lug barrels, conduit coupling, conduit-to-cable breakouts, and more

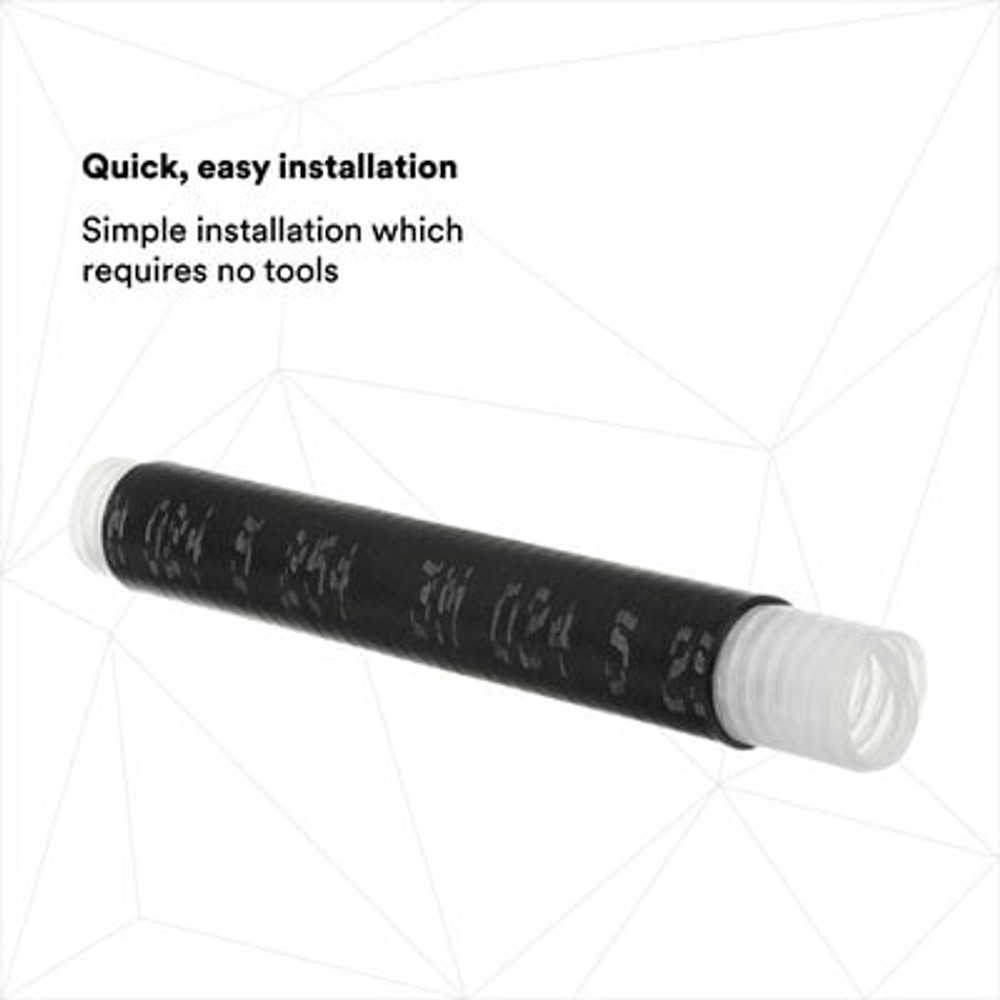

EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand

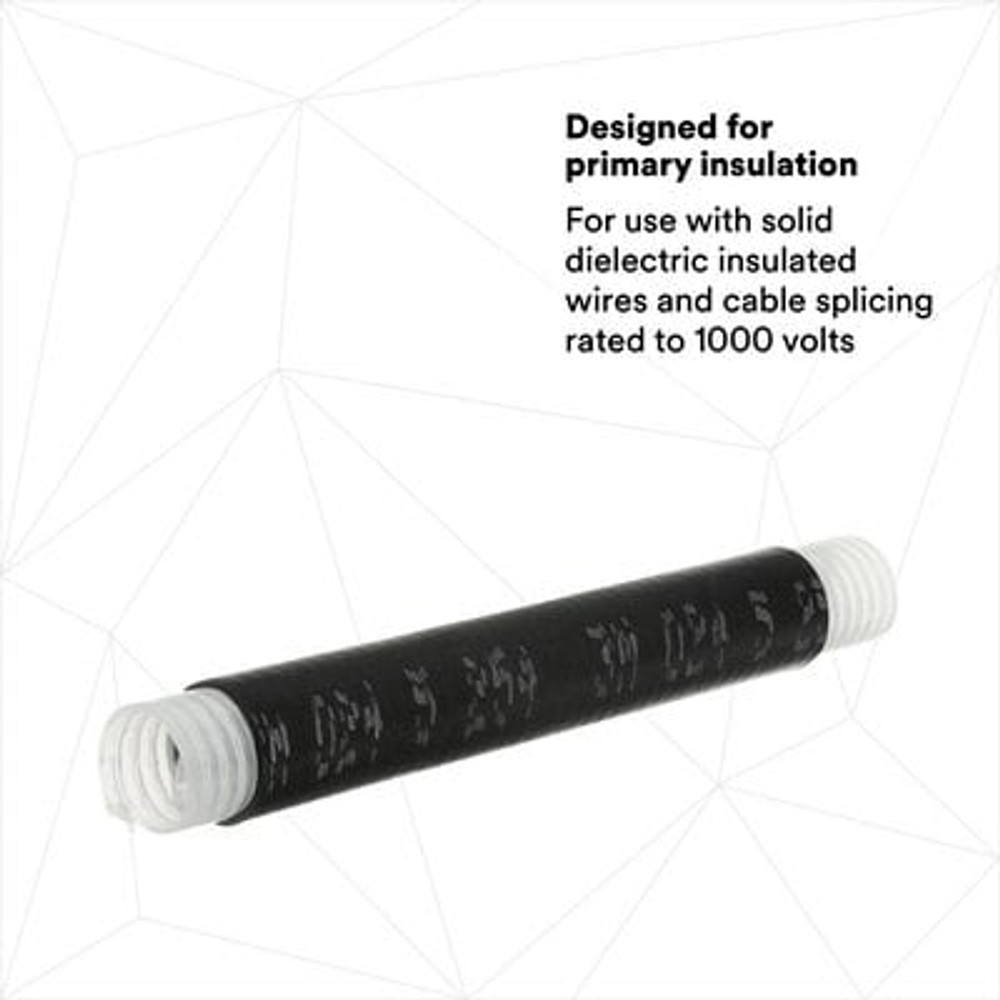

DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts

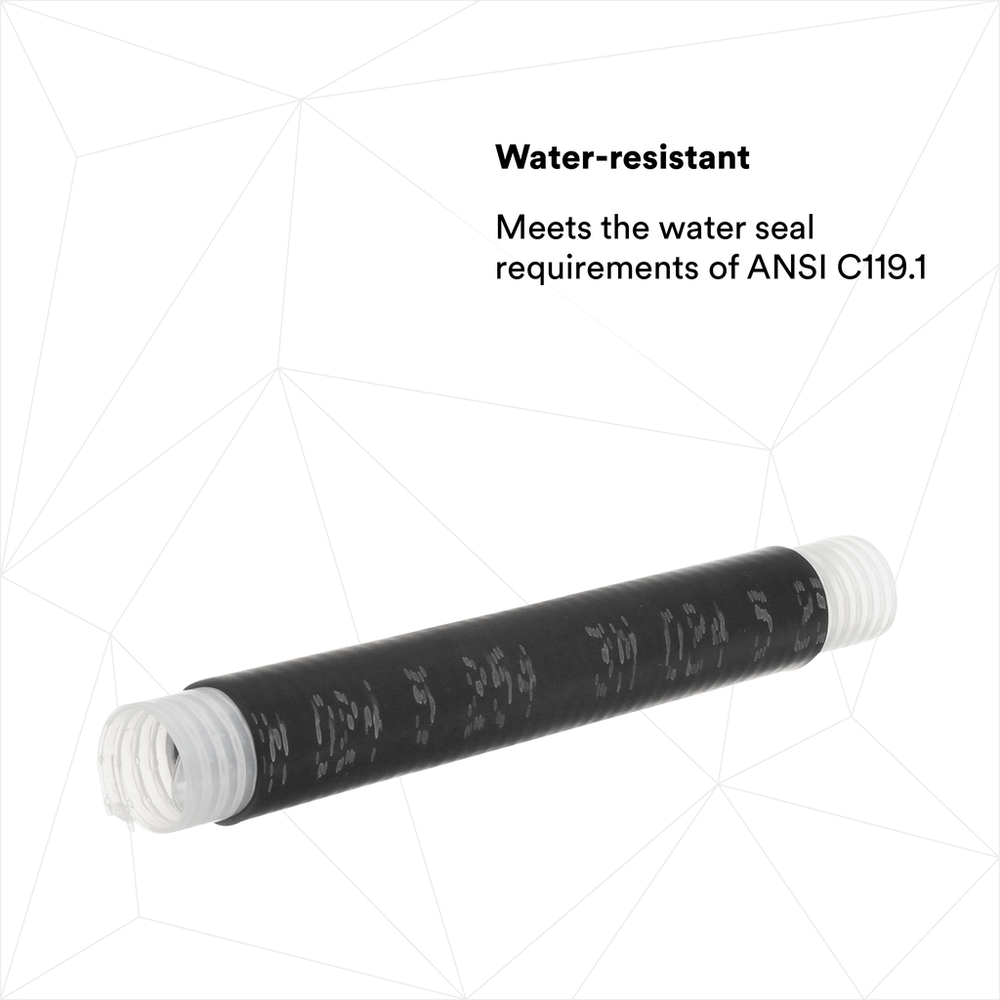

WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1
HIGH-RESISTANCE: Provides excellent wet electrical properties and resists fluid splashes, acids, and alkalis

Spec Sheet

Downloads

Document Instructions

Specifications

Country of Origin	United States
Relaxed Tube Length (Metric) UOM	mm
Splice Type	Cold Shrink
Overall Length (Imperial)	8.0
Maximum Conductor Size (Imperial)	19.93 kcmil
Inner Diameter Before Shrink (Metric)	23.9
Maximum Operating Temperature (Celsius)	90.0
Maximum Operating Temperature (Celsius) UOM	Degree
Inner Diameter After Shrink (Metric) UOM	mm
With Inner Glue	No
Dielectric Strength (V/mil)	365 V/mil
Shrink Ratio	2:1
Maximum Conductor Size (Metric)	10.1 mm²
Overall Diameter (Metric)	23.9
Material	EPDM Rubber
Product Color	Black
Cable Shielding	Non-shielded
Minimum Conductor Size (Metric)	35 mm²
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Minimum Operating Temperature (Fahrenheit)	-40.0
Inner Diameter After Shrink (Imperial)	0.24
Maximum Connector Length (Metric)	76.2 mm
Relaxed Tube Length (Metric)	203.2
Application	Insulation, mechanical protection, repair
Overall Length (Metric) UOM	mm
Minimum Operating Temperature (Fahrenheit) UOM	Degree
Operating Temperature (Celsius)	-40 up to +90°C
Halogen Free	No
Minimum Operating Temperature (Celsius) UOM	Degree
UL Approval	No
Minimum Operating Temperature (Celsius)	-40.0
Number of Conductors	1.0
Overall Diameter (Metric) UOM	mm
Voltage	1 kV
Inner Diameter Before Shrink (Metric) UOM	mm
Model	Cold-shrink
Wall Thickness after Shrinking UOM	mm
Wall Thickness after Shrinking	3.8
Voltage Application	Low Voltage
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Inner Diameter Before Shrink (Imperial) UOM	in
Inner Diameter After Shrink (Imperial) UOM	in
Inner Diameter Before Shrink (Imperial)	0.941
Overall Length (Imperial) UOM	in
Overall Length (Metric)	203.2
Relaxed Tube Length UOM	in
Inner Diameter After Shrink (Metric)	6.1
Product Type	Cold Shrink
Minimum Conductor Size (Imperial)	2 AWG
Maximum Connector Length	3.0 in
Maximum Operating Temperature (Fahrenheit)	194.0
Relaxed Tube Length	8.0
