3M Products & Supplies

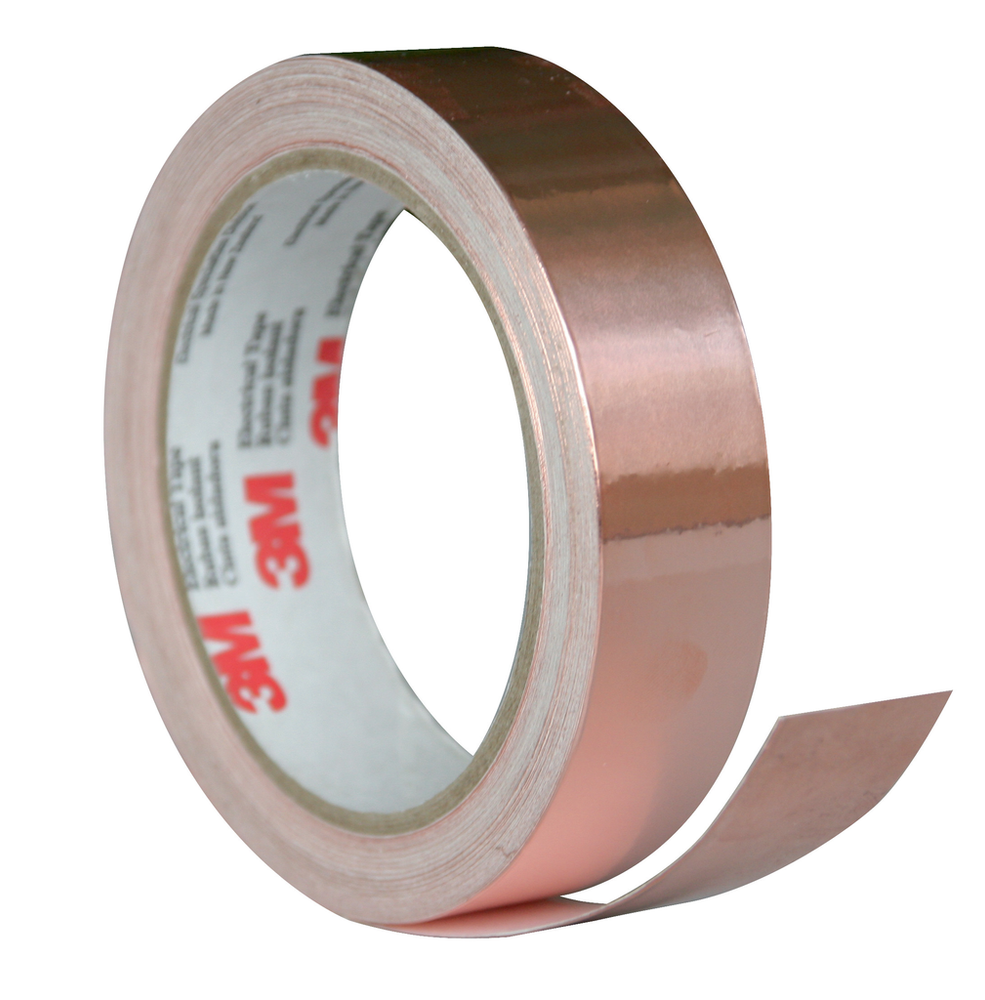

3M™ Copper EMI Shielding Tape 1181, 50 mm x 16,5 m, 4 Rolls/Case - 7100033091

Sold As: 4-Pack
SKU: 7100033091
MPN: 7100033091
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308623135
3M ID: 80000208209
5 Digit UPC: 62313
$685.65 ($171.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Unique adhesive creates secure contact with the application surface
  • Flame-retardant
  • Rated for 600V applications
  • Suitable for EMI shielding, grounding and static charge draining
  • UL Listed and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Length (Metric)16.5
Specifications MetRoHS 2011/65/EU, UL Recognized
Tape GradeProfessional
Elongation at Break20
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialCopper Foil
ApplicationShielding
Maximum Operating Temperature (Celsius)130.0
Shelf Life UOMYear
Tensile Strength (Metric) UOMN/cm
Adhesive TypeConductive Acrylic
Overall Length (Imperial)18.0
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric)50.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)44.0
Total Tape Thickness without Liner (Metric)0.066
Product ColorCopper
Overall Width (Imperial)2.0
