3M Products & Supplies

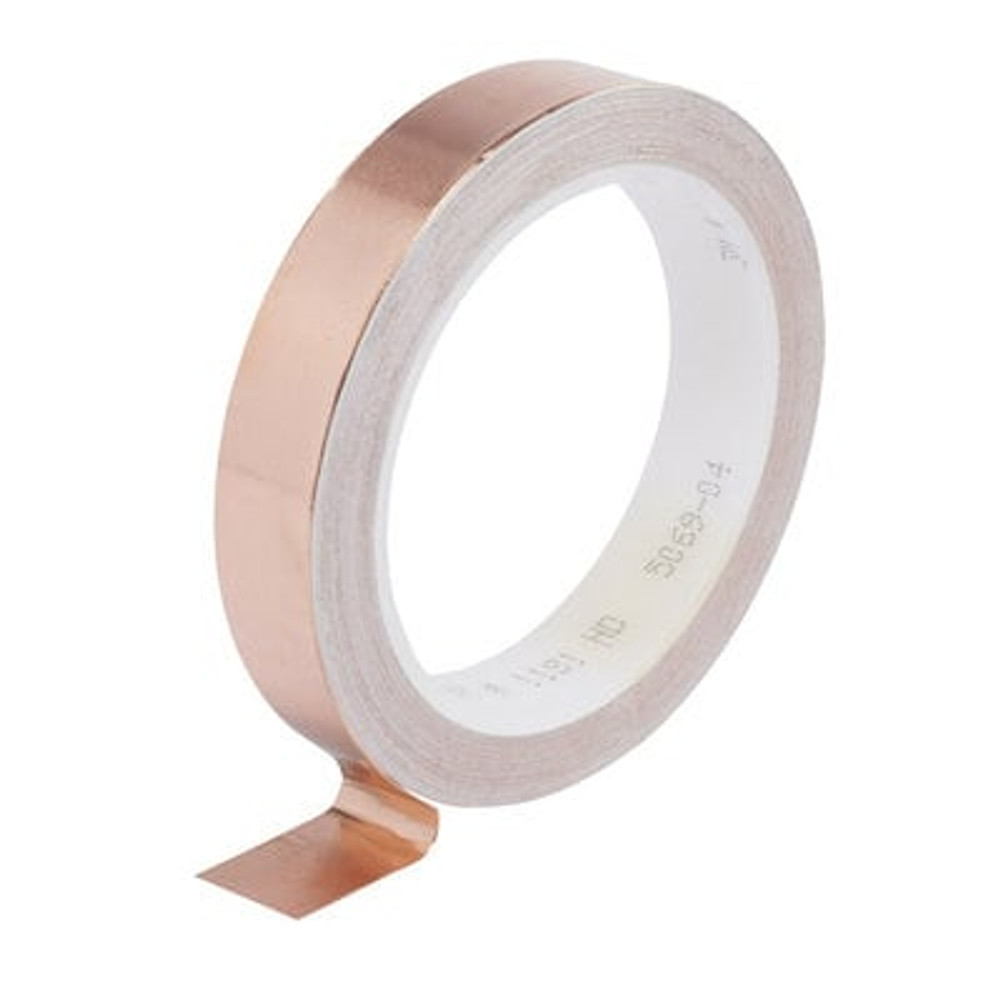

3M™ Copper EMI Shielding Tape 1181, 25 mm x 16,5 m, 9 Rolls/Case - 7100033055

Sold As: 9-Pack
SKU: 7100033055
MPN: 7100033055
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308623173
3M ID: 80000208241
5 Digit UPC: 62317
$771.36 ($85.71 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Rated for 600V applications
  • UL Listed and RoHS 2011/65/EU Compliant
  • Unique adhesive creates secure contact with the application surface
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Width (Imperial) UOMin
Tensile Strength (Metric)44.0
Product ColorCopper
Shelf Life UOMYear
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Elongation at Break20
Overall Width (Imperial)1.0
Overall Width (Metric)25.0
Tape GradeProfessional
Total Tape Thickness without Liner (Metric)0.066
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)16.5
ApplicationShielding
Tensile Strength (Metric) UOMN/cm
Adhesive TypeConductive Acrylic
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU, UL Recognized
Backing (Carrier) MaterialCopper Foil
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)130.0
Overall Length (Metric) UOMm
Overall Length (Imperial)18.0
